43

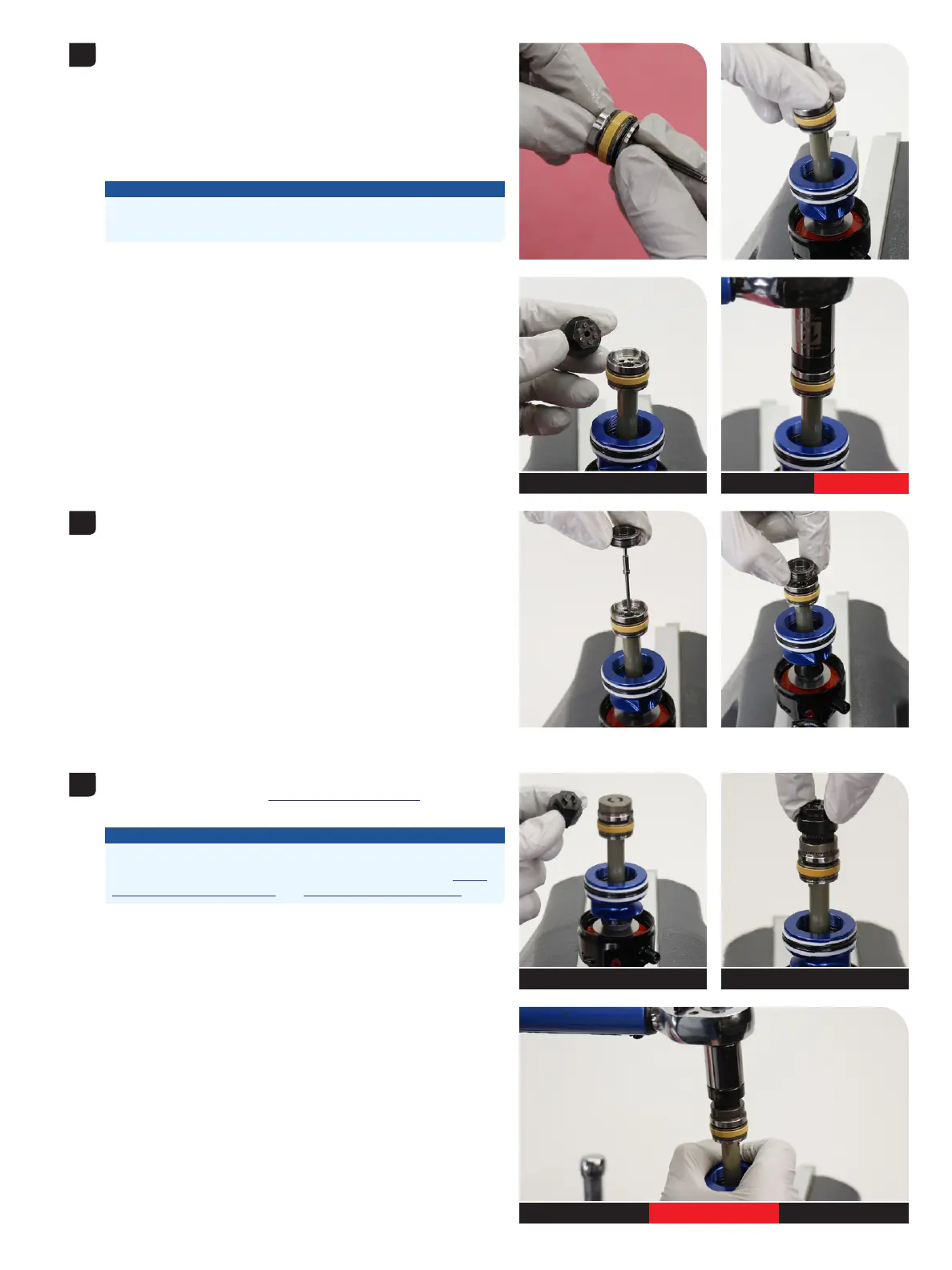

Piston Service
Install the main piston assembly into the damper shaft. Install the main piston assembly into the damper shaft.
The open piston can only be installed one way; rotate the open piston The open piston can only be installed one way; rotate the open piston
until it settles into place on the shaft. Use your fingers to squeeze the until it settles into place on the shaft. Use your fingers to squeeze the
shims and center the shim stack until the rest of the piston assembly shims and center the shim stack until the rest of the piston assembly
settles into place. settles into place.
Tighten the piston bolt.Tighten the piston bolt.
Be sure to keep the main piston assembly parts in the same order.Be sure to keep the main piston assembly parts in the same order.
NOTICE
If the shims are not centered and in the correct order, the shock will
not perform properly.
Install the valve slider and compression poker. Rotate the compression
poker as the o-ring engages until it is seated.
To change the mid-tune or from a two-position to a three-position
damping system, consult the mid-tune valve cup change. Install the
valve cup for your tune.
NOTICE
To change from a 2P to a 3P damping system, or vice versa, requires
a different valve cup and new lever or remote cams. See the Lever
and Remote Damper Change and Mid-tune Valve Cup Change.
15
Piston Tool
Piston Tool /
14 mm Socket
4.5 N·m (40 in-lb)
16
Valve Cup with Piston Tool Piston Tool
17
14 mm 2.3 N·m (20 in-lb) Piston tool
To Next Page
