Air Can Service

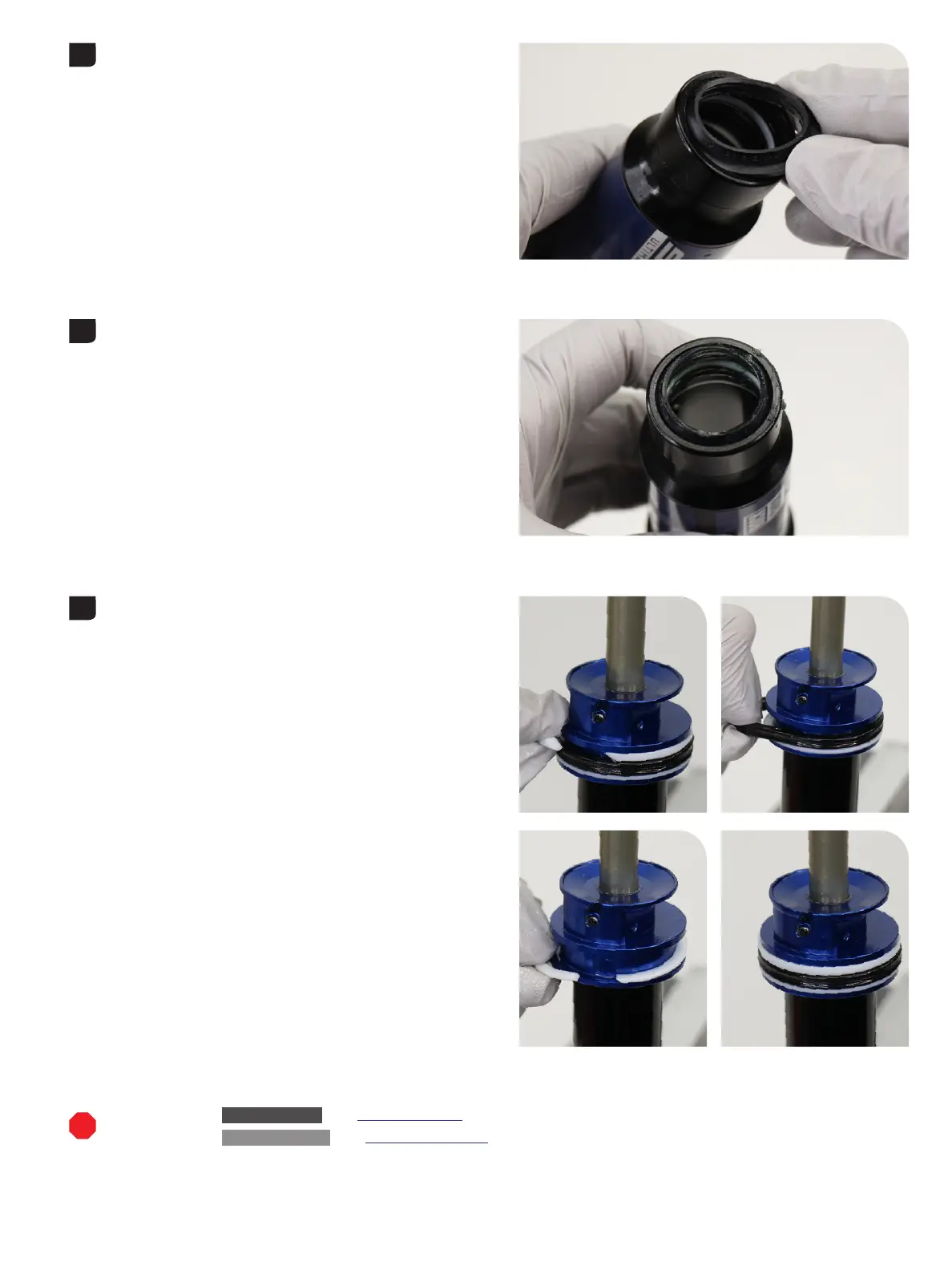

Orient the new wiper seal step side up. Install it into the wiper seal Orient the new wiper seal step side up. Install it into the wiper seal
groove at the top of the air can.groove at the top of the air can.
Apply a small amount of RockShox Dynamic Seal Grease to the quad Apply a small amount of RockShox Dynamic Seal Grease to the quad
seal, backup ring, and wiper seal. seal, backup ring, and wiper seal.
Set the air can aside.Set the air can aside.
Clamp the shaft eyelet vertically in the vise.
Remove the seal head/air piston quad ring seal and glide rings.
Clean the seal head/air piston.
Install a new quad ring seal and glide rings in the following orientation:
the thick glide ring closest to the shaft eyelet, the seal head/air piston
quad ring seal in the middle, and the thin glide ring closest to the
damper body eyelet.
To continue with the 50 Hour Service go to Air Can Installation.
To continue with the 200 Hour Service go to Damper Body Service.
