Backside Remote Installation

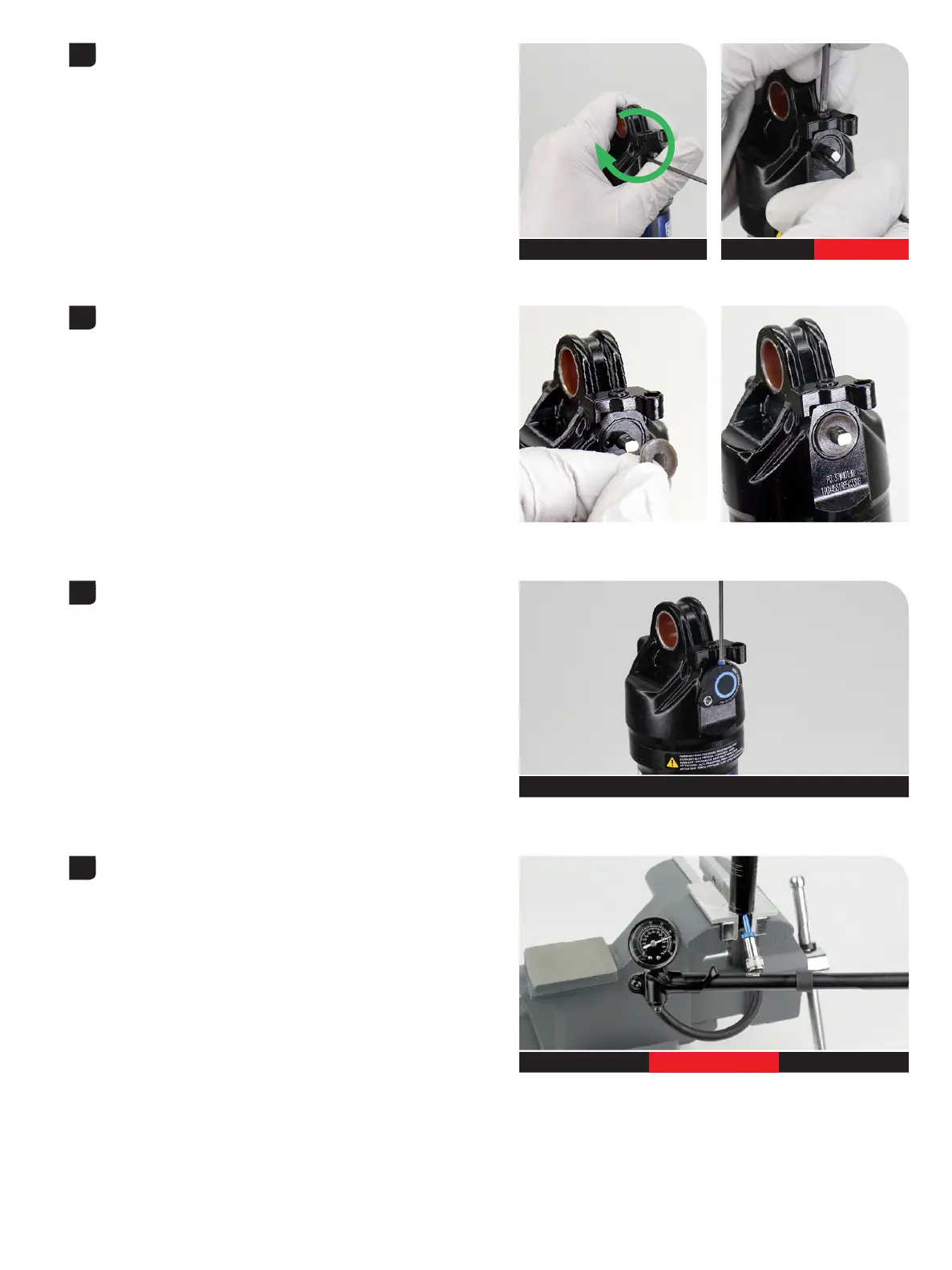

Rotate the preloader 360 degrees clockwise until the hole is aligned
with the hole in the eyelet and cable hanger. Hold in place and install
the cable hanger and cable hanger bolt limit screw.
Install the cam bushing.
Install the remote cable pulley and remote cable limit screw.
Pressurize the damper body.
If you have the proper fill equipment, you may substitute air with
nitrogen.
Once you have pressurized the shock, remove the air valve adapter
tool from the air fill port before removing it from the shock pump.
Separating the pump from the adapter first will cause all of the air to
escape from the shock.
4
2 mm 360° 2 mm / 2.5 mm 1 Nm (8 in-lb)
5
Backside 1.5 mm
6
7
Shock pump 500 psi SIDLuxe adapter tool
