Hardware layout and configuration UM1974
64/82 DocID028599 Rev 7
CN7
15 D23 I2S_B_CK/ SPI_B_SCK PB3
I2S_3 / SPI3
-
17 D24 SPI_B_NSS PA4
19 D25 SPI_B_MISO PB4
2 D15 I2C_A_SCL PB8 I2C1_SCL
Arduino
compatible
4 D14 I2C_A_SDA PB9 I2C1_SDA
6 AREF AREF - AVDD/VREF+
8 GND GND - ground
10 D13 SPI_A_SCK PA5 SPI1_SCK
12 D12 SPI_A_MISO PA6 SPI1_MISO
14 D11
SPI_A_MOSI/
TIM_E_PWM1
PA7
(1)
or
PB5
(1)
SPI1_MOSI/
TIM14_CH1
16 D10 SPI_A_CS/ TIM_B_PWM3 PD14
SPI1_CS/
TIM4_CH3
18 D9 TIMER_B_PWM2 PD15 TIM4_CH4
20 D8 I/O PF12 -
CN10
1 AVDD AVDD - Analog VDD
-
3 AGND AGND - Analog ground
5 GND GND - ground
7 A6 ADC_A_IN PB1 ADC1_IN9
9 A7 ADC_B_IN PC2 ADC1_IN12
11 A8 ADC_C_IN PA2 ADC1_IN2
13 D26 QSPI_CS PB6 QSPI_BK1
15 D27 QSPI_CLK PB2 QSPI_CLK
17 GND GND - ground
19 D28 QSPI_BK1_IO3 PD13
QSPI_BK1
21 D29 QSPI_BK1_IO1 PD12
23 D30 QSPI_BK1_IO0 PD11
25 D31 QSPI_BK1_IO2 PE2
(2)
27 GND GND - ground
29 D32 TIMER_C_PWM1 PA0 TIM2_CH1
31 D33 TIMER_D_PWM1 PB0 TIM3_CH3
33 D34 TIMER_B_ETR PE0 TIM4_ETR
2D7 I/O PF13 -
Arduino
compatible
4 D6 TIMER_A_PWM1 PE9 TIM1_CH1
6 D5 TIMER_A_PWM2 PE11 TIM1_CH2
8D4 I/O PF14 -
10 D3 TIMER_A_PWM3 PE13 TIM1_CH3
12 D2 I/O PF15 -
14 D1 USART_A_TX PG14 USART6

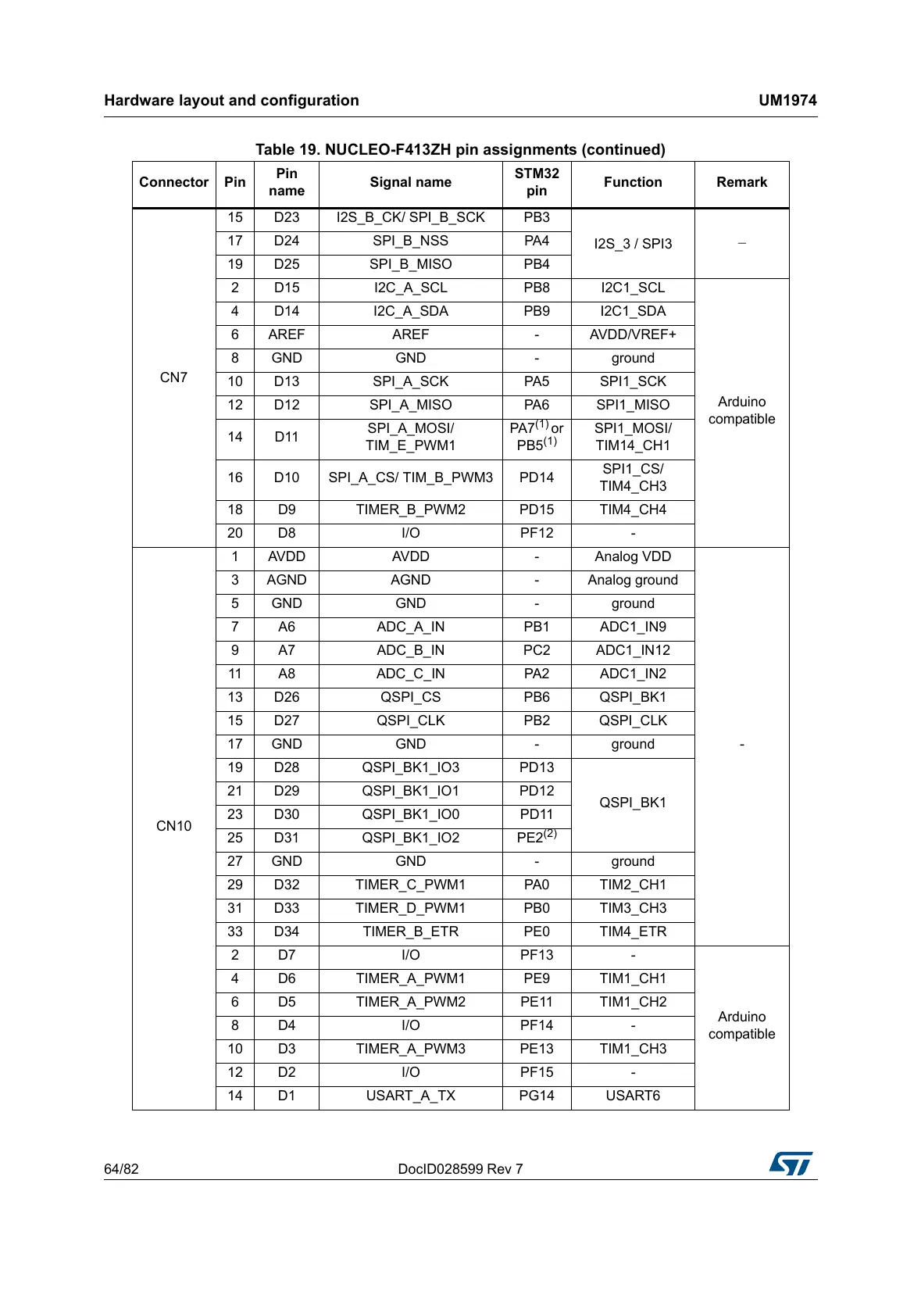

Table 19. NUCLEO-F413ZH pin assignments (continued)
