ST STM32F4DISCOVERY Getting Started

UM1467 Using TASKING
Doc ID 022172 Rev 1 42/46
The list of the supported devices is shown, select STMicroelectronics > STM32F407VG >
STM32F407VGT6 as shown below in Figure 56.

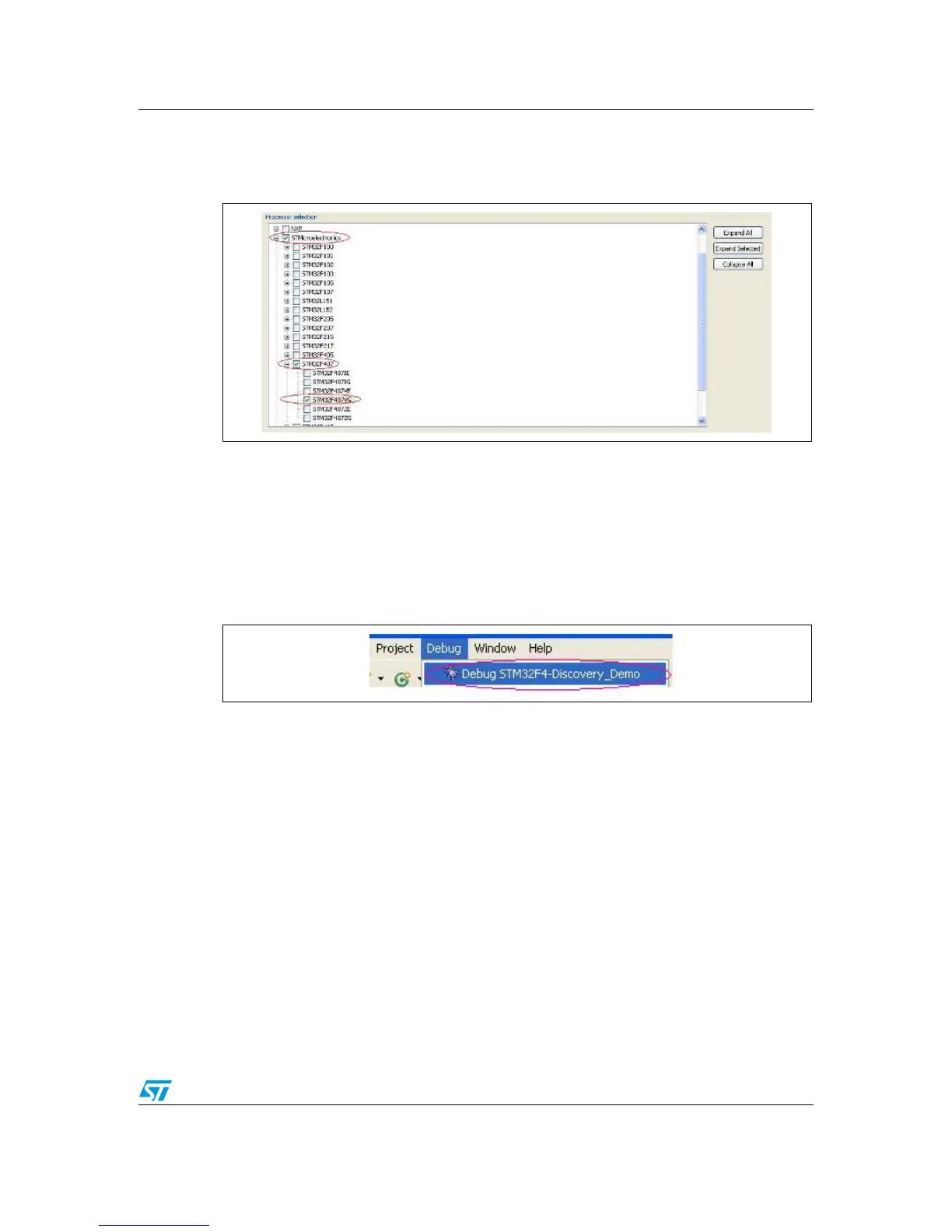

Figure 56. Processor selection
To configure the project for Manta DISCOVERY board, select Debug > Debug
configurations and choose STMicroelectronics STM32F4 Manta Discovery Kit.
Choosing STMicroelectronics STM32F4 Manta Discovery Kit as the evaluation board,
will add automatically the needed linker file and will configure the project as follows:
● Microcontroller: STM32F407VGT6
● Debug probe: ST-LINK
● Connection: Serial Wire Debugging (SWD).
Figure 57. Debug configuration
