Figure 4 and Figure 5 show the locations of these features on the STM32MP135F-DK.

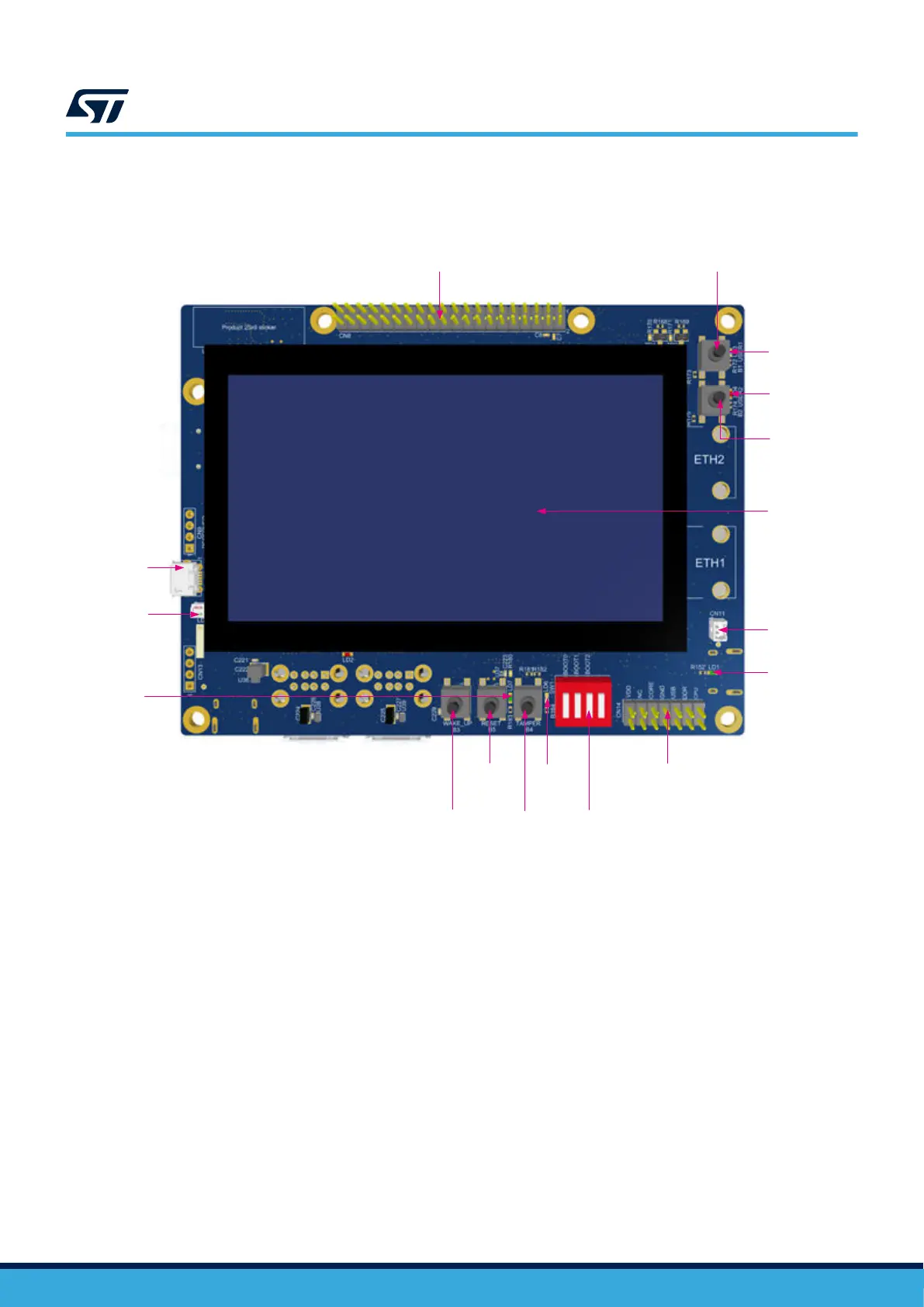

Figure 4. STM32MP135F-DK PCB layout: top side
DT71709V1
40-pin connector
(CN8)
User button 1
(B1)
User LED
(LD3)
User LED
(LD4)
User button 2
(B2)
4.3" LCD display
(U35)
VBAT
(CN11)
5 V power in
(LD1)
Wake up
(B3)
Reset
(B5)
Tamper
(B4)
User
LED
(LD6)
Boot mode
(SW1)
Power measurement
(CN14)
ST-LINK USB
(CN10)
ST-LINK LED
(LD5)
User LED
(LD7)
UM2993
Hardware layout
UM2993 - Rev 2
page 9/42
