Drive Assembly and Control Panel
The IntelliPro
®
drive assembly consists of an operator control panel and the system electronics that
drive the motor. The drive microprocessor controls the motor by changing the frequency of the current
it receives together with changing the voltage to control the rotational speed.
IntelliPro
®
Drive Assembly
IntelliPro
®
Variable Speed Motor Features
• Permanent Magnet Synchronous Motor (PMSM)
• High effi ciency (3450© RPM 92% and 1000 RPM 90%)
• Superior speed control
• Operates at lower temperatures due to high effi ciency
• Same technology as deployed in hybrid electric vehicles
• Designed to withstand outdoor environment
• Totally enclosed fan cooled
• Three-phase motor
• 56 Square Flange
• Six-Pole
• Low noise

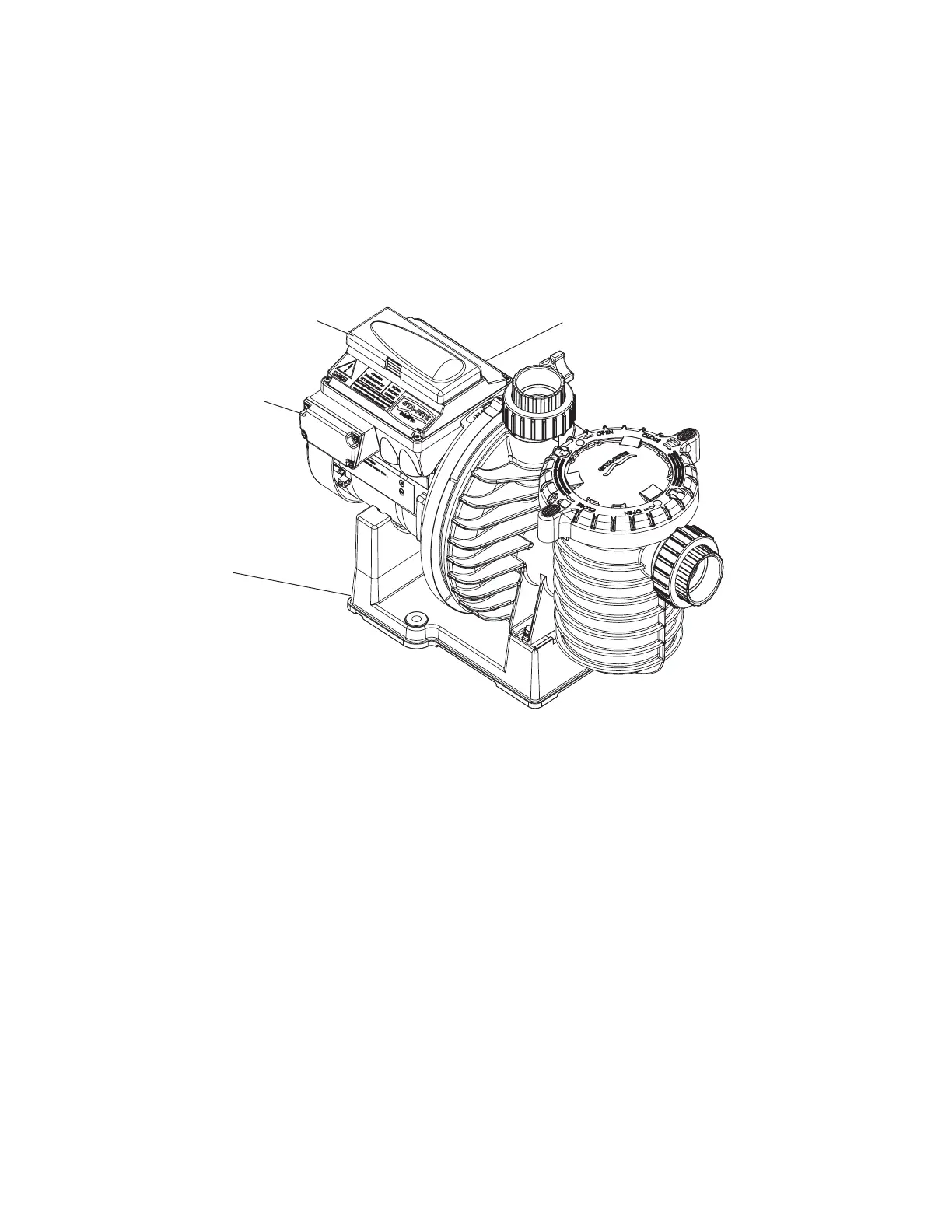

Motor stand
Operator Control Panel,
buttons and LED
Communication port for connection to
EasyTouch, IntelliTouch or SunTouch
control system or IntelliComm
communication center via two-wire RS-
485 cable (P/N 350122)
AC power connection
compartment
(see page 33)
IntelliPro
®
Variable Speed Pump Installation and User’s Guide
3
