External Control with IntelliComm
®
Communication Center
The IntelliPro
®
pump can be remotely controlled by the Pentair Water Pool and Spa IntelliComm
Communication Center using a RS-485 communications cable (P/N 350122). The IntelliComm
provides four pairs of input terminal connections. These inputs are actuated by either
15 - 240 VAC or 15 - 100 VDC. Using the device’s inputs, the programmed IntelliPro
®
pump speeds
can be controlled.
Note: For the IntelliPro
®
pump to accept commands from IntelliComm, the pump must be in the
“Running Schedules” mode (LED above the Start/Stop button lit).
If more than one input is active the highest number will be communicated to the IntelliPro
®
pump. The
IntelliComm will always communicate to pump using ADDRESS #1.
Program number priority is as follows: Example: If programs 1 and 2 are activated, program 2 will
run, regardless of the assigned speed (RPM). The higher program number (2 being higher) will always
take priority. The following table shows the wiring terminal descriptions for IntelliComm.

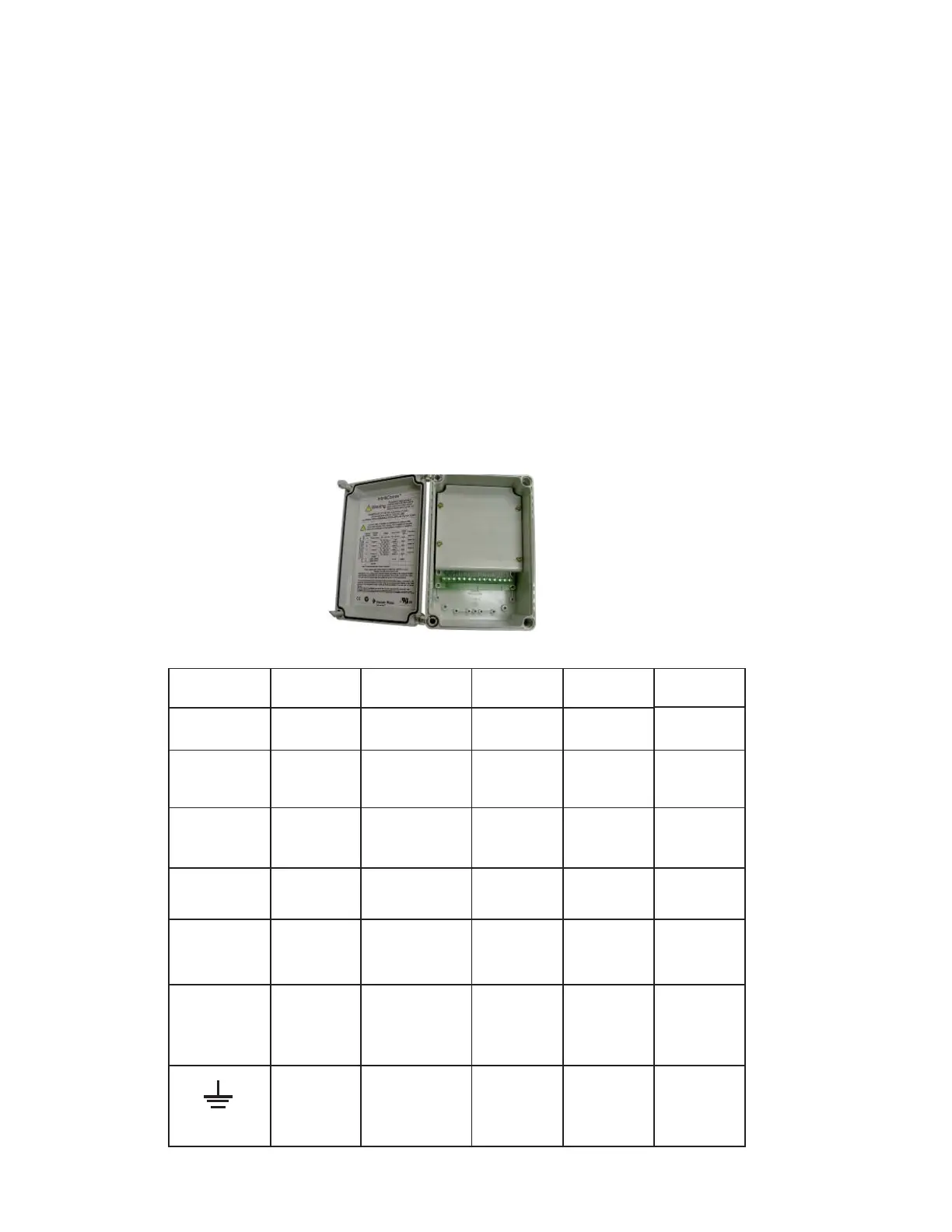

External Control
IntelliComm Communication Center
Terminal
number
Terminal
name
Voltage
Maximum
current
Phase type Frequency
1-2
Power supply
100 - 240 VAC
100 mA
1 Input
50/60 Hz
3-4 Program 1
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input 50/60 Hz
5-6 Program 2
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input 50/60 Hz
7-8 Program 3
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input
50/60 Hz
9-10 Program 4
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input 50/60 Hz
11-12
RS-485
+ Data: Yel-
low
- Data: Green
-5 to +5 VDC
5 mA 1 Output N/A
Ground
22
IntelliPro
®
Variable Speed Pump Installation and User’s Guide
