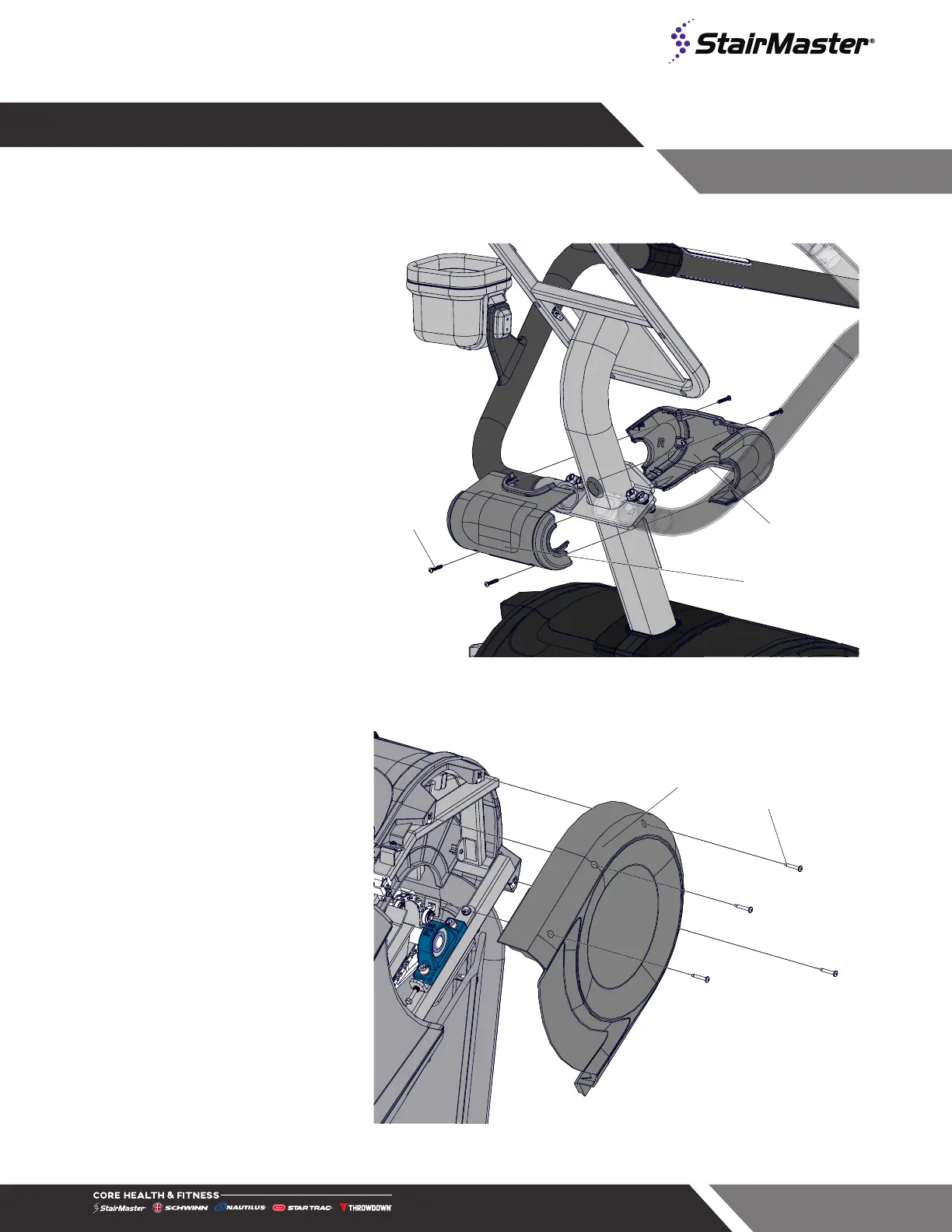

25. Use a #2 phillips screwdriver to
secure the mast 711-4135-XX
shroud around the mast 711-
4135-XX and handrails using four
(4) pieces of the #8-18, 3/4” pan
head machine screw.
FRONT MAST
SHROUDS
110-3402
REAR MAST
SHROUDS
Fig. 21
26. Use a #2 phillips screwdriver to
secure the upper right side shroud
020-8110-XX to the frame using
five (5) pieces of the M5 x 30mm
pan head machine screw 110-
4229.
27. Repeat for the upper left side
shroud 020-8111-XX.
020-8110-XX
110-4229
Fig. 22
