Page 20
Console installation instructions are for the LCD console 700-0538-XX only.
For other consoles, refer to their owner’s manual for installation instructions on a G/FC Frame.

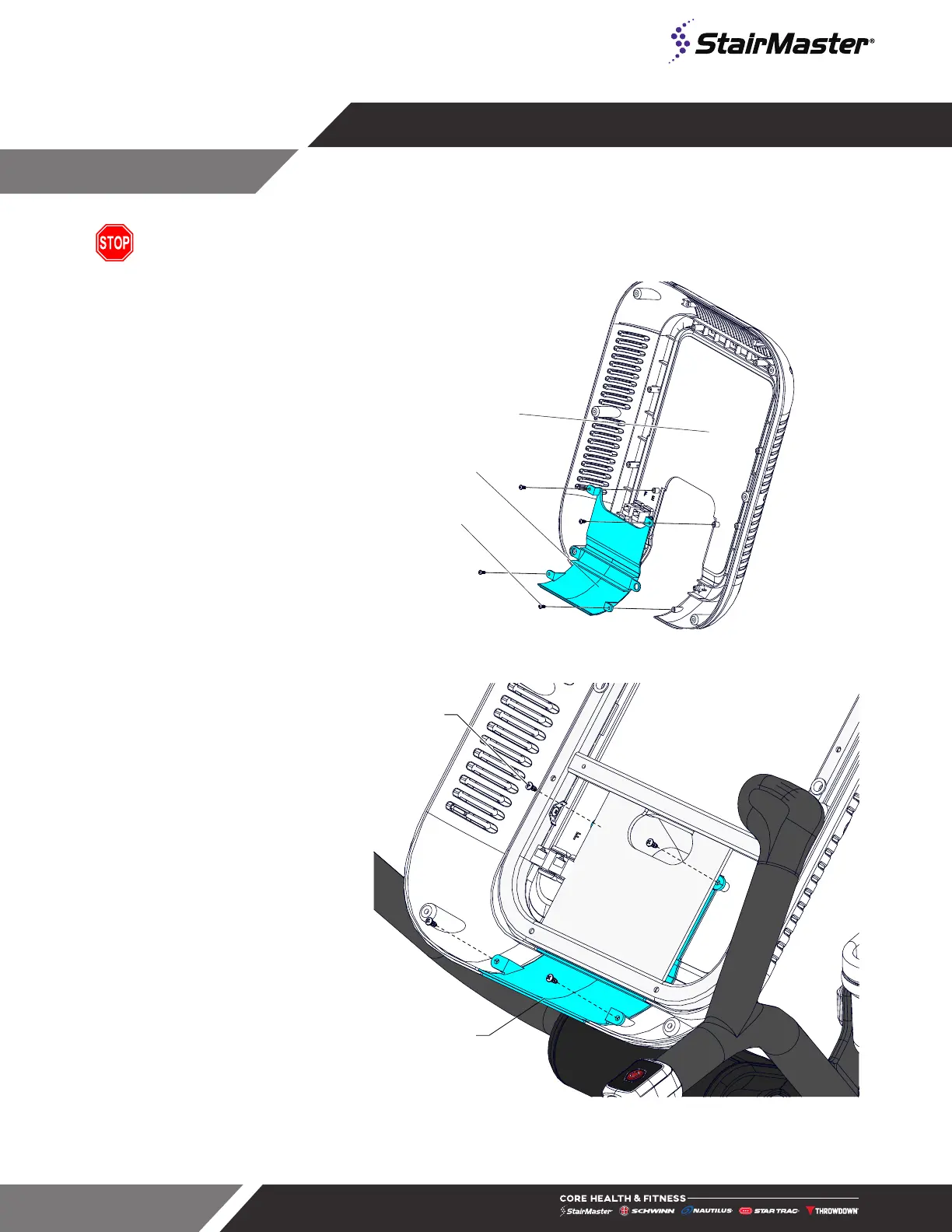

28. Unpackage console from box,
then separate rear shroud from
console.
29. Use a #2 phillips screwdriver to
remove the rear console panel
from the rear console shroud, then
install the rear console shroud to
the mast 711-4135-XX.
020-7923-XX
020-7927-XX
731-0584
Fig. 23
30. Use a #2 phillips screwdriver to
secure the rear console panel to
the rear console shroud using the
screws 731-0584 removed in Step
30.
731-0584
020-7927-XX
Fig. 24
