Page 21

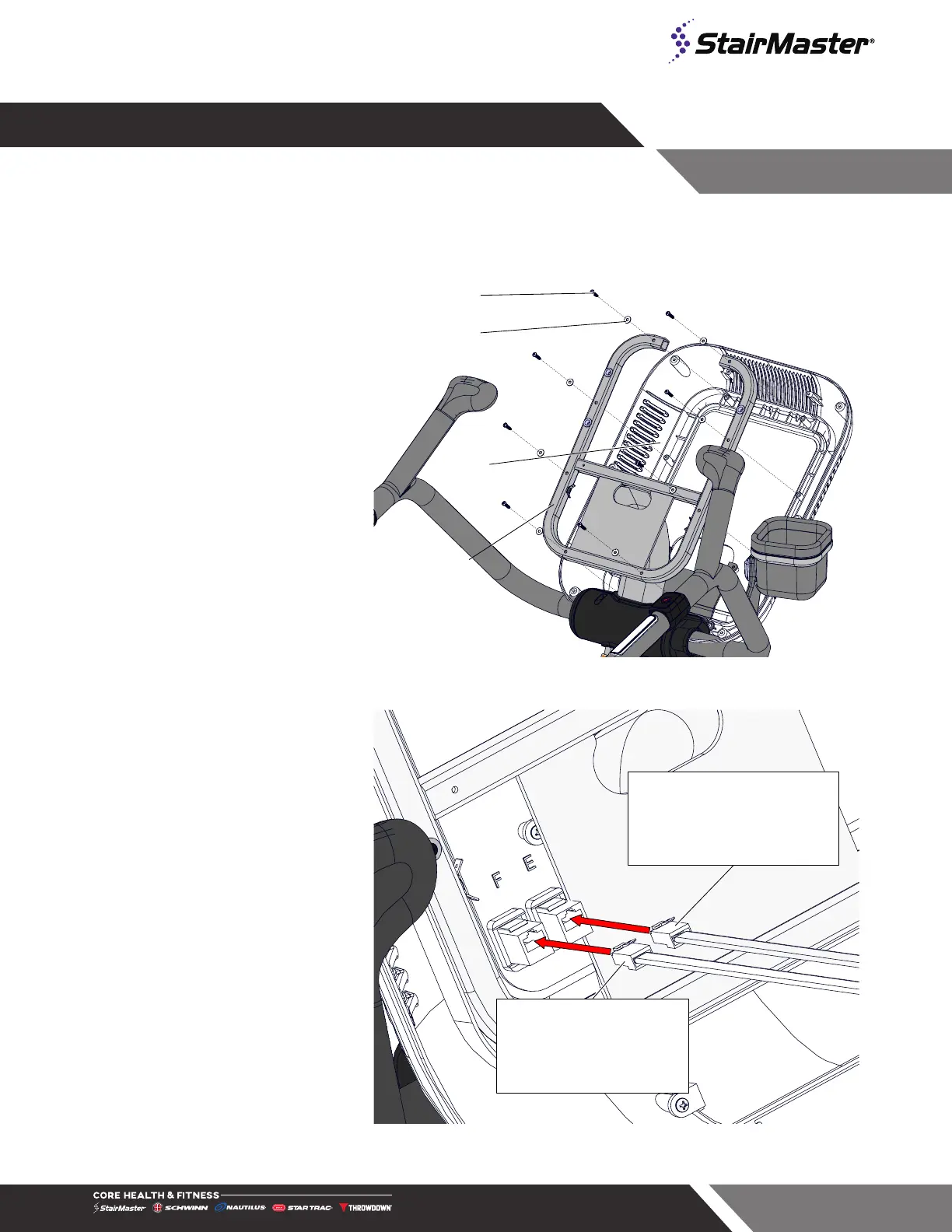

31. Use a #2 phillips screwdriver to
secure the rear console shroud to
the mast 711-4135-XX using eight
(8) pieces of the #8-18, 3/4” screw
110-3402 and eight washers 120-
3307.
701-0454-XX
711-4135-XX
120-3307
110-3402
Fig. 25
32. Install the Power cable 701-0246
and CSAFE cable 701-0245 from
the console into the corresponding
connections in the rear console
shroud.
CSAFE from
Console
Power from
Console
Fig. 26
