Page 22

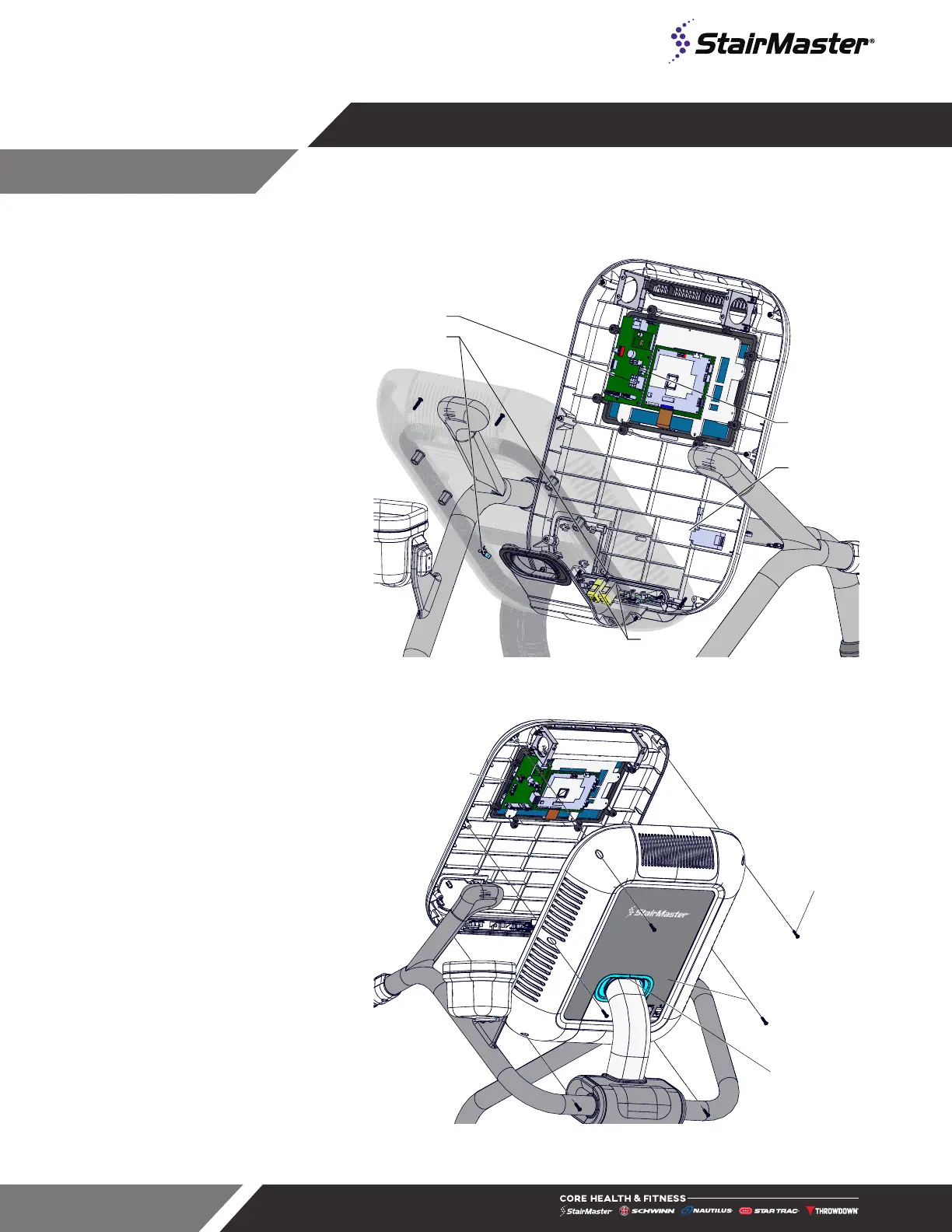

33. Connect the following cables as
shown:
Data Cable 411-4119
Heart Rate cable 411-4139
Keypad Cable 220-0328
Grounding Cable 701-0357
220-0328
711-4119
711-4139
701-0357
711-4118
Fig. 27
34. Use a #2 phillips screwdriver to
secure the front of the console to
the rear console shroud using six
(6) pieces of the #8-18, 3/4” screw
110-3402.
35. Install the console grommet
020-8149.
36. Installation is complete.
701-0325-XX
020-8149
701-0454-XX
110-3402
Fig. 28
To Next Page
