Step 11. Remove the inlet filter and transfer
pump insert retaining spring. Remove the
Transfer pump insert by pulling straight up on
it with TP insert removal tool 36270. Remove
and discard the 2 o-ring seals.
Step 12. Using a T-10 bit, loosen and remove
the fuel control locking screw and plate from the
hydraulic head assembly.
Step 13. Using a 1/4” nut driver remove the
two terminal caps from the solenoid connector
assembly. Remove the solenoid connector as-
sembly from the solenoid. Using solenoid span-
ner wrench 30853, loosen, but do not remove,
the fuel control solenoid assembly.

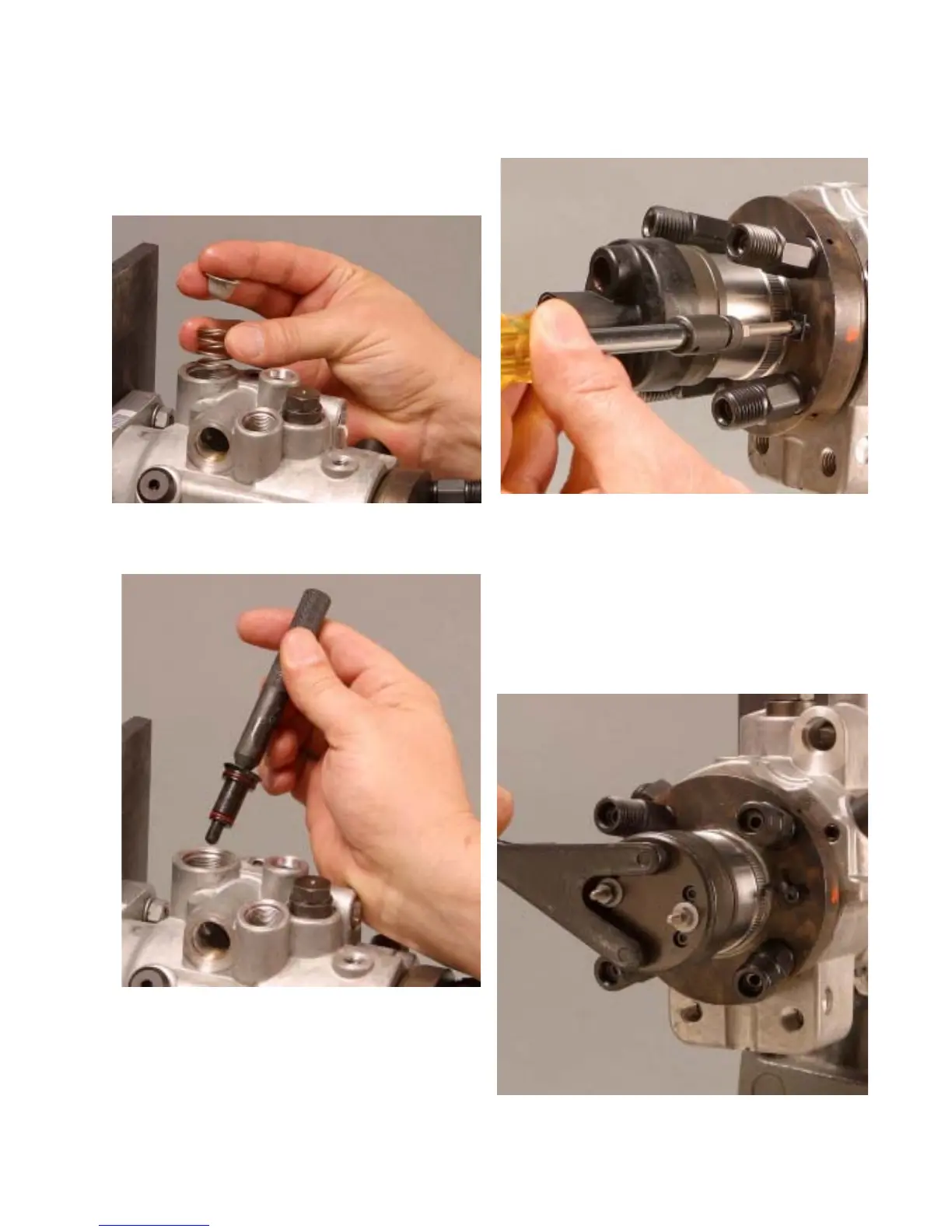

Fig. 2.11a
Fig. 2.11b
Fig. 2.12
Fig. 2.13
