C. Special Test Bench Removal Instructions
Disassemble the drive and mounting hardware in the
reverse order that was described in Test Bench Mount-
ing Instructions. Use the 36275 Timing Pin to prevent
the pump drive from rotating when loosening the drive
retaining nut.

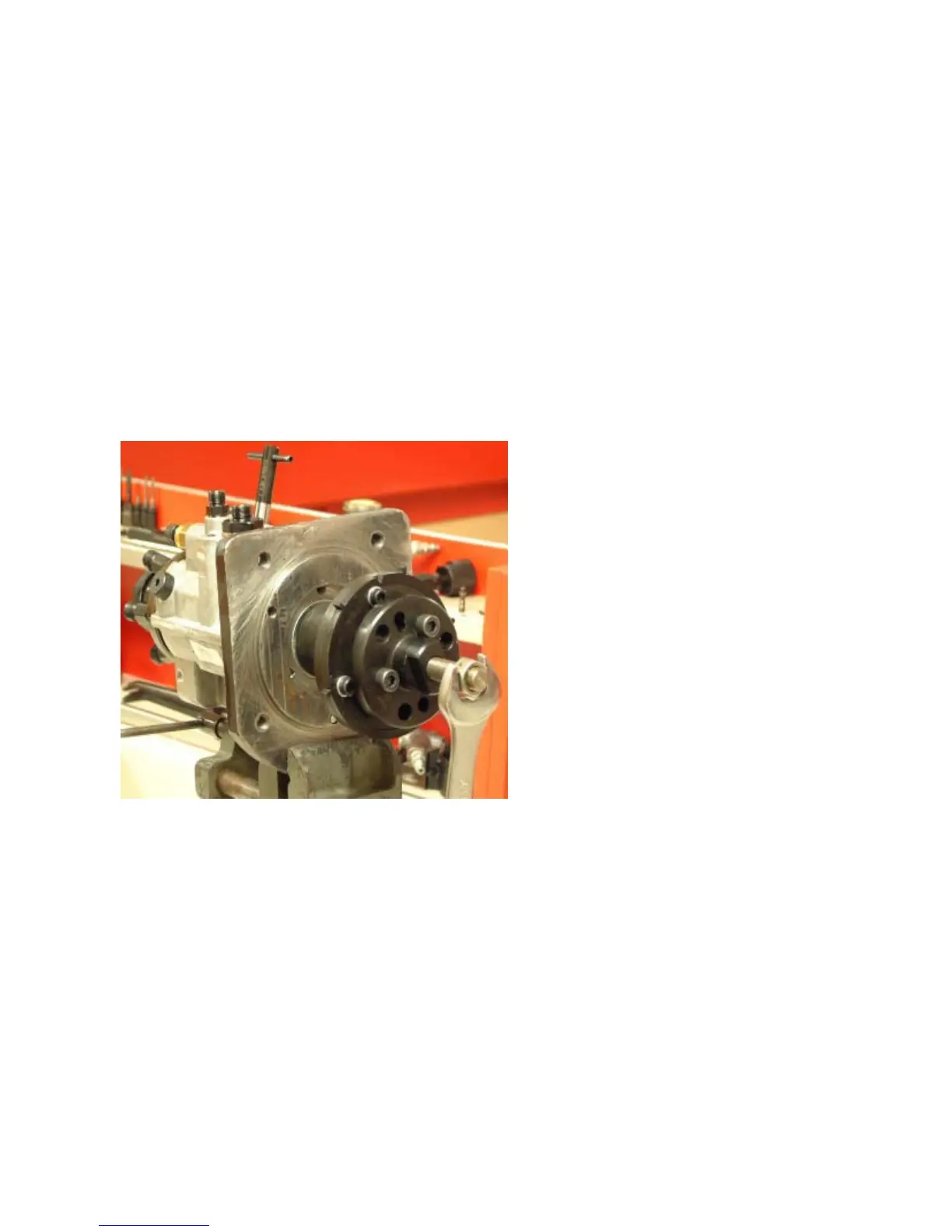

After removing the 24mm drive shaft retaining nut, use
the 30856 puller to remove the drive adapter from the
drive shaft.
49
Fig. 5.8
(large tube) and the return oil line to the return oil
fitting (smaller tube).
Step 16. Connect the wire harness for the 36269 DE
Calibration Package.
