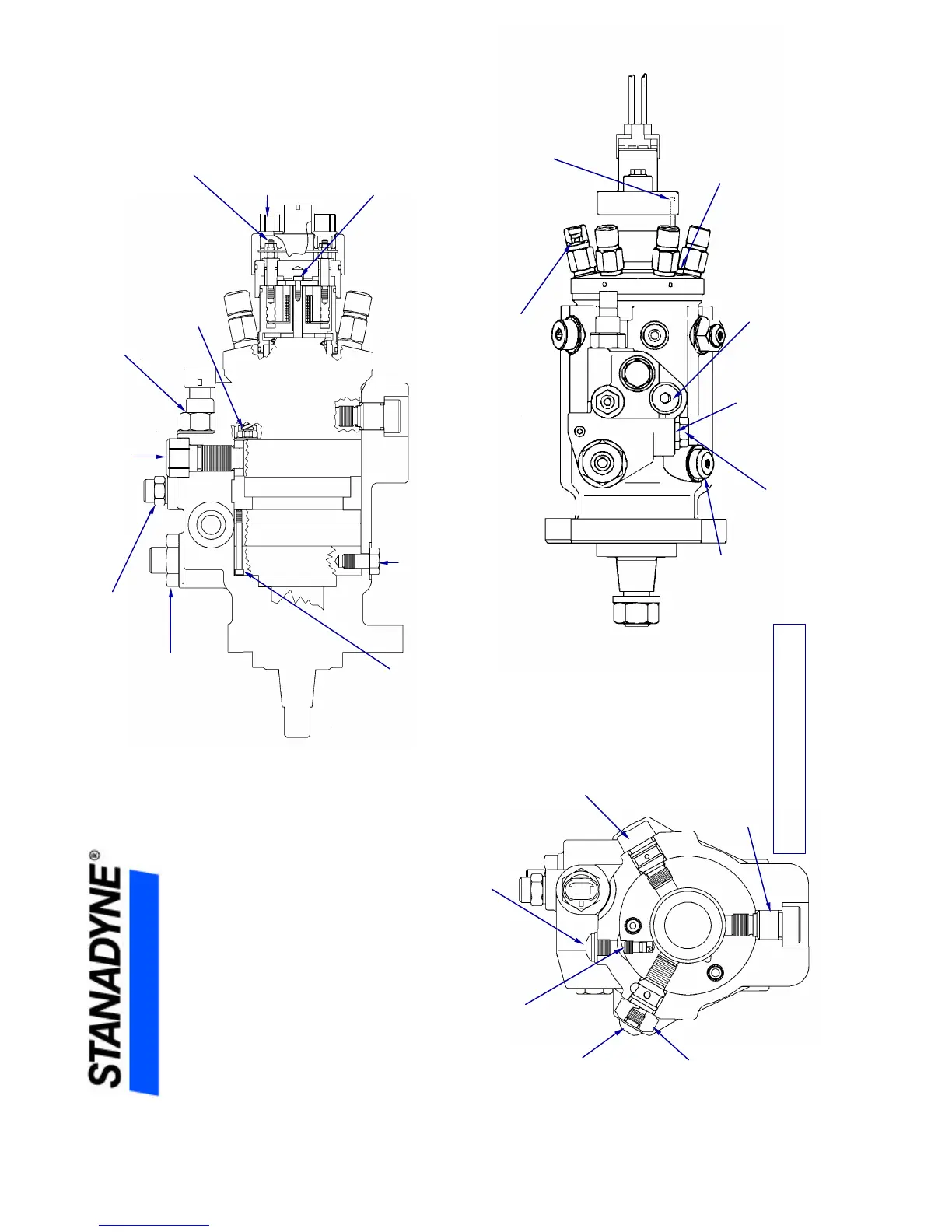

Stanadyne DE - TORQUE SPECIFICATIONS

Snubber Screw (4 or 6)
40 - 60 lbf.-in.
(4.5 - 6.8 N•m)
Armature Cover
Retaining Screw (4)
15 - 18 lbf.-in.
(1.7 - 2 N•m)
Solenoid Locking
Plate Screw
15 - 18 lbf.-in.
(1.7 - 2 N•m)
Timing Pin Plug
75 - 100 lbf.-in.
(8 - 11 N•m)
Transfer Pump
Porting Screw
140 - 160 lbf.-in.
(16 - 18 N•m)
TP Regulator Assy
215 - 265 lbf.-in.
(24 - 30 N•m)
TP Regulator Plug
180 - 220 lbf.-in.
(20 - 25 N•m)
TORQUE
SPECIFICATIONS
Model DE
Electronically Controlled
Diesel Fuel Injection Pump
Stanadyne Corporation, 92 Deerfield Road, Windsor, CT 06095, U.S.A.
99822 Tel: (860) 525-0821; Fax: (860) 683-4581; www.stanadyne.com 4/03
Head Locking Screw
180 - 220 lbf.-in.
(20 - 25 N•m)
TP Pressure Tap
Screw
110 - 130 lbf.-in.
(12.4 - 14.7 N•m)
Head Locating Screw
180 - 220 lbf.-in.
(20 - 25 N•m)
Vent Screw Assembly Access Screw
60 - 70 lbf.-in.
(6.8 - 7.9 N•m)
Vent Screw Assembly
25 - 30 lbf.-in.
(3 - 3.5 N•m)
Head Locking Screw
180 - 220 lbf.-in.
(20 - 25 N•m)
Note: Tighten Head Locating Screw First,
then Head Locking Screws
Inlet Connector
215-235 lbf.-in.
(24-26 N•m)
Housing Pressure
Regulator
120 - 160 lbf.-in.
(13 - 18 N•m)
Cam Pin Screw
880 - 920 lbf.-in.
(99 - 104 N•m)
Temperature Sensor
120 - 160 lbf.-in.
(13 - 18 N•m)
Accumulator
Retaining Screws (2)
90 - 110 lbf.-in.
(10.2 - 12.4 N•m)
Terminal Studs (2)
24 - 28 lbf.-in.
(2.5 - 3 N•m)
Transfer Pump
Clamping Screws (7)
10-14 lbf.-in.
(1-1.5 N•m)
Transfer Pump Locking Screw
220 - 240 lbf.-in.
(25 - 27 N•m)
Not
Serviceable
Terminal Caps (2)
12 - 18 lbf-inches
(1.5 - 2.0 N•m)
