SECTION 4 - REASSEMBLY

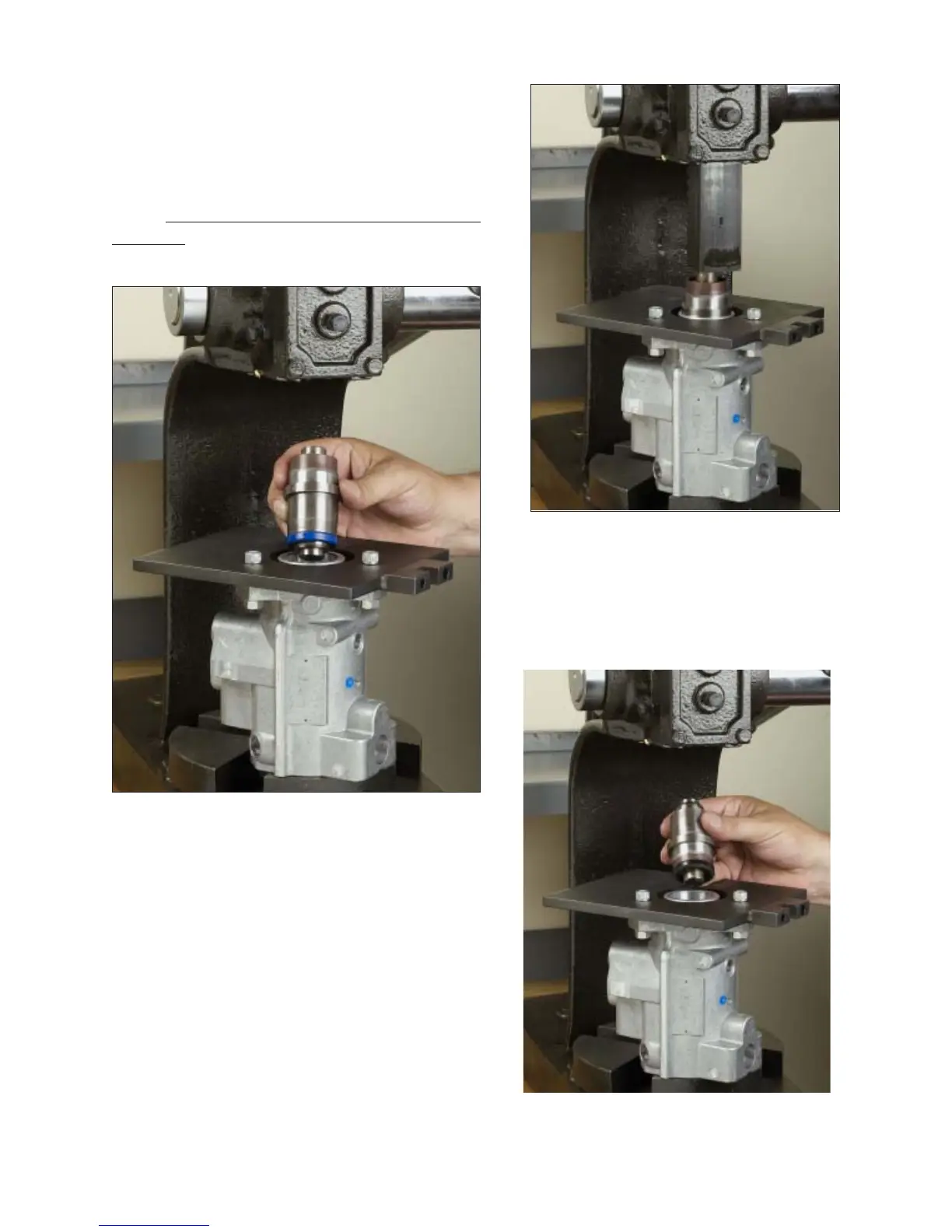

Step 1 Place pump housing on the arbor
press with the mounting flange facing upwards.
Drop the fuel side drive shaft seal into the drive
shaft bore of the housing with the seal lip facing
down. Do not lubricate seal or housing bore at
this time. The fuel side seal is to be pressed in
dry.
Step 2 Insert drive shaft seal and bearing
installation tool 33421, end opposite the remov-
able collar first, into the bore. Press seal until
tool bottoms on the housing.
Step 3 Place the oil side seal onto the re-
movable collar of the 33421 tool. Apply a light
coating of 30465 grease to the bore.
Fig. 4.1
Fig. 4.2
Fig. 4.3
28
