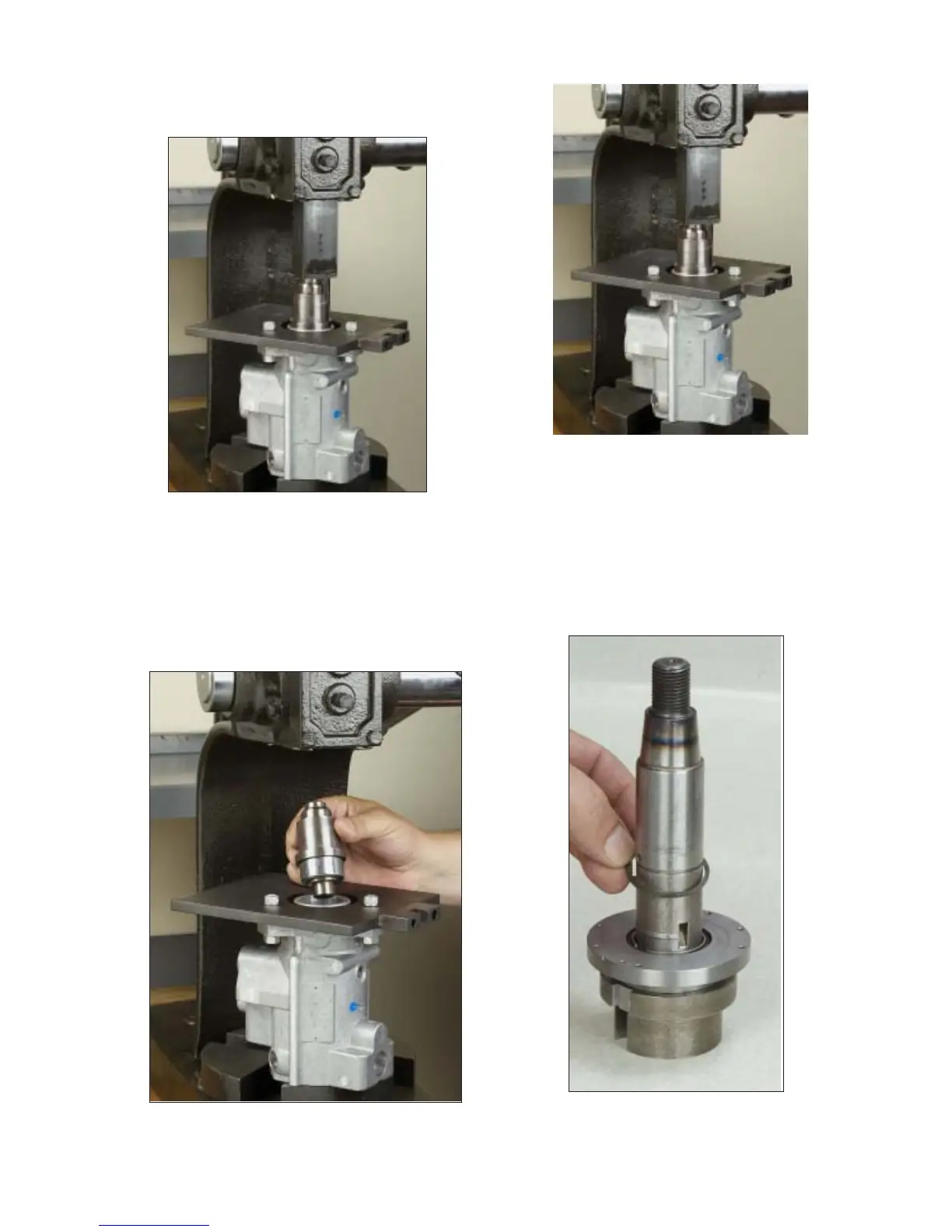

Step 4 Press seal in until the tool bottoms
on the housing.
Step 5 Remove collar from the 33421 tool.
Place drive shaft bearing onto the tool where
the collar was removed with the bearing part
number facing the tool shoulder. Press bearing
into housing bore until the tool bottoms on the
housing.
Step 6 Install the bearing retainer onto the
drive shaft so that the sealing ring will be facing
up. Install a new o-ring seal and then the seal-
ing ring into the groove on the inner bearing re-
tainer. Be sure to orient raised section on the
inside diameter of the ring with the notch in the
bearing retainer.
29
Fig. 4.4
Fig. 4.5a
Fig. 4.5b
Fig 4.6
