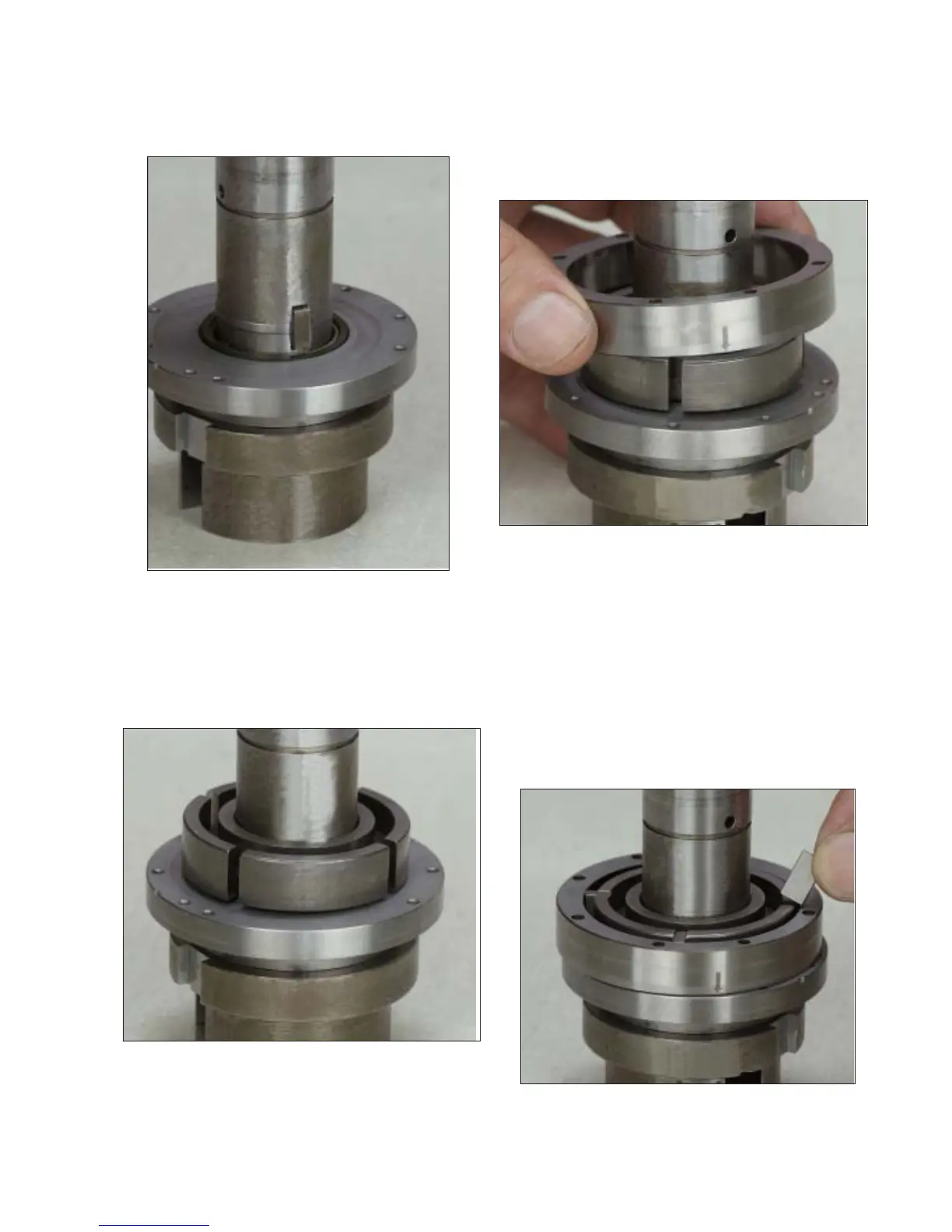

Step 8 Slide the transfer pump blade car-
rier, counter bore facing up, down over the
drive shaft aligning it with the woodruff key.
Step 9 Place the transfer pump liner, with the
arrow facing down, onto the inner bearing re-
tainer. Rotate the liner to align the seven holes
in it with the seven holes in the inner bearing
retainer.
Step 10 Install the four transfer pump blades
into the slots in the blade retainer. Push the
blades out against the liner. Used blades should
be reinstalled in the same orientation as they
were removed. NOTE: 0.001” oversize (black-
ened) blades are available and may be inter-
mixed with standard size blades as necessary.
If oversized blades fit the blade carrier slots in
the blade retainer freely, they should be used.
30
Fig. 4.7
Fig. 4.8
Fig. 4.9
Step 7 Apply a small amount of Lubriplate
grease to the woodruff key: then install the woo-
druff key into its cutout in the drive shaft.
