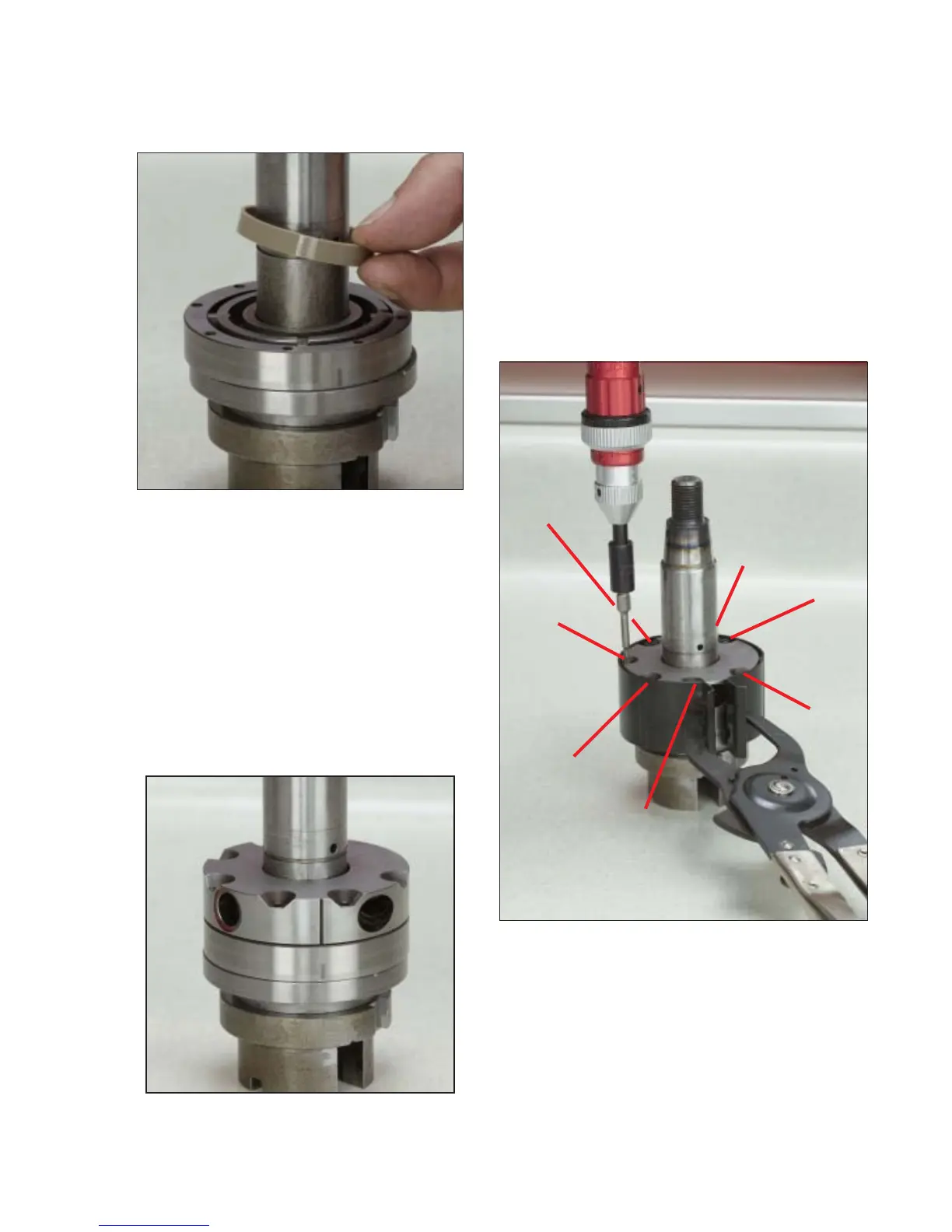

Step 11 Squeeze the transfer pump blade
spring and insert it between the blades and re-
tainer.
Step 12 Apply a small amount of 30465
Lubriplate grease to the seal groove in the trans-
fer pump porting plate. Install a new o-ring and
the original sealing ring, if still serviceable, into
the groove making sure to align the tab of the
ring with the notch in the plate. Invert the plate
and carefully slide it down the drive shaft. Be
sure that the sealing ring and the seal do not
become dislodged from the groove. Rotate the
porting plate until its 7 holes are aligned with
the 7 holes in the liner.
Step 13 Install the 7 transfer pump assembly
screws finger tight. DO NOT tighten screws at
this time.
Step 14 Place the clamping ring of the 30855
compression tool around the transfer pump as-
sembly and install the 30855 pliers. Squeeze
the pliers to compress the ring which aligns the
transfer pump components. Tighten the 7 screws
in the sequence shown to 10 – 14 lbf-inches
(1.1-1.5 N-m) using a T-10 bit. Repeat the tight-
ening sequence a second time.
Step 15 Using tool 30848 and a soft faced
hammer, install the roll pin with the opening in
the pin in line with the drive shaft but facing away
from the transfer pump components.
Fig. 4.11
Fig. 4.12
31
Fig. 4.14
1
2
3
4
5
6
7
