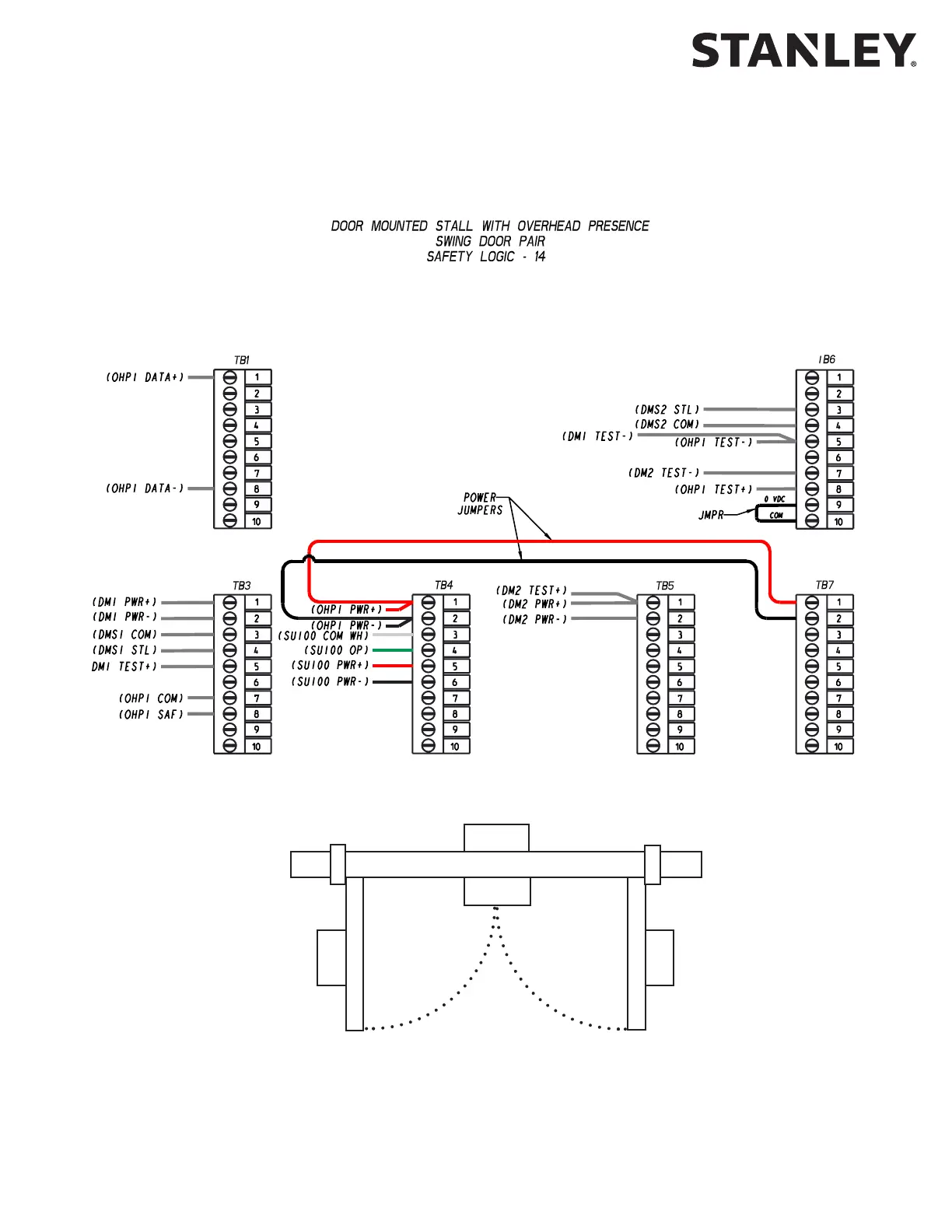

Stanley 204143 - Attachment 4: Monitored Sensors Wiring Diagrams (Sheet 13 of 14)

iQ Control Box
10.18.2019
1.800.7.ACCESS • www.stanleyaccess.com • Document # 204143 REV 5 35
Copyright 2019, Stanley Access Technologies, LLC. All rights reserved. Reproduction
in whole or in part without the express written permission of Stanley is prohibited.
Attachment 4
Monitored Sensors Wiring Diagrams
(Sheet 13 of 14)
OHP1
DMS2
DMS1
SU100
