Mortise Components
3–2 Stanley OMNILOCK Illustrated Parts Catalog
OUTSIDE TRIM COMPONENTS
Outside trim
parts list
Refer to Figure 3.1 and the table below to find the part you need. For
thick door part numbers, see the 40H Series Service Manual.

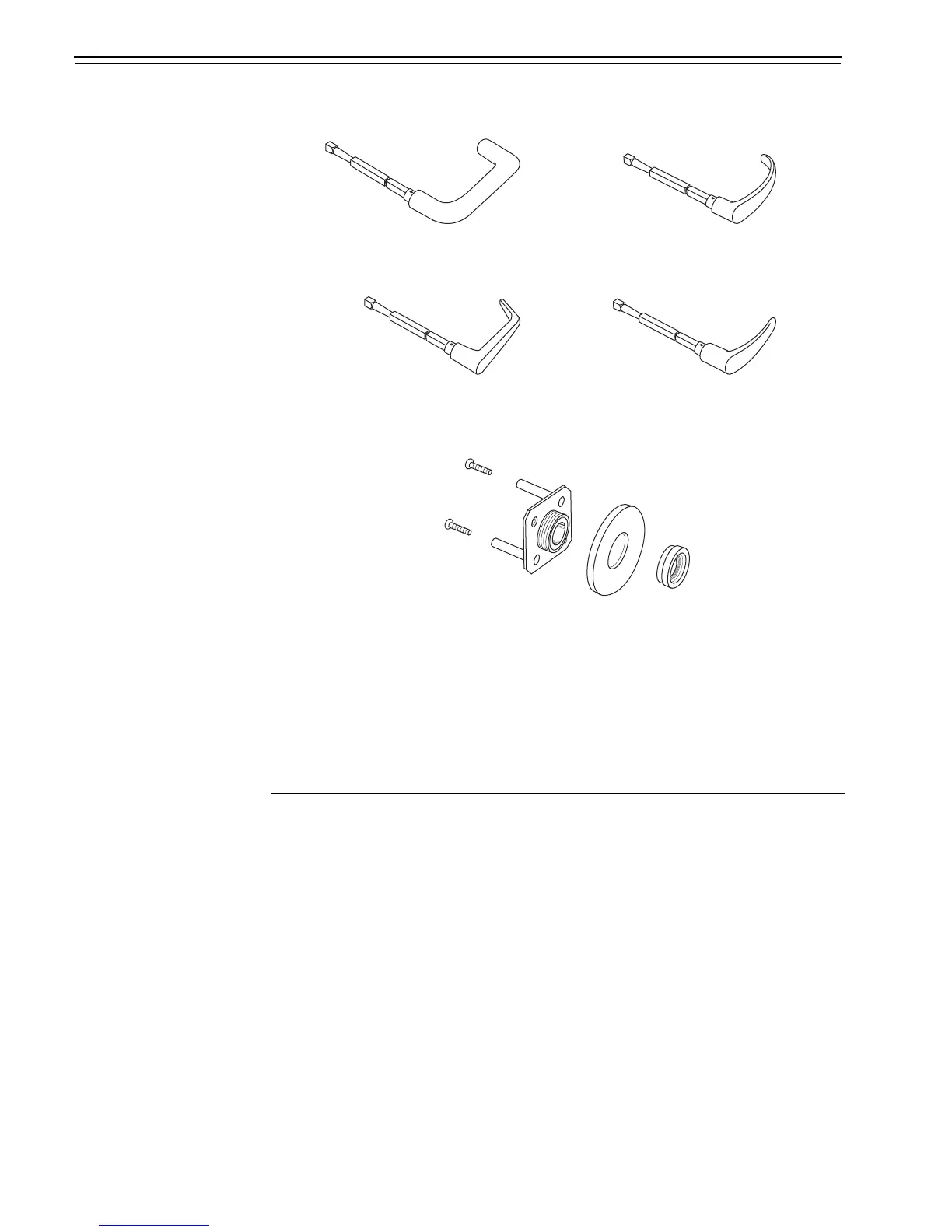

Figure 3.1 Outside mortise trim
Outside rose assembly
#3 outside lever
assembly
#14 outside lever
assembly
#15 outside lever
assembly
#16 outside lever
assembly
Finish and Part Number
Item 612
a
a. Satin bronze, clear coated finish.
613
b
b. Oxidized satin bronze, oil rubbed finish.
626
c
c. Satin chromium plated finish.
690
d
d. Dark bronze, powder coated finish.
#3 outside lever assembly 1899574 1899616 1899815 1899930
#14 outside lever assembly 1900537 1900579 1900778 1900893
#15 outside lever assembly 1901059 1901090 1901290 1901415
#16 outside lever assembly 1898770 1898811 1899019 1899134
Outside rose assembly 1895187 1895229 1895428 1895543
