Exit Device Trim Components
Stanley OMNILOCK Illustrated Parts Catalog 5–13
ADAPTER PLATE KITS
Adapter plate
kits list
Refer to Figure 5.7 and the table below to find the kit you need.

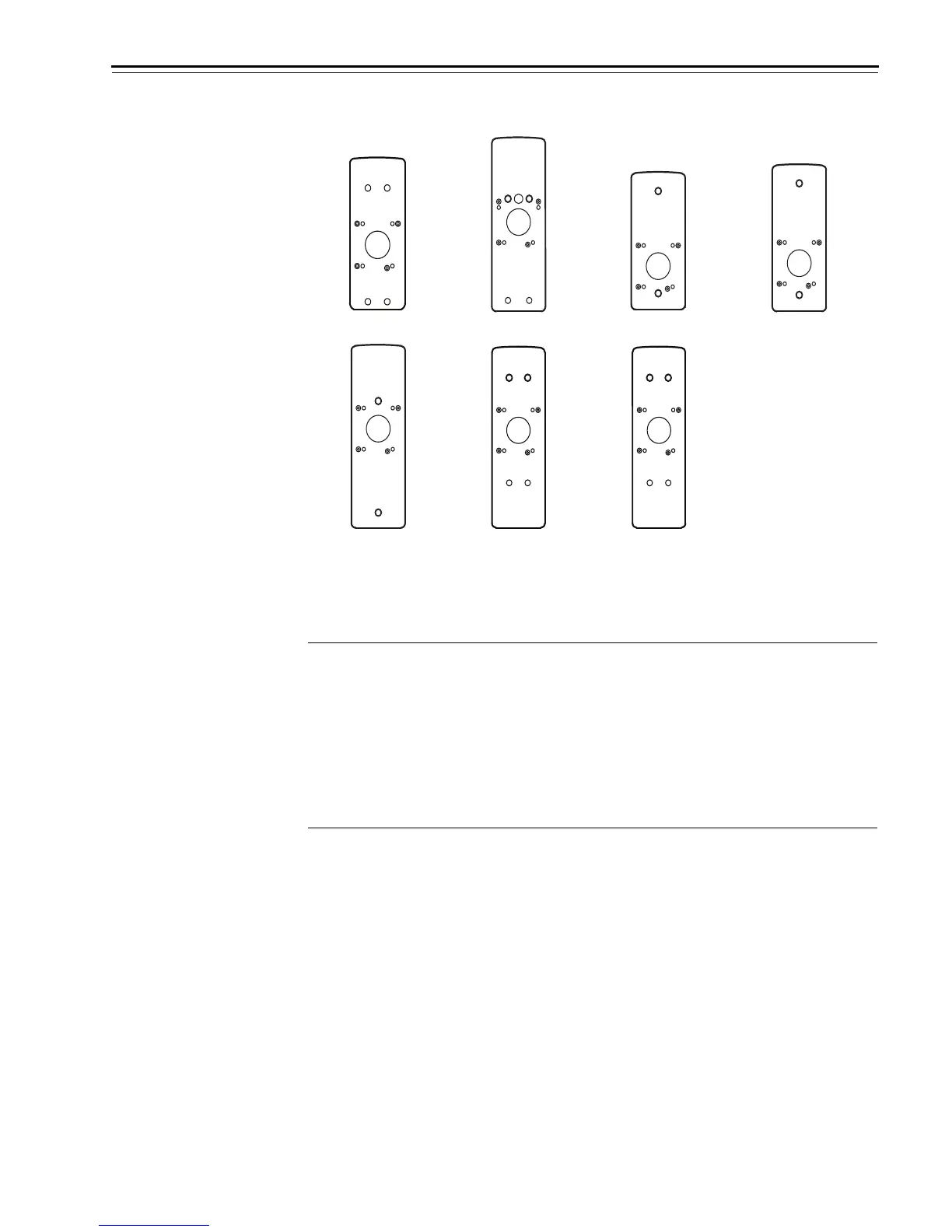

Figure 5.7 Adapter plates for exit device hardware trim
Kit Part No. Description
1 3108732 CY1 (Corbin Russwin / Yale) adapter plate kit
a
a. Includes one 11818 adapter plate, one B83020 tailpiece kit, three B82275 screws, one
B82276 screw, and four 11847 screws.
2 3102835 PH2 (Precision Hardware) adapter plate kit
b
b. Includes one B82795 adapter plate, one B83020 tailpiece kit, three B82275 screws,
one B82276 screw, five A82527 screws, four B82793 screws, four A82791 screws, and
one A82524 screw.
3 3103190 SA7 (Sargent / Arrow 8800 Series) adapter plate kit
c
c. Includes one B82531 adapter plate, one A82535 tailpiece kit, three B82275 screws,
one B82276 screw, and four A82544 screws.
4 3103514 SA8 (Sargent / Arrow 8888 Series) adapter plate kit
d
d. Includes one B82533 adapter plate, one A82535 tailpiece kit, three B82275 screws,
one B82276 screw, four A82543 screws, and four A82544 screws.
5 3108690 SA9 (Sargent / Arrow 9800 Series) adapter plate kit
e
e. Includes one B82784 adapter plate, one A82535 tailpiece kit, three B82275 screws,
one B82276 screw, two A82543 screws, and two A82544 screws.
6 3125234 VD8 (Von Duprin 98 and 99 Series) adapter plate kit
f
f. Includes one B82780 adapter plate, three B82275 screws, one B82276 screw, and four
B82793 screws.
7 3102437 VD9 (Von Duprin 98 and 99 Series) adapter plate kit
g
g. Includes one B82780 adapter plate, one A82787 tailpiece kit, three B82275 screws,
one B82276 screw, and four B82793 screws.
