Mortise Components
Stanley OMNILOCK Illustrated Parts Catalog 3–7
STRIKE BOXES AND STRIKE PLATES
Strike boxes and
strike plates
parts list
Refer to Figure 3.6 and the table below to find the part you need.

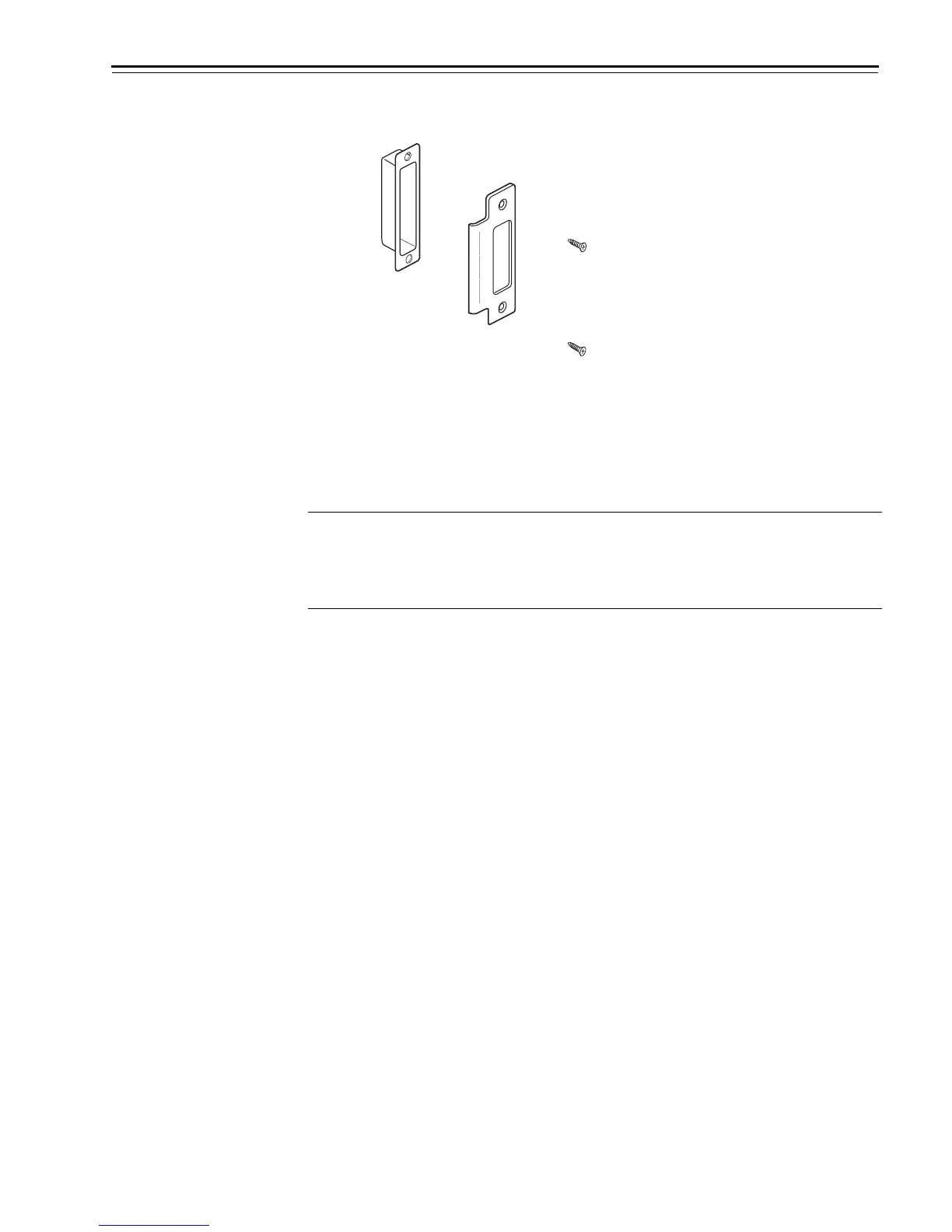

Figure 3.6 Mortise strike boxes and strike plates
1
2
3
Finish and Part Number
Item 612
a
a. Satin bronze, clear coated finish.
613
b
b. Oxidized satin bronze, oil rubbed finish.
626
c
c. Satin chromium plated finish.
690
d
d. Dark bronze, powder coated finish.
40H universal strike plate package
e
e. The package includes one strike plate and two screws (#12–12 × 3/4″ Phillips
flat head).
1902969 1903009 1903208 1903323
Plastic strike box B34380
f
f. This item is not finish specific.
Magnetic strike box for DV function
door status monitor
B61224
f
