Mortise Components
3–4 Stanley OMNILOCK Illustrated Parts Catalog
SPINDLES
Spindles parts list Refer to Figure 3.3 and the table below to find the part you need.

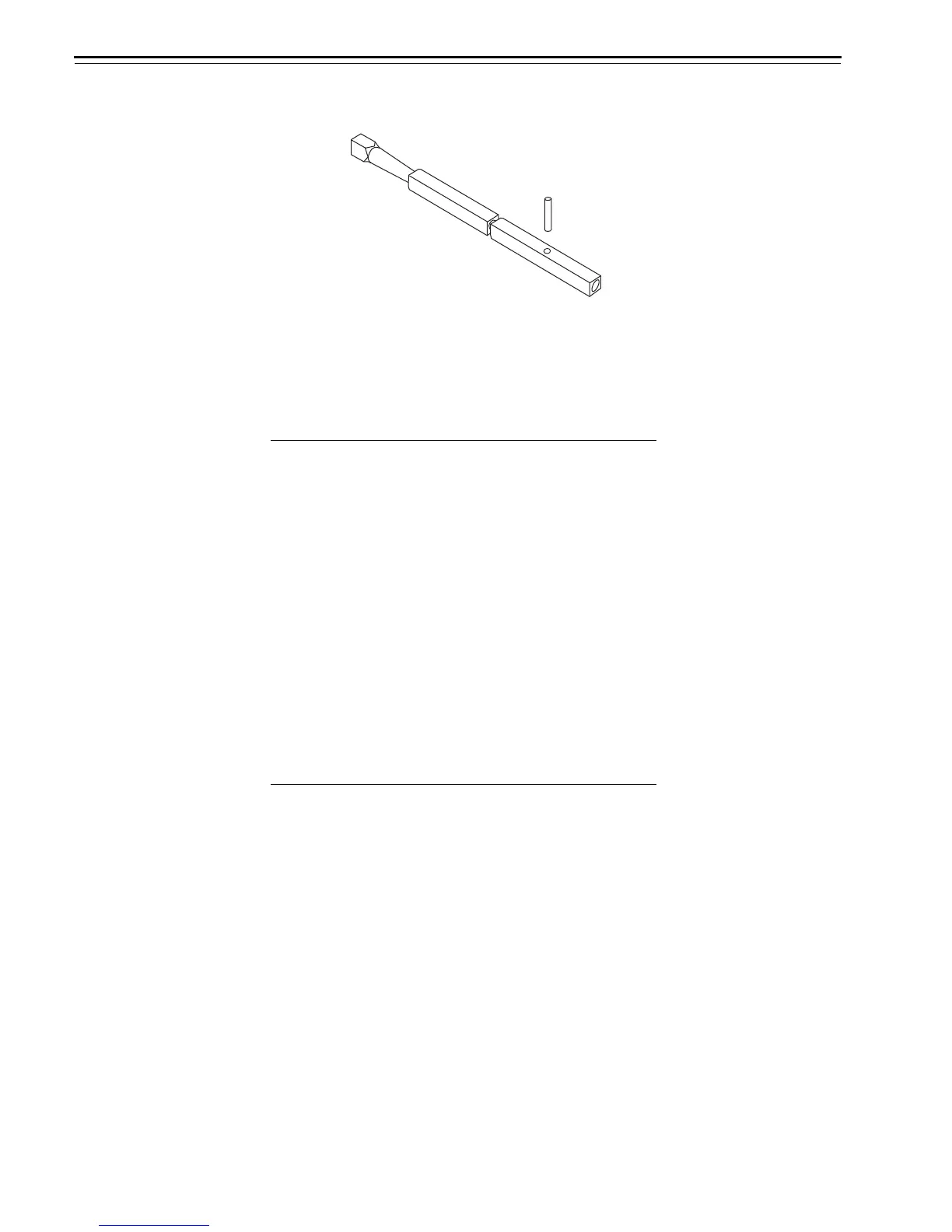

Figure 3.3 Spindles
Outside spindle
Inside spindle
Part Number
a
a. The part numbers provided are for installations where
the mortise case is centered on the door.
Door Thickness
b
b. If your door thickness measurements are in between
those listed, round up.
Inside Outside
c
c. The A63101 pin is required for all outside spindles. It is
ordered separately from the spindle.
2″ B34016 B44210
2 1/4″ B34016 B44211
2 1/2″ B34016 B44212
2 3/4″ B34016 A44221
3″ B34165 A44222
3 1/4″ B34165 A44223
3 1/2″ B34165 A44224
3 3/4″ B34165 A44225
4″ B34165 A44226
4 1/4″ B34550 A44227
4 1/2″ B34550 A44228
4 3/4″ B34550 A44229
5″ B34550 A44230
