Mortise Components
3–6 Stanley OMNILOCK Illustrated Parts Catalog
MORTISE CASE FACEPLATES
Mortise case
faceplates parts list
Refer to Figure 3.5 and the table below to find the part you need.

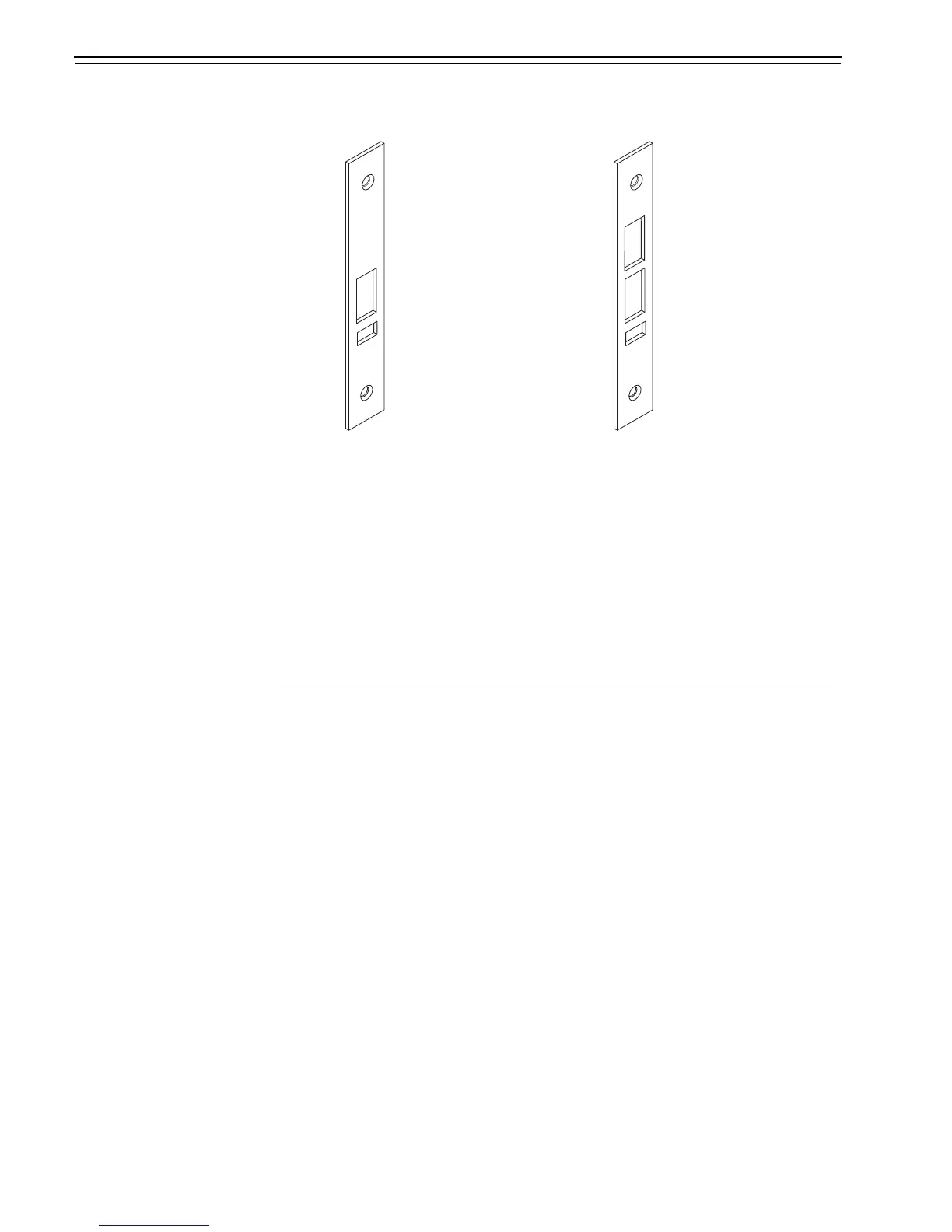

Figure 3.5 Mortise case faceplates
DV function
mortise faceplate
TV function
mortise faceplate
Finish and Part Number
Item 612
a
a. Satin bronze, clear coated finish.
613
b
b. Oxidized satin bronze, oil rubbed finish.
626
c
c. Satin chromium plated finish.
690
d
d. Dark bronze, powder coated finish.
40H faceplate assembly (DV function)
e
e. The assembly includes one faceplate and two faceplate screws (#8–32 × 1/4″ Phillips
flat head).
1895962 1896002 1896201 1896243
40H faceplate assembly (TV function)
e
1895082 1895124 1895323 1895365
