Cylindrical Components
4–2 Stanley OMNILOCK Illustrated Parts Catalog
STANDARD TRIM COMPONENTS
Standard trim
exploded view
Standard trim
parts list
Refer to Figure 4.1 and the table below to find the part you need.

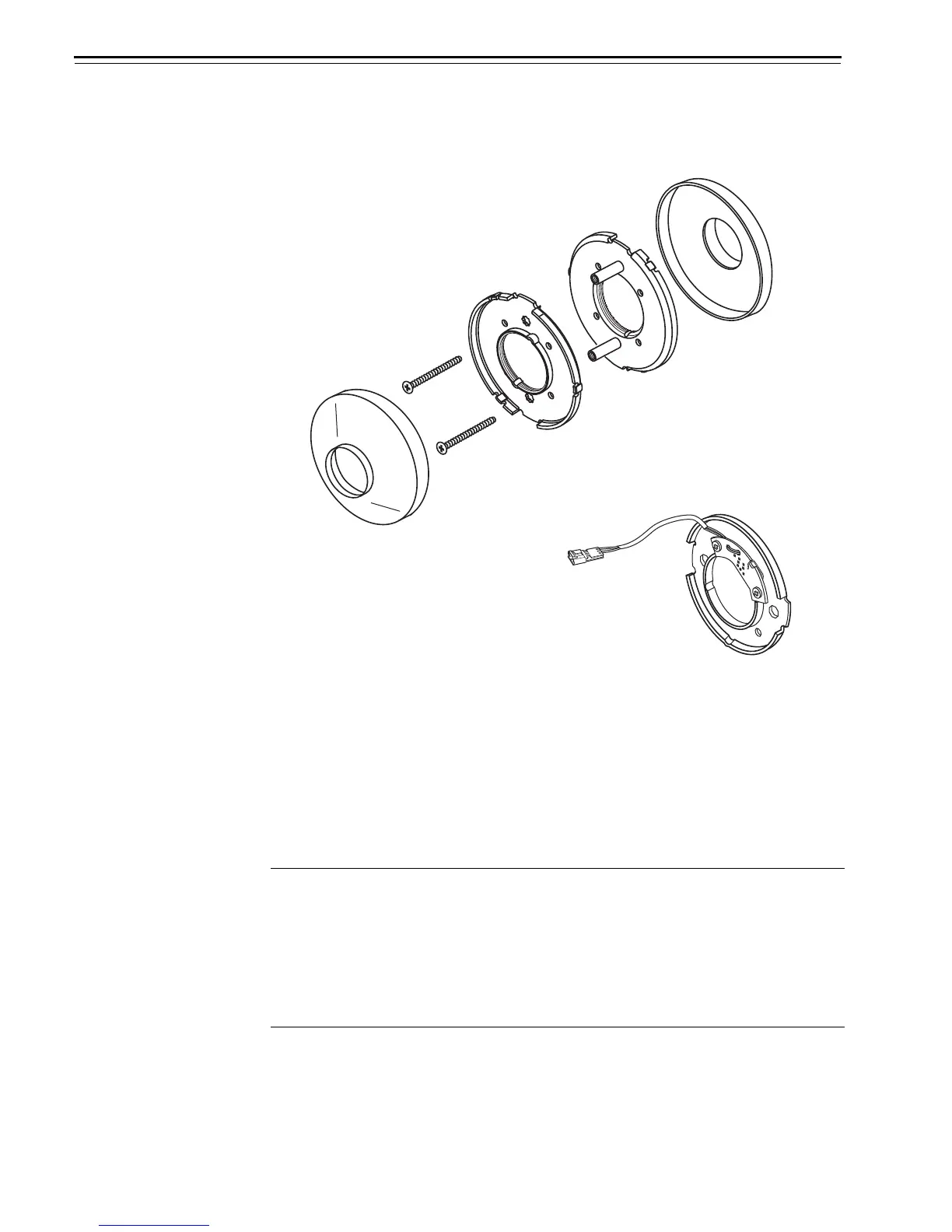

Figure 4.1 Standard trim exploded view
Inside rose
Through-bolt
screws
Inside rose liner
Outside rose liner
Outside rose
Inside rose liner with
request to exit
Finish and Part Number
Item 612
a
a. Satin bronze, clear coated finish.
613
b
b. Oxidized satin bronze, oil rubbed finish.
626
c
c. Satin chromium plated finish.
690
d
d. Dark bronze, powder coated finish.
Inside Rose 1593527 1593569 1593726 1781151
Two through-bolt screws B55557
e
e. This item is not finish specific.
Inside rose liner C55555
e
Inside rose liner with request to exit B82185
e
Outside rose liner A82180
e
Outside rose 3106850 3111420 3106819 3106892
