Mortise Components
3–8 Stanley OMNILOCK Illustrated Parts Catalog
CYLINDER COMPONENTS
Cylinder parts list Refer to Figure 3.7 and the table below to find the part you need.

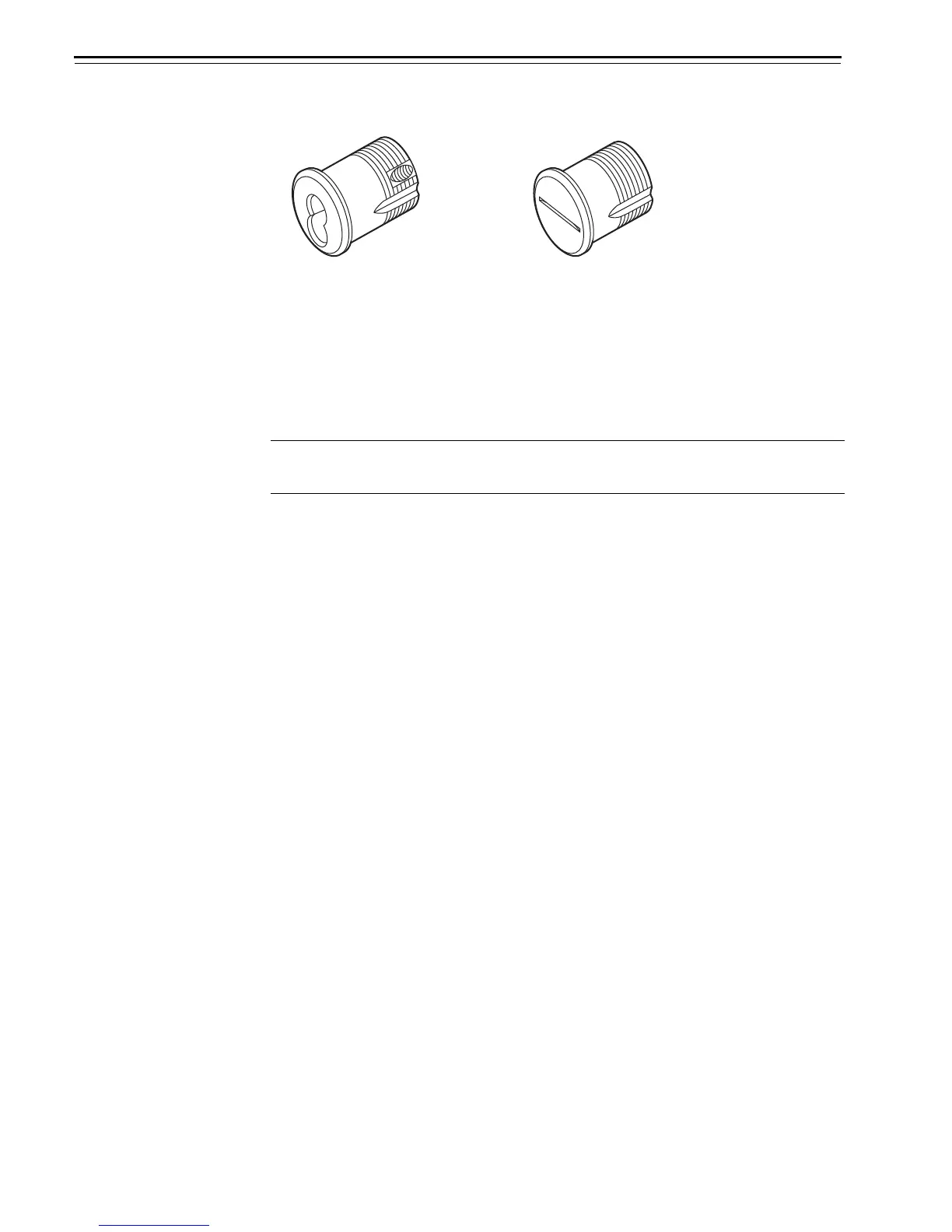

Figure 3.7 Mortise cylinder components
IC Cylinder Dummy cylinder
Finish and Part Number
Item 612
a
a. Satin bronze, clear coated finish.
613
b
b. Oxidized satin bronze, oil rubbed finish.
626
c
c. Satin chromium plated finish.
690
d
d. Dark bronze, powder coated finish.
IC cylinder and cam assembly
e
e. The assembly includes one throw plug spacer, two throw pins, one throw plug,
one stamp head, one IC cylinder, one collar, and one cam.
1307641 1878376 1307772 1307683
Dummy cylinder assembly
f
f. The assembly includes two clamp screws, one clamp plate, and one dummy cylinder.
1292541 1292583 1292358 1792410
