Standard Escutcheon Assemblies
Stanley OMNILOCK Illustrated Parts Catalog 2–17
WEATHERIZED ESCUTCHEON COMPONENTS
Weatherized
escutcheon
components list
Weatherized escutcheon assemblies include all of the components
listed for the corresponding standard escutcheon assembly except for
the battery pack and circuit board. Refer to Figure 2.6 and the table
below to find the part you need.

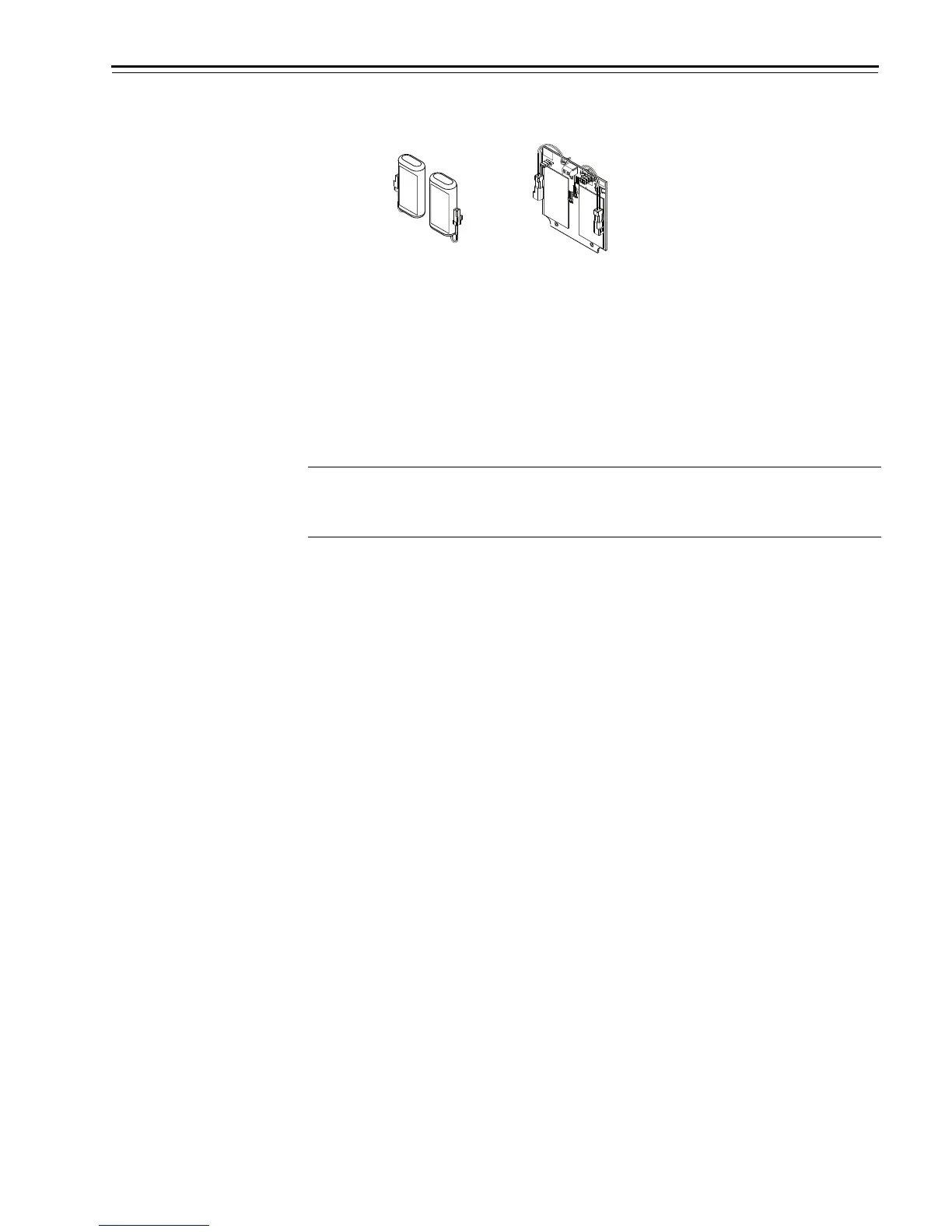

Figure 2.6 Weatherized escutcheon components
Item Qty.
WAMS
Part No.
2000 Series
Part No.
500 Series
Part No. Description
1 2 3092031 3092031 3092031 Weatherized battery pack
(alkaline 3V)
2 1 3103378 3092005 3109736 Weatherized circuit board
a
a. The weatherized circuit board is not sold individually. It is provided with weatherized
housing assemblies.
