Wall Mount System Components
Stanley OMNILOCK Illustrated Parts Catalog 6–11
5E CYLINDER COMPONENTS
5E cylinder
components list
Refer to Figure 6.6 and the table below to find the part you need.

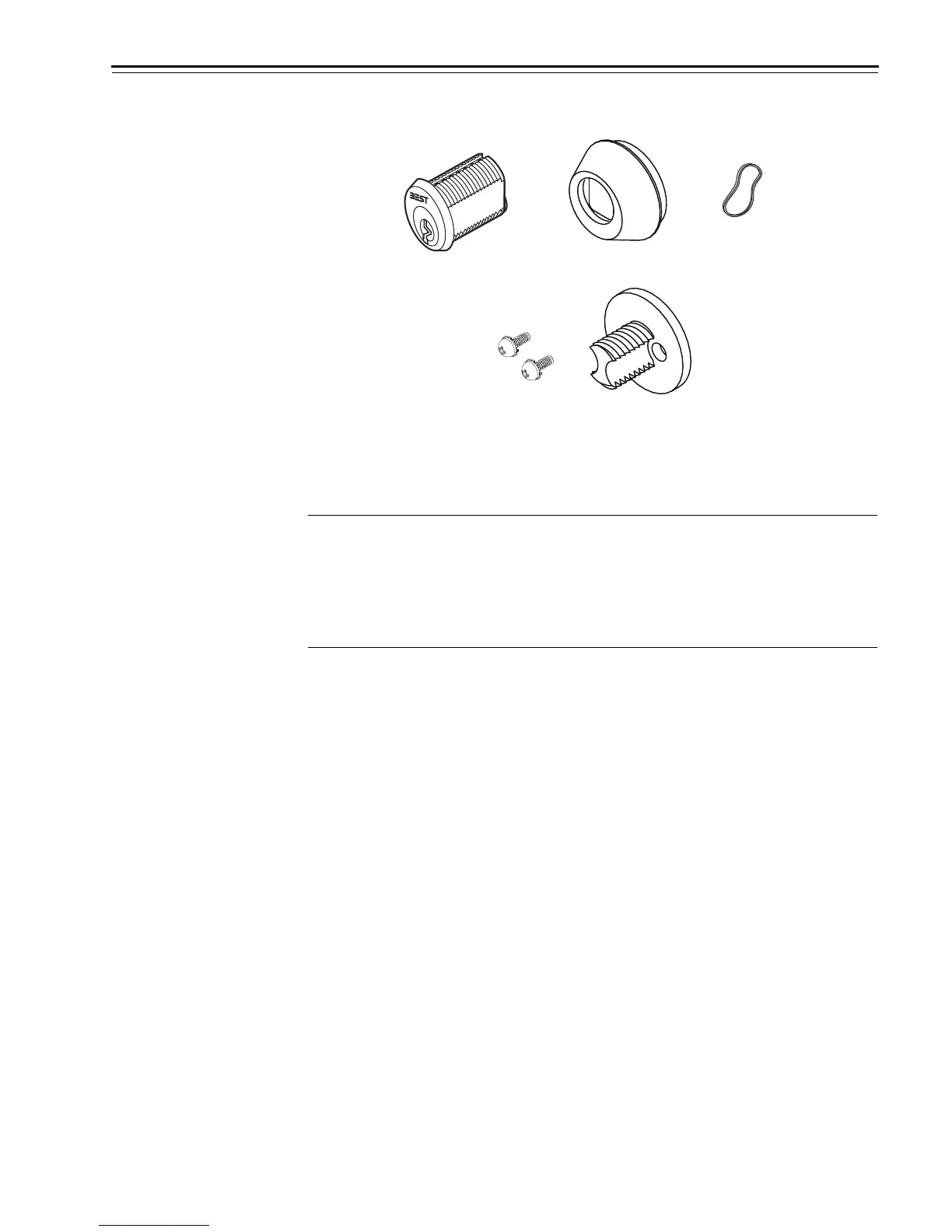

Figure 6.6 5E cylinder components for wall mount systems
12 3
45
Item Qty. Part No. Description
1 1 3115797 5E cylinder
a
a. Cylinders are keyed alike and come with two operating keys.
2 1 B82558 Collar
3 1 A82559 Spring wave washer
4 2 A82245 Screw (#4–40 × 1/4″ Phillips pan head)
5 1 B82560 Tailpiece
