Programming
Instruction Manual
69
Setup
Users at this level can modify all parameters in the Job area. They may also modify
parameters in the Other area except in the Users, Tool and Stats tabs.
Tool
Users at this level can modify parameters under the Tool tab in the Other area, as well as
set Preventive Maintenance Threshold and reset the PM and Cycle counters in the SERVICE
menu.
Diagnostics
Users at this level can force Inputs or Outputs ON or OFF and REMOVE forces in the I/O
tab of ANALYZE.
Statistics Users at this level can modify parameters under the Stats tab in the Other area.
Communications Users at this level can modify all parameters in the Communications area.
Press OK to save.
To delete a user press the MANAGE button and select option 2. Delete. Confirm deletion by pressing OK. This
action requires the Administrator password; once entered, user is deleted.
Import – Users can be entered from a backup file. Connect a USB memory stick to the USB port, scroll to desired
file and press IMPORT. The new users display on the User list.
Export – To backup Users, connect a USB memory stick to the USB port, name the file, then press SAVE.
Press OK to save.
Use the right arrow to move to the next tab or press EXIT to save the changes and return to the Run screen. See
section “3.1.2.6 Exit” on page 52.
3.1.4.3 I/O Tab
Press the BUS interactive menu button then the up/down arrows to select the I/O bus for editing/ viewing. Then
press OK.
The buses available are dependent on the options installed.
3.1.4.3.1 Outputs

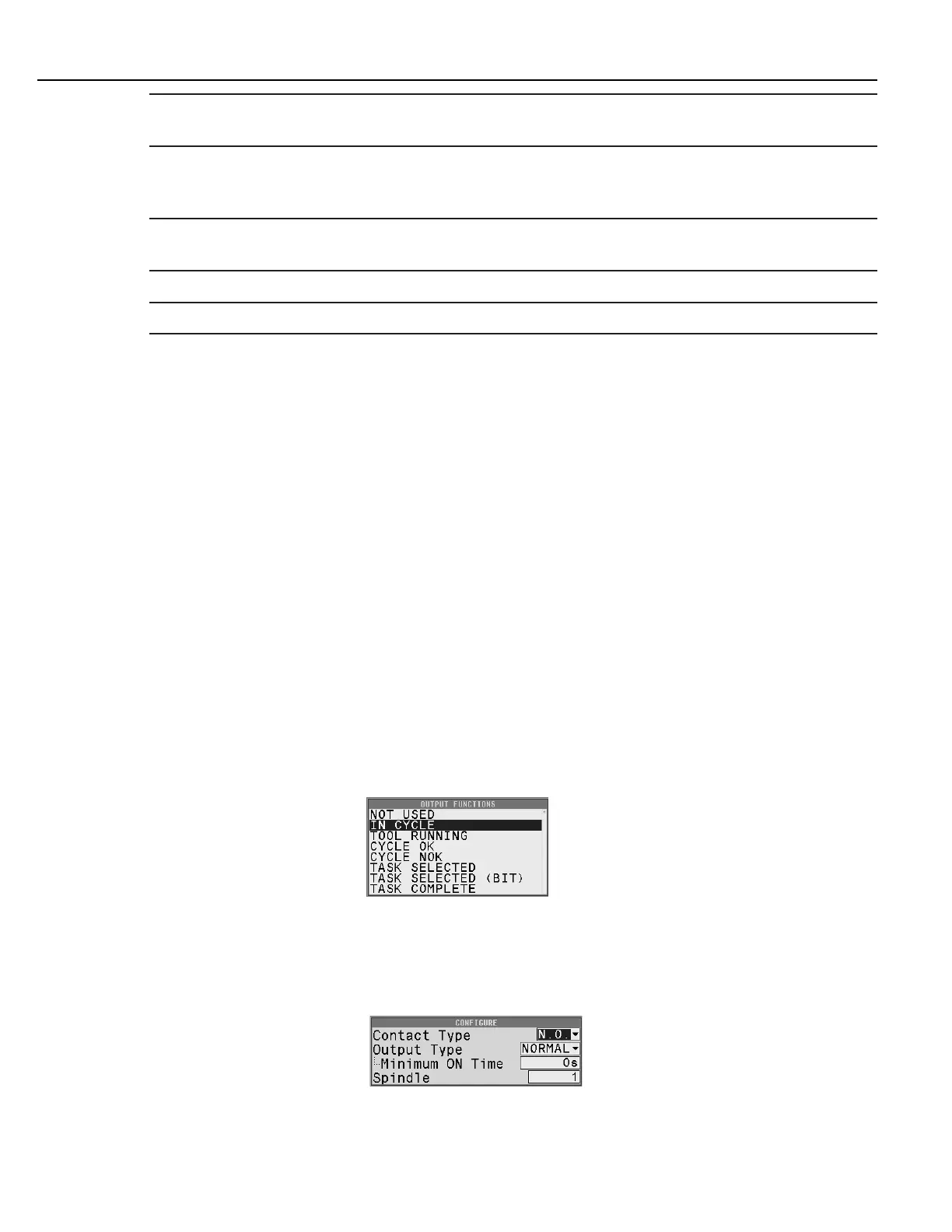

The 24V DC Connector has pins C through K designated as Outputs from the controller. The pin assignments are
selectable on this tab. Use the up/down arrows to select the pin to assign, then press the Toggle button. A list of
available output functions displays. See section “6.12 Assignable Input and Output Functions” on page 120 for
the complete list and descriptions.
Highlight function to assign to the selected pin and press the NEXT button. An Output functions can be assigned
to more than one pin.
The selected Output function must then be configured. See section “6.12.2 Output Descriptions” on page 129
for configuration options and descriptions. After modifying press FINISH.
