ELEVATION
SCREW
ELEVATION
CAN
3

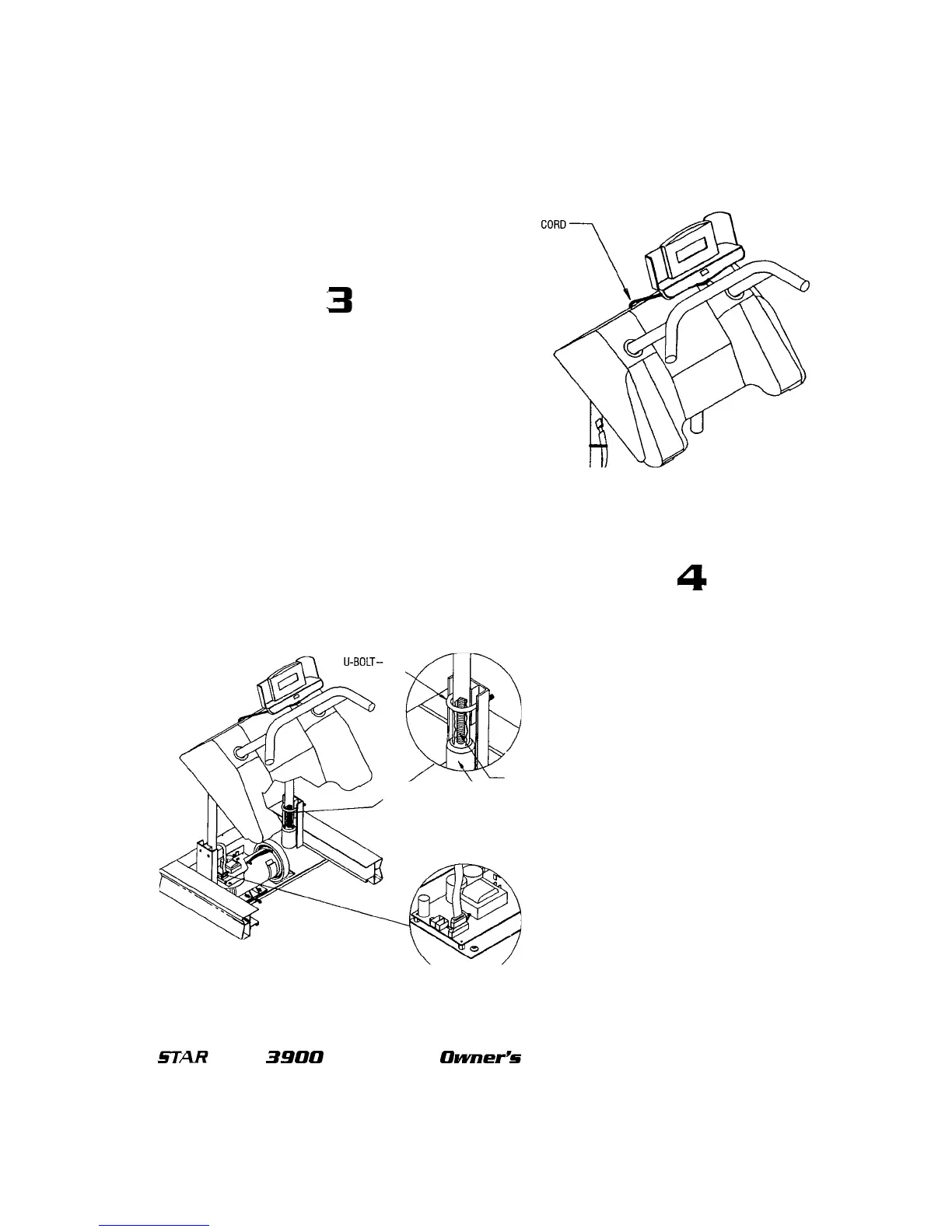

Lift the shroud and secure it to the display control
panel support tube, placing the bungee cord around
the tube and hooking it under the rim
of
the shroud
as
shown. The bungee cord should lift and hold the
shroud halfway up the front handrail legs.
4
Liftthe front handrail and shroud, and
lower the front handrail legs over the
elevation screws that stickup from the
frame. The legs will pass through a
V-bolt on each side, then come
to
a
stop. Remove the cable tie that secures
the ribbon cable to the front handrail
leg. Caution: Take care notto put any
undue strain on the ribbon cable and
connector. Tighten the nuts on the
V-bolts, but leave them loose enough
for
later
adjustment
of
the
front
handrail. Insert the plug end
of
the
ribbon
cable
in
the
connector
at
location
11
onthemotor controlboard.
It
will go in only one
way.
Make sure
the two locking arms latch over the
plug. Remove the bungee cord, and
lower shroud into place.
§TAR
TRAC
3900
TREADMILL
Owner~!i
Manual
