MECHANICAL INSTALLATION
!
Warning
In order to avoid damage to the drive and the door, the drive must be instal
-
led to the console assembly. It dampens vibrations and allows for the proper
torque transfer.

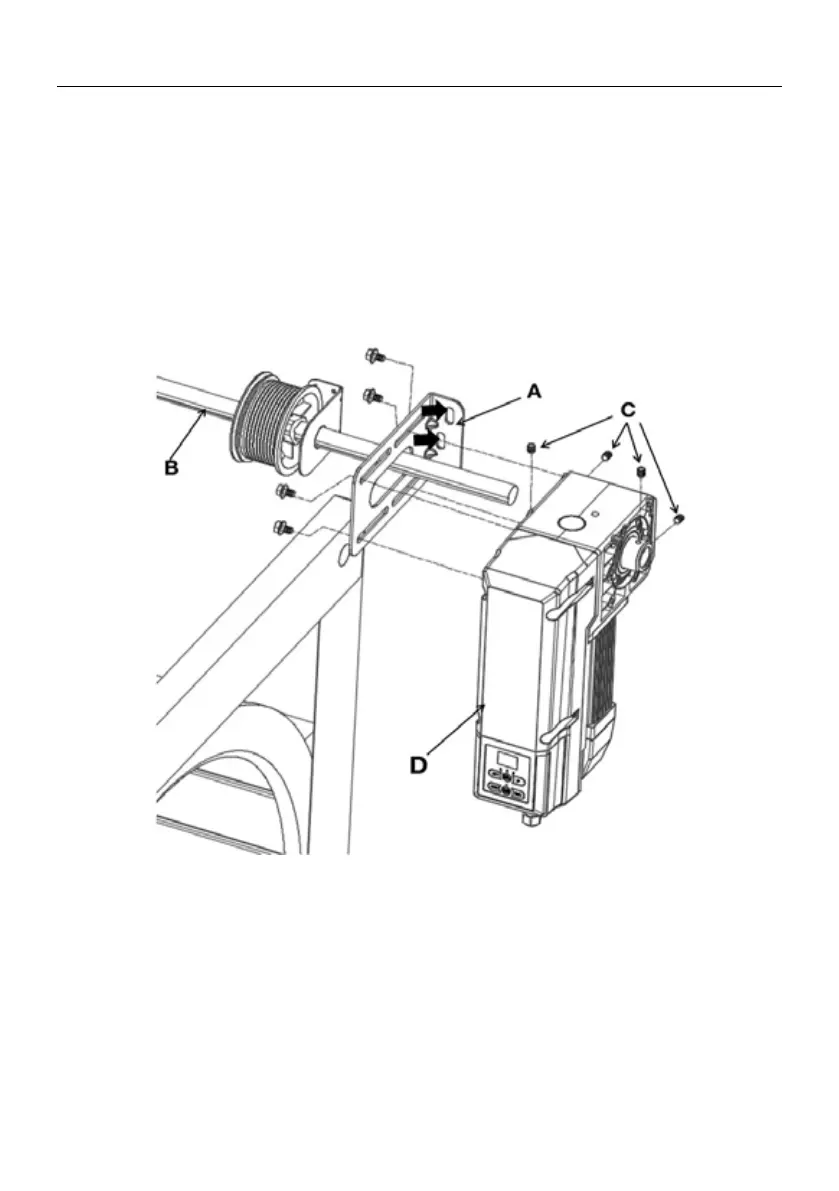

1) Fit the torque support bracket/console (A).
2) Grease the spring shaft (B) around the operator seating.
3) Place the operator (D) on the spring shaft (B).
4) Tighten the 4 x M6*10 hexagon socket set screws (C) on the spring shaft (B)
through the output shaft.
5) Fix the operator to the torque support bracket with 4 screws.
