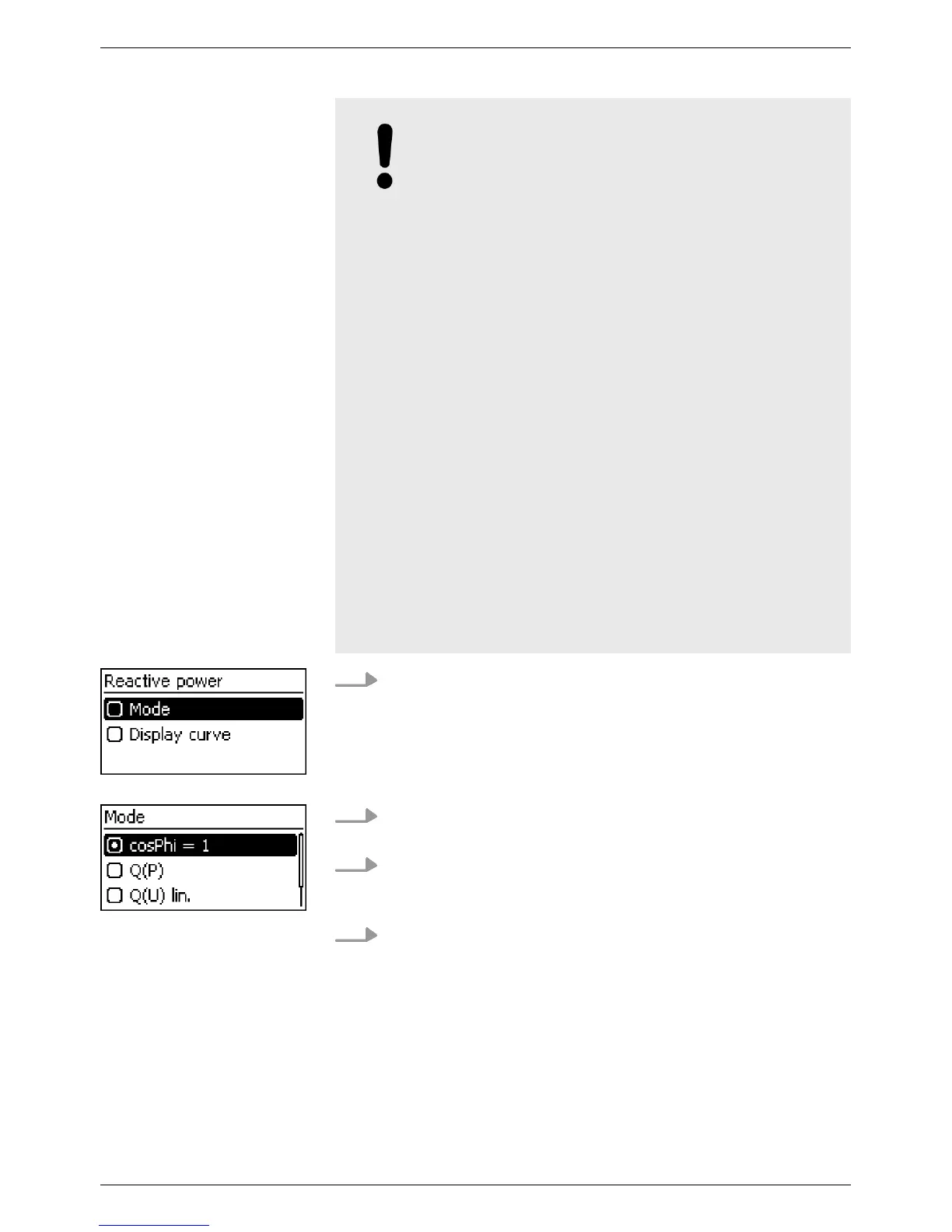

NOTICE!
The following items are only displayed when the
use of a reactive power characteristic curve is
prescribed for the country currently selected in
the Country item:
– Mode: Type of characteristic curve
Select one of the following types:
- cos phi = 1
- Q(P)
- Q(U) linear
- Q(U) hysteresis
– Loading defaults
1)
: A default character-
istic curve can be selected here.
– Node 1
1)
No. of nodes
1)
The nodes provide for free
programming of a characteristic curve.
– Node 2
1)
– Node n
1)
2)
– Display char. curve
1)
: Not indicated with mode cos phi = 1.
2)
: Is only displayed when no. of nodes has
been set to a value > 2.
1. Press SET to call up the item.
2.
Press rs to select a type of reactive power characteristic
curve.
3. Press SET.
ð
The reactive power characteristic curve type is adopted.
4. Press ESC.
✓ The check list is shown.
Reactive power
EN
750.661 | Z03 | 2016-09-12
39
