stellar labs 7630 - Decal Placement - PN 117183

Stellar
®
7630 Telescopic Crane Owner’s Manual PN: 106864| Page 27
Decal Placement - PN 117183
35234
Proudly Designed
and Manufactured
in the USA by
D1197
20
0
10
Angle Indicator
30
80
70
50
40
60
PN 93936 Rev1
DANGER
Death or serious injury will
result from touching tethered
remote if crane, load, or vehicle
becomes electrically charged.
Maintain safe clearance from
high voltage power sources.
Electrocution Hazard
WARNING
Do not exceed equipment load charts and ratings.
Failure to follow equipment load charts a
nd ratings can result in
death or serious injury.
Overload Hazard
FOR SERVICE ON THIS EQUIPMENT CONTACT:
STELLAR INDUSTRIES, INC.
190 STATE STREET, GARNER, IA 50438
Ph. 641-923-3741
Ph. 800-321-3741
WARNING
Read and understand all
manuals and safety signs
before operating or servicing
this equipment.
Failure to follow operating,
maintenance, or safety
instructions can result in
death or serious injury.
Untrained Operator Hazard
NOTICE
73929
WARNING
25159
After stowing the crane, always return the valve
bank manual overrides to the neutral position.
Failure to return the manual overrides to the neutral
position can result in death or serious injury.
Movement Hazard
4188
ALIGN
ALIGN
NOTICE
9188
Damage may occur if worm gear runs
dry. Keep worm gear lubricated with
Stellar
®
grease (PN 4460).
WARNING
Misuse Hazard
Two blocking the crane can result in death
or serious injury.
Never allow the hook block to contact the
boom tip by hoisting up, extending or
lowering the boom.
12300
Winch Pull
Boom Ex
te
ndi
n
g
Boom
Down
12451
WARNING
Hoisting personnel on boom,
hook, load, or loadline can result
in death or serious injury.
• Never use crane to hoist
personnel.
• Never ride the boom, hook,
load, or any device attached
to crane boom or load line.
Fall Hazard
WARNING
24712
Do not use stow hook for any lifting applications.
Using the stow hook for anything other than hook
stowage can result in death or serious injury.
Misuse Hazard
D1196
20
30
50
70
60
80
40
10
0
Angle Indicator
WARNING
2
8256
Overload Hazard
Bypass
in
g
th
e
ove
rloa
d
c
o
n
ditio
n
by
tam
p
e
ring
with th
e ov
e
rlo
a
d
de
v
ice c
a
n
res
ul
t
in
d
e
a
th
or
s
e
riou
s
inju
ry.
Never
ta
mpe
r wit
h
ov
e
rloa
d
d
e
vice.
GREASE every 3 months.
Apply 3 ‘pumps’ of EP2
(extreme pressure grease)
then rotate crane fully.
15171
NOTICE
15172
This crane has been designed and
manufactured to ASME/ANSI B30.22
and/or B30.5 specifications.
DANGER
Electrocution Hazard
Death or serious injury will result from
inadequate clearance if crane, load,
or vehicle becomes electrically
charged.
• Maintain safe clearance from high
voltage power sources.
• Never approach vehicle or load if
equipment is near a high voltage
power source.

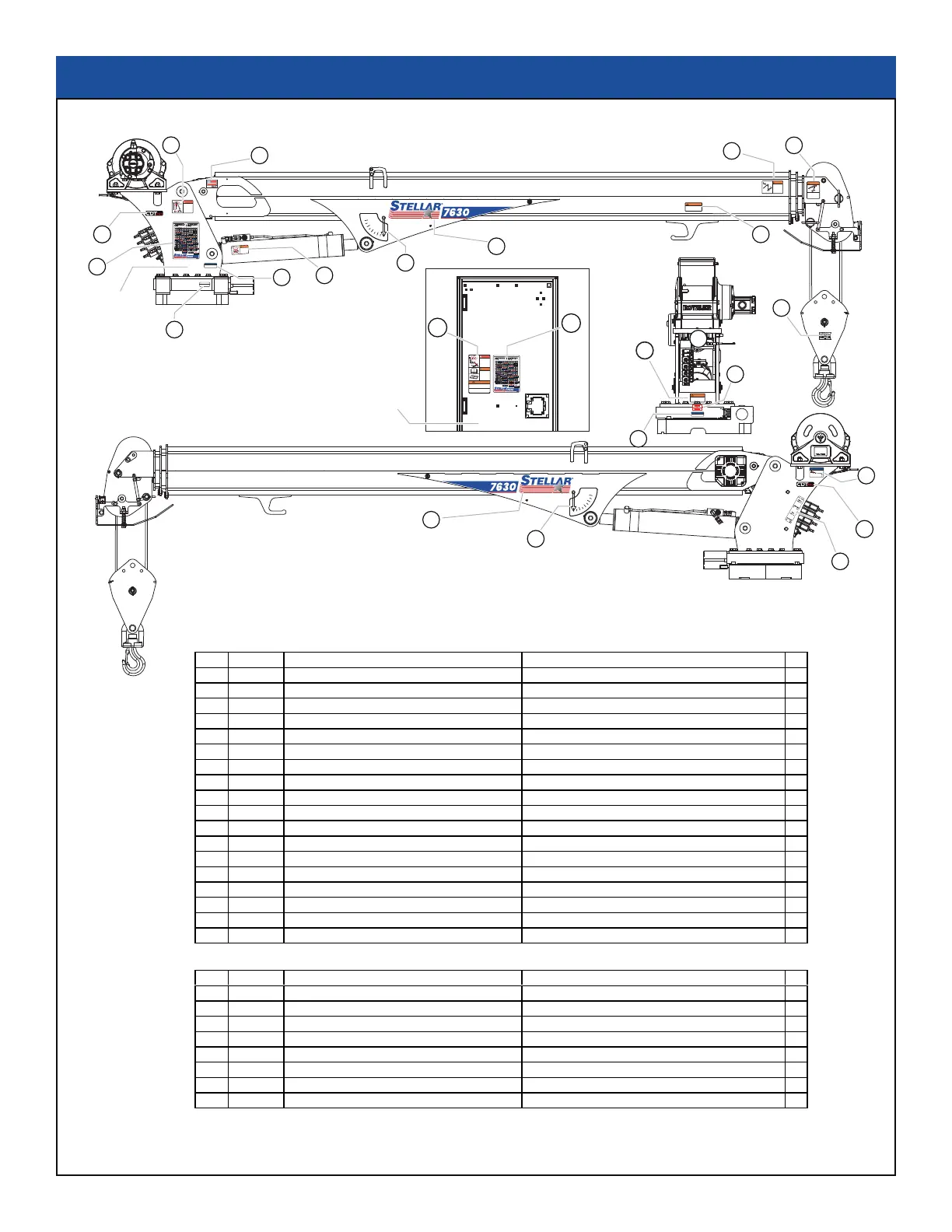

C1179
17
08
13
01
04
07
05
03
02
19
06
11
20
10
12
09
Ph. 800-321-3741
21
22
25*
22
24
24
18
23
Crane Compartment
Inner Door
Serial Tag
Location
PN 117183
(Rev A - 10/10/21)
Update item 22
GENERAL DECAL PACKAGE - PN 90470
ITEM PN DESCRIPTION LOCATION QTY
01 15172 DECAL ASME/ANSI B30.22/B30.5 Crane Mast 1
02 12300 DECAL WARNING TWO BLOCKING Crane Horse Head 1
03 12451 DECAL WARNING HOISTING PERSONNEL Main Boom 1
04 15171 DECAL GREASE WORM Crane Base 1
05 24712 DECAL WARNING STOW HOOK Crane Boom above stow hook 1
06 25159 DECAL WARNING MANUAL OVERRIDES Under Valve Bank 1
07 28256 DECAL WARNING OVERLOAD DEVICE Main Cylinder 1
08 35234 DECAL STELLAR MADE IN THE USA Main Boom 1
09 93936 DECAL SAFETY & SERVICE MECH BODY DOOR Crane Compartment 1
10 4188 DECAL ROTATION ALIGNMENT Crane Base 1
11 73929 DECAL PRESSURE WASH Crane Mast 1
12 9188 DECAL ROTATE/GREASE Crane Base 1
13 C1179 DECAL DANGER ELECTROCUTION SMALL Crane Mast 1
14** C4545 DECAL DANGER ELECTROCUTION LARGE Four corners of the body/chassis 4
15** C5910 DECAL STELLAR 4x9.5 Suggested: Rear body/tailgate 1
16** C5911 DECAL STELLAR 2x4.5 Suggested: Side corners of body 3
17 D1196 DECAL ANGLE INDICATOR CS Main Boom 1
18 D1197 DECAL ANGLE INDICATOR SS Main Boom 1
7630 HSS DECAL PACKAGE - 116444
ITEM PN DESCRIPTION LOCATION QTY
19 116441 DECAL SNATCH BLOCK 5 TON Snatch Block 1
20 41068 DECAL VB CONTROL MECH CRANE On side of Crane Mast 1
21 116443 DECAL I.D. 7630 HSS PRE-MASKED CS Main Boom (Curb Side) 1
22* 122920 DECAL CDT PRO MAST CDT PRO ONLY - Crane Mast (Both Sides) 2
23 116442 DECAL I.D. 7630 HSS PRE-MASKED SS Main Boom (Street Side) 1
24 118556 DECAL CAPACITY 7630 HSS Main Boom and Crane Compartment 2
25* 118535 DECAL CNTRL ID 7630 V3 CDT PRO CDT PRO ONLY - Valve controller inside mast 1
25* 124608 DECAL CNTRL ID 7630 V3 CDT PRO NB CDT PRO NONBOOST ONLY - Valve controller inside mast 1
* For CDTpro™ equipped cranes, use PN 118535. For CDTprononboost™ equipped cranes, use PN 124608.
** Not shown.
