Page 21
When securing the boom bolts to the boom, install the head of the bolts on the same side of the boom,
so that they will be facing upward when the boom is secured to the tower.
The 1/4” boom bolts require 5 washers, as shown below in figure 1.02. IMPORTANT: There is a single
5/16” hex head boom bolt, located next to the EZ-Eye eyebolt. This hex head bolt will require only two
washers, placed between the Nylock nut and the aluminum tube as shown in figure 1.03.
CHAPTER ONE
SECTION 1.0
BOOM ASSEMBLY (continued)

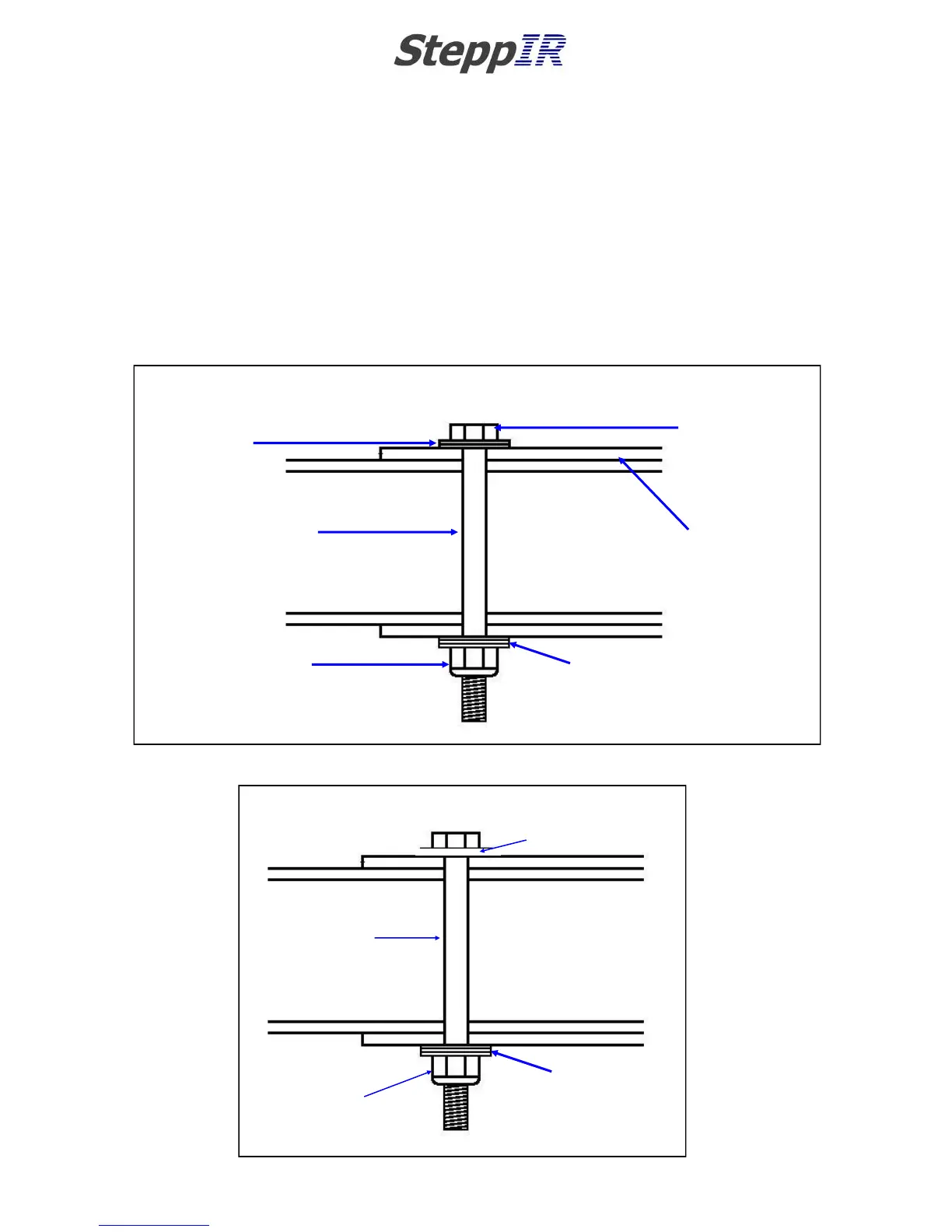

BOOM BOLT DETAIL
Inserting the boom bolts into the boom
See prior page for the
specific bolt lengths
required for each boom
section
QTY 3: 60-0041
1/4” Flat washers
QTY 1: 60-0030
1/4” Nylock nut
QTY 2: 60-0041
1/4” Flat washers
Bolt head facing up
Top of boom
Always use anti-seize on stainless steel fasteners
5/16” Boom bolt configuration
QTY 2: 60-0033
5/16” Flat washers
No Washers
QTY 1: 60-0103
5/16” Hex head bolt
QTY 1: 60-0046
5/16” Nylock nut
FIG. 1.03
FIG. 1.02
