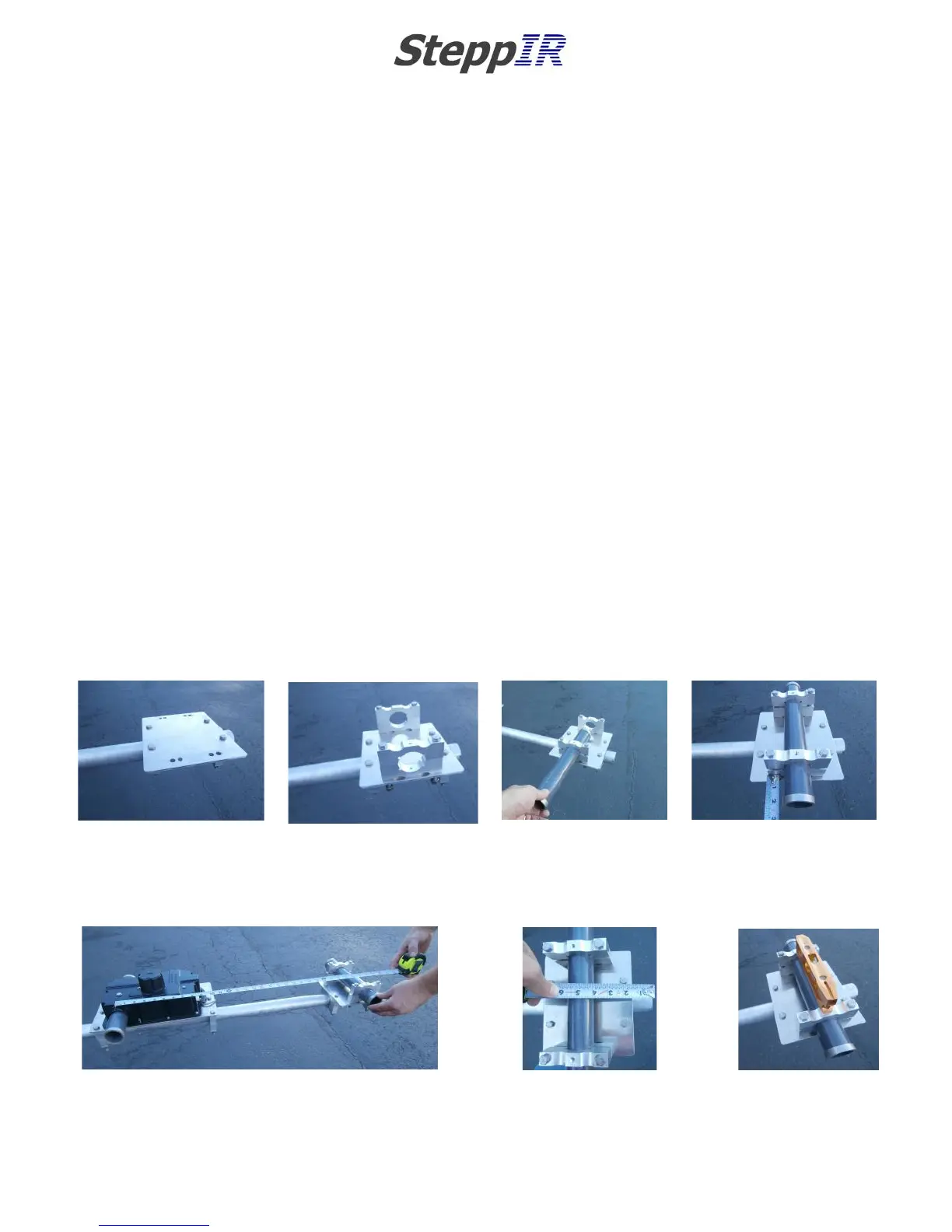

Install the element return mounting plate (PN 10-1608-01). Use four of the 1-3/4” aluminum saddles,
5/16” x 3-1/2” hex head bolts and 5/16” Nylock nuts as shown in figure 3.60. Tighten the nuts, but
leave loose enough to adjust for the center-to-center measurement. Again using four of the 1-3/4 alu-
minum saddles, 5/16” x 3-1/2” hex head bolts, and Nylock nuts, loosely install the return tube saddles
as shown in figure 3.61.
Using four of the 1-3/4 aluminum saddles, 5/16” x 3-1/2” hex head bolts, and Nylock nuts, loosely install the
return tube saddles as shown in figure 3.61.
Insert the element return tube (PN 10-1015-11) as shown in figure 3.62. Be sure that the return tube is
protruding out approximately 2.5 inches away from the aluminum saddle edge on each side, as shown in fig-
ure 3.63. Tighten the saddles to a maximum of 7 ft lb (9.5Nm). This is very important. The aluminum
saddles can crush the fiberglass tubes if the saddles are too tight.
Measure 30 inches from the center-point of the reflector EHU to the center-point of the return tube as shown
in figure 3.64. The center-point of the return tube should also be approximately 5 inches away from the
right edge of the boom as shown in figure 3.65. Remember, the center-to-center measurements always get
the priority!
Level the return bracket assembly as shown in figure 3.66 and tighten the saddle bolts firmly. Do not forget
to use anti-seize on all stainless steel fasteners, and also remember to install a set screw into each saddle
pair (one set screw per saddle pair).
