Tech Support: www.steppir.com/support Tel: 425.891.6134 support@steppir.com
Page 41
CHAPTER FOUR
SECTION 4.1
COAX SWITCH HOUSING (continued)
COAX SWITCH WIRING

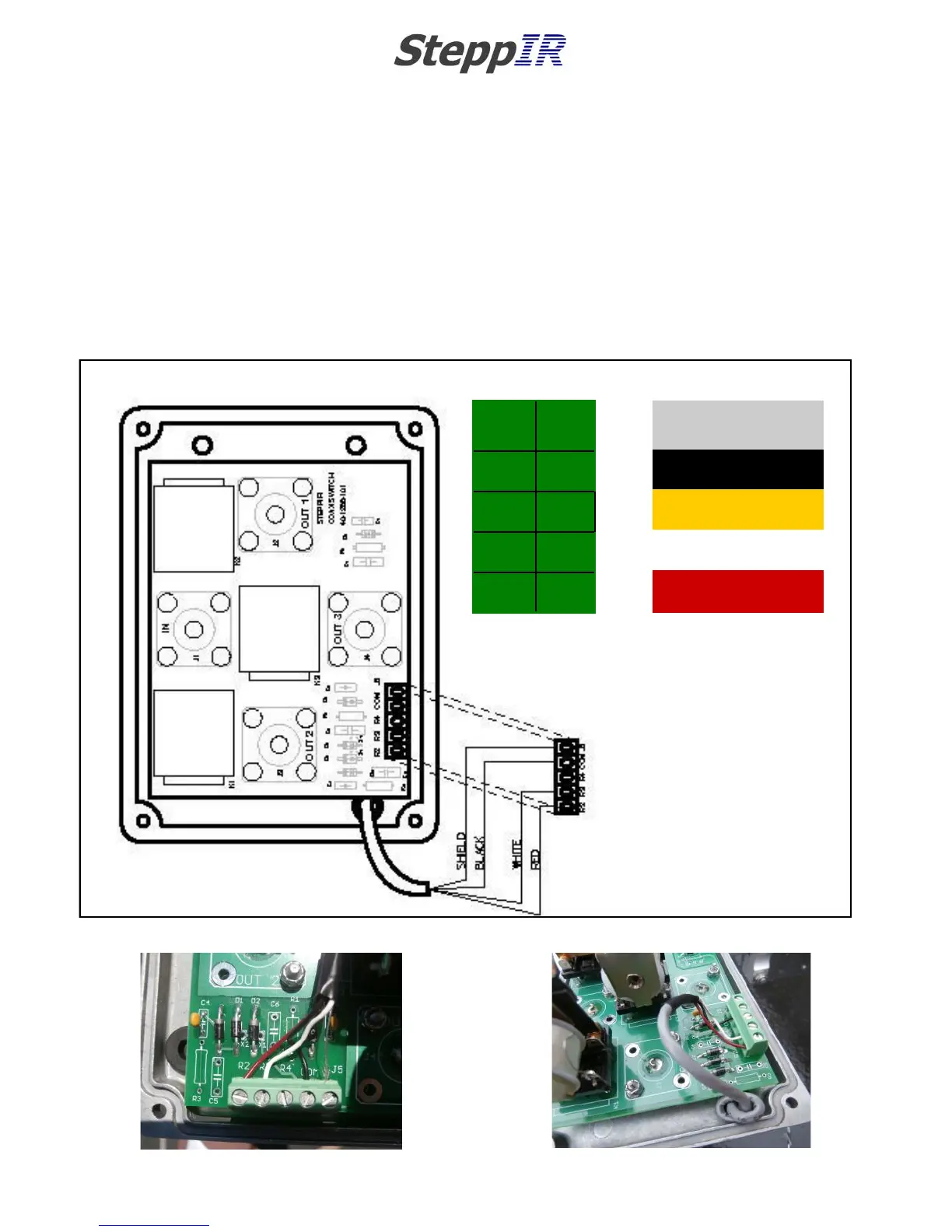

Figure 4.10 shows the wiring sequence for the coax switch. BE CERTAIN TO NOT USE TERMINAL
PIN R4 AS SHOWN IN figure 4.11. This is the green wire was in the earlier step.
Always dip your bare copper wire ends into the provided connector protector before securing to the
terminal connections. Insert wires as shown in figure 4.12.
Form a knot in the control cable as shown in figure 4.13. This will serve nicely as a strain relief.
SHIELD
BLACK
DO NOT USE
WHITE
RED
J5
COM
R4
R3
R2
FIG. 4.10
FIG. 4.11
FIG. 4.13
FIG. 4.12
