en
Incubator
LCB060
Operator Manual

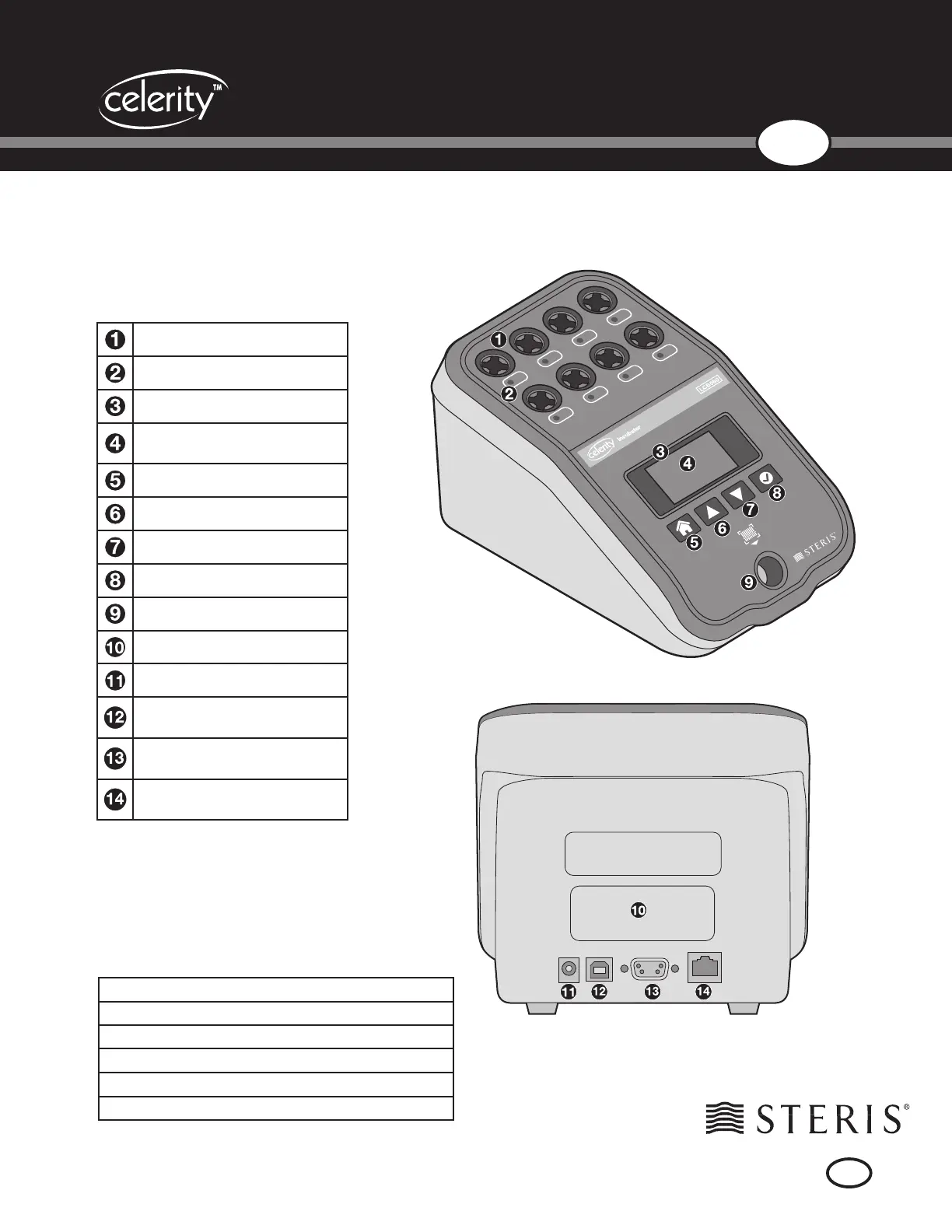

INCUBATOR - BACK VIEW
INCUBATOR - TOP VIEW
RECOMMENDED PRINTER SPECIFICATIONS:
Thermal Line Printer
Minimum Dot Density 200 DPI x 200 DPI
32-42 Columns
1/6 inch line spacing
14K Byte Minimum Data Bu er
Interface: RS-232
KEY
Well Blocks
Well LED
LCD Screen
Temperature Display
(Use Up/Down arrows to view)
HOME Button
NAVIGATION Up Button
NAVIGATION Down Button
ENTER Button
Barcode Scanner
Name Plate
Power Cord Inlet
USB Port
(For STERIS Use Only)
RS-232 Communication Port
(Printer Connectivity)
RJ-45 Communication Port
(Network Connectivity)
