STIEBEL ELTRON WPM 3 User Manual

OPERATION
Operation
6 | WPM 3 www.stiebel-eltron.com

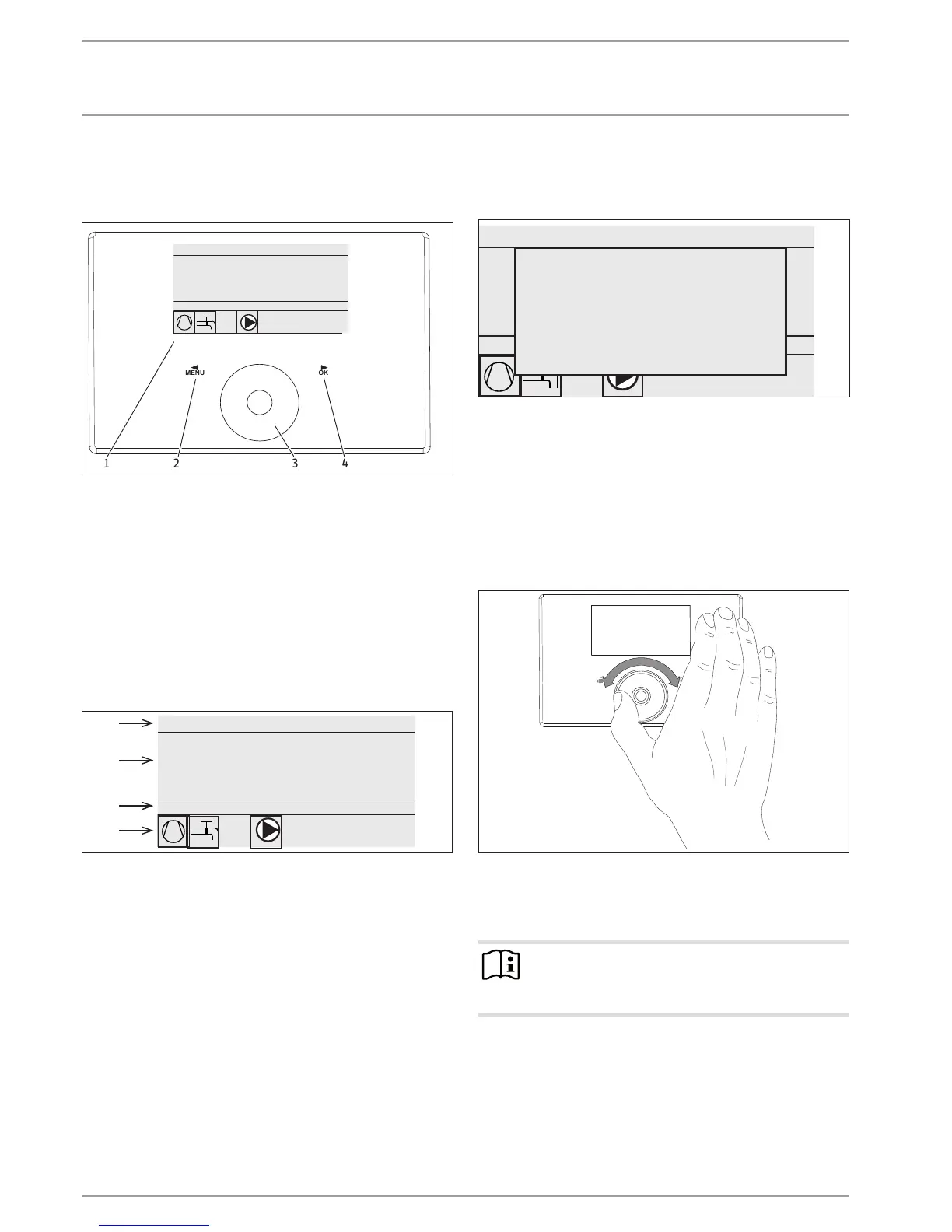

4. Operation
4.1 Controls
OKMENU
D0000064711
WEDNESDAY 12JUN 13 10:23 TIME
OUTSIDE TEMPERATURE
ACTUAL WW TEMPERATURE
27.0 °C
35.0 °C
28.0 °C
ACTUAL RETURN TEMPERATURE
ECO MODE
1 32 4
1 Display
2 MENU key
3 Scroll wheel
4 OK key
You control the system with the programming unit of the heat
pump manager. Use the scroll wheel and the MENU and OK keys
to navigate through the menu structure.
4.1.1 Display
The programming unit display shows the current system status
and provides messages and information.
Start screen
WEDNESDAY 12JUN 14 10:23 TIME
OUTSIDE TEMPERATURE
ACTUAL WW TEMPERATURE
27.0 °C
35.0 °C
28.0 °C
ACTUAL RETURN TEMPERATURE
ECO MODE
26�04�01�0292
1
2
3
4
1 Date and time
2 Temperature display
3 Operating mode
4 System status picture symbols
The start screen is divided into four sections. The top field displays
the date and time. The field below displays the outside tempera-
ture along with the actual DHW temperature and the actual return
temperature. The third section is for selecting and displaying the
operating modes. In the fourth section, picture symbols indicate
the current system status.
Activating
If the scroll wheel and keys are not used for 5minutes, the pro-
gramming unit is locked.
WEDNESDAY 12JUN 14 10:23 TIME
OUTSIDE TEMPERATURE
ACTUAL WW TEMPERATURE
27.0 °C
35.0 °C
28.0 °C
ACTUAL RETURN TEMPERATURE
ECO MODE
To activate please
press MENU
for 3 seconds.
26�04�01�0292
 Press MENU for three seconds to activate the programming
unit.
Selection indicator
A selection indicator shows the current position within the menu
structure at all times. The currently selected menu item is indi-
cated by a dark background. The current menu level is indicated
at the top of the display.
4.1.2 Touch wheel
D0000064710
The scroll wheel consists of a touch-sensitive sensor. There is a
key to the left and another to the right of it. All required appliance
functions are controlled and checked with the scroll wheel and
the keys.
Note Sensor responsiveness
If you have gloves on, have wet hands or the program-
ming unit is damp, this impedes the recognition of your
touch and the execution of the action you require.
Your contractor can set the sensitivity to touch under SETTINGS/
GENERAL using the TOUCH SENSITIVITY parameter.
