OPERATION
Menu structure
www.stiebel-eltron.com WPM 3| 9

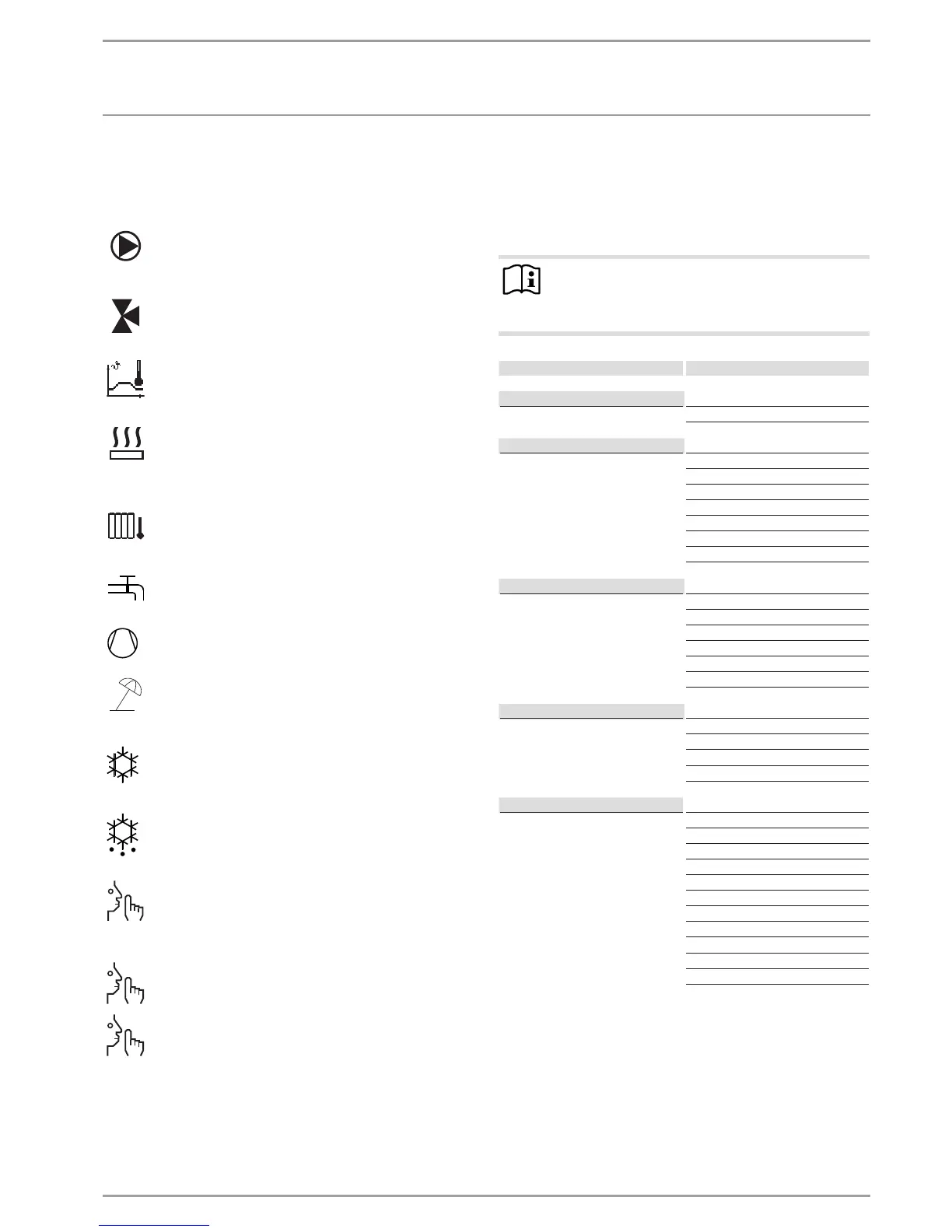

4.4 Picture symbols
At the lower edge of the display, symbols provide information
about the current operating status of the heat pump.
Heating circuit pump
The pump symbol is displayed when a heating circuit
pump is running.
Mixer circuit pump
The mixer symbol is displayed when a mixer circuit pump
is running.
Heat-up program
This symbol is displayed when the heat-up program is
running.
Electric emergency/booster heater
The electric emergency/booster heater has started up.
This occurs, for example, when the outside temperature
has fallen below the dual mode point.
Heating
The heating symbol is displayed when the heat pump is
in heating mode.
DHW heating
This symbol indicates that the heat pump is heating DHW.

Compressor
The symbol is displayed when the compressor is running.
Summer mode
The symbol is displayed when the heat pump is in sum-
mer mode.

Cooling
The symbol is displayed when the heat pump is in cooling
mode.

Defrost
The symbol is displayed when the heat pump is in defrost
mode.
Silent mode
Reduced noise mode
Silent mode is enabled. The associated time programs
determine activation of the fan or compressor throttle.
1
Silent mode 1
The fan and / or compressor run with reduced output.
2
Silent mode 2
Compressor and fan are stopped. Heat source 2 takes
over heating.
Note: This operating mode can result in higher operating
costs.
5. Menu structure
After activating the programming unit, you can use the touch
wheel to select alternative operating modes or use the menu key
to jump to a level from which you can navigate to a specific ap-
pliance parameter.
Note
Not all appliance parameters and values are displayed
in the different menus, depending on which heat pump
type is connected.
Level 1 Level 2
INFO SYSTEM
HEAT PUMP 1-6
DIAGNOSIS SYSTEM STATUS
HEAT PUMP STATUS 1-6
HEAT PUMP ANALYSIS 1-6
SYSTEM
INTERNAL CALCULATION
FAULT LIST
RELAY TEST SYSTEM
RELAY TEST HEAT PUMP 1-6
PROGRAMS HEATING PROGRAM
DHW PROGRAM
PARTY PROGRAM
HOLIDAY PROGRAM
HEAT-UP PROGRAM
SILENT PROGRAM 1
SILENT PROGRAM 2
SETTINGS GENERAL
HEATING
DHW
COOLING
SOLAR
COMMISSIONING ENTER CODE
LANGUAGE
SOURCE
HEATING
DHW
COMPRESSOR
SILENT MODE
EMERGENCY OPERATION
HEAT PUMP RESET
FAULT LIST RESET
SYSTEM RESET
SENSOR CALIBRATION
