15. ENGINE BLOCK - Overhauling internal parts

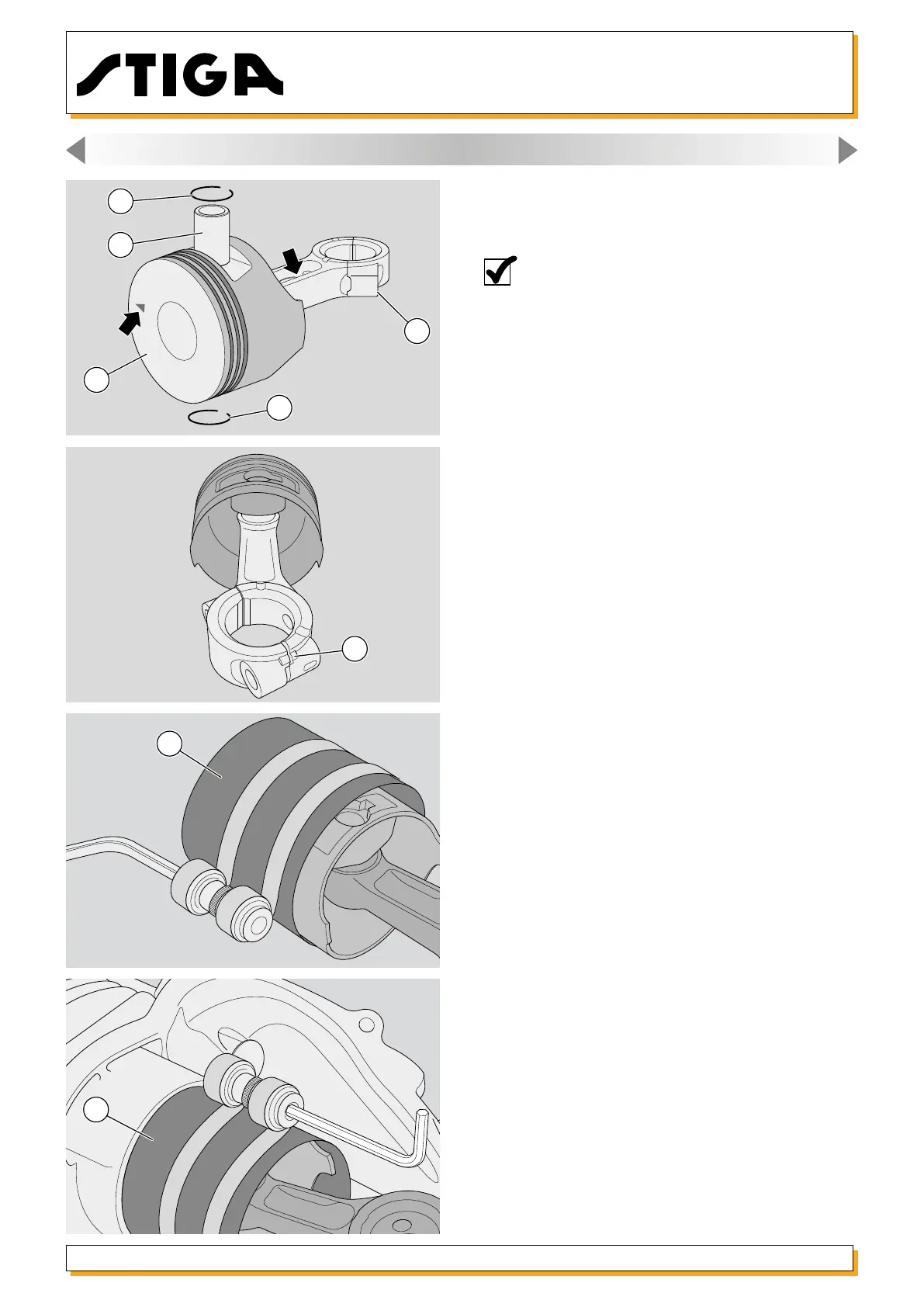

19 - Fit the connecting rod (22), gudgeon pin (32)
and clamping rings (31) to the piston (24).
NOTE - The marking on the piston must be
directed towards the intake.
The connecting rod must be mounted with
the marking (38) facing upwards.
20 - Put the piston into the ring compression tool
(39).
21 - Oil the inside of the piston liberally and insert the
piston, with the marking facing the exhaust.
32
31
24
31
22
38
39
39
