49FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

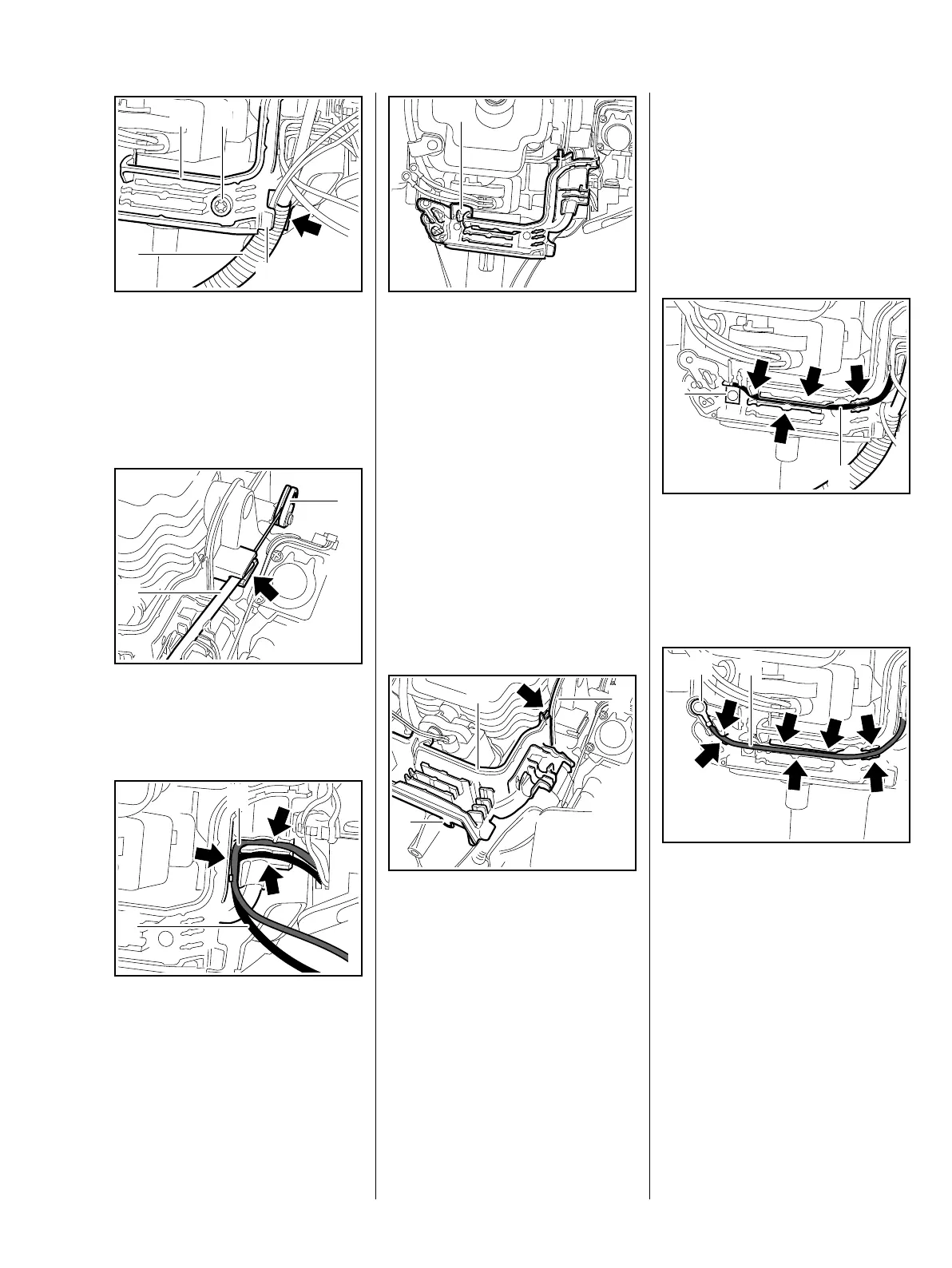

: Remove screw (1)
: Lift up cable holder (2) slightly,
pull out protective tube (3) by the
tab (4) and out of the
guide (arrow)
: Pull throttle cable (1) out of the
mount (arrow) and unhook it from
the lever (2)
: Pull red lead (1) and ground
wire (2) of the M-Tronic out of the
guides (arrows)
5904RA122 TG
1
3
2
4
1
2
5904RA123 TG5904RA248 TG
1
2
: Take out and examine the cable
holder (1), replace if necessary
– Remove short circuit wire on
control handle, control handle for
loop handle, b 6.6.4
Control handle for bike handle,
b 6.6.5
Installation
– Install short circuit wire on control
handle, control handle for loop
handle, b 6.6.4
Control handle for bike handle,
b 6.6.5
: Position the cable holder (1) on
the clutch housing so that it
engages behind the
groove (arrow) of the spacer
flange (2) and the tab (3) is
seated in the recess of the clutch
housing
1
5904RA249 TG
1
5904RA250 TG
2
3
The leads of the M-Tronic are run
along the throttle cable guide of the
cable holder under the throttle cable
in the guides. So that the total length
of the leads installed is correct, they
must be completely routed in the
cable holder and secured in the
guides before installation of the
throttle cable.
: Place ground wire (2) with
connector tag (1) in the recess
and, starting at the recess, press
into the guides (arrows) as far as
it will go
: Press red lead (2) of the M-Tronic
with the lug (1) into the mount
and, starting at the mount, press
into the guides (arrows) as far as
it will go
1
5904RA251 TG
2
1
5904RA252 TG
2
