14 Storing

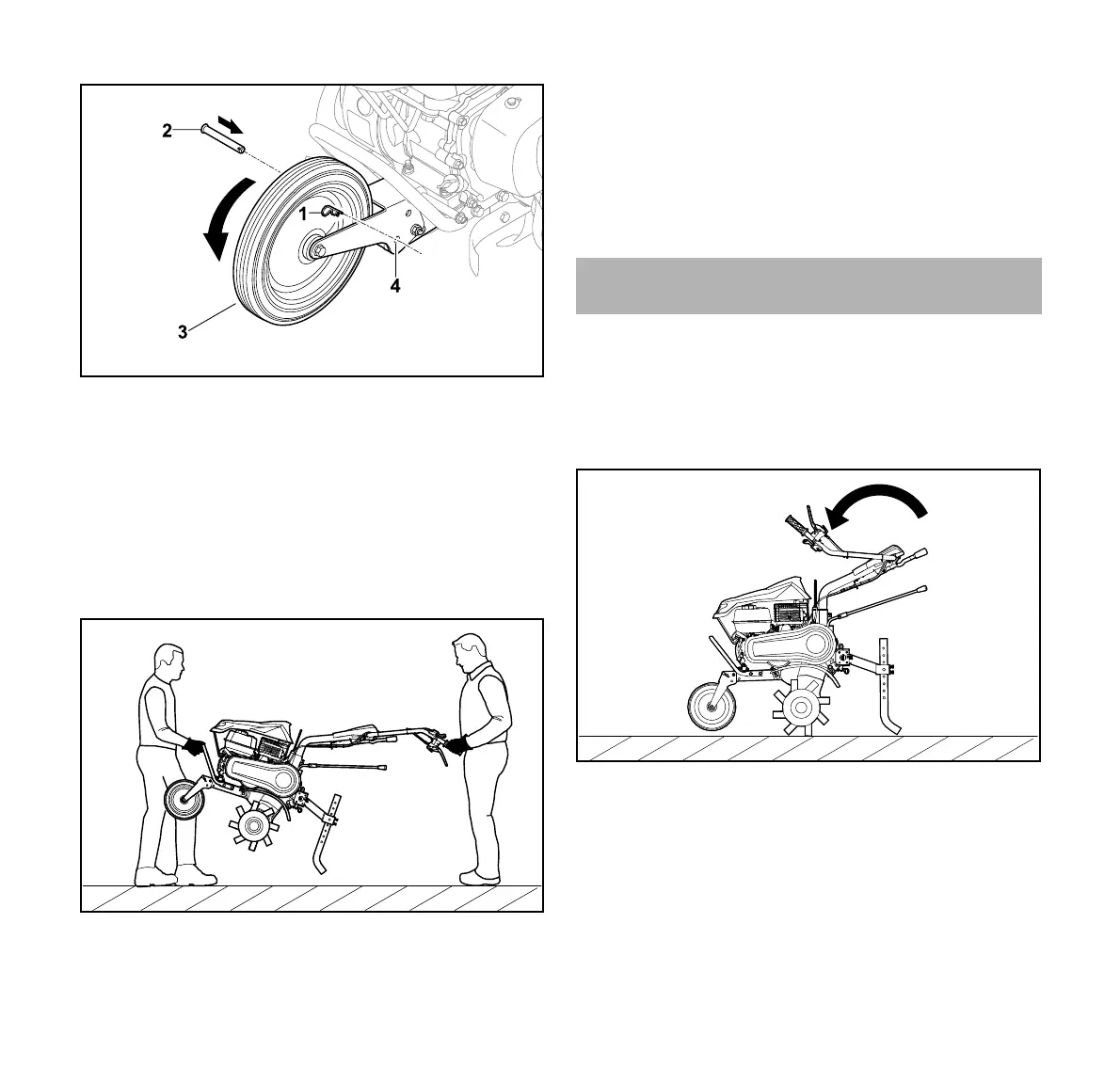

► Fold front wheel (3) downwards so bores (4) align.
► Insert pin (2) through bores (4).
► Push retaining pin (1) through the bore in pin (2).
Pin (2) is secured and front wheel (3) is in the transport
position.
► If the tiller is being transported using the front wheel:
► Place the front wheel in the transport position.
► Hold the tiller by both handles and lift so it is resting on
the front wheel.
► Push or pull the tiller slowly.
► If the tiller is being carried:
► One person holds the front transport handle using both
hands and another person holds the handles using both
hands.
► The tiller must be lifted and carried by two people.
► Wear work gloves made from resistant material.
► If the tiller is being transported in a vehicle:
► Secure the tiller so it does not tip over and cannot move.
14.1 Storing the Tiller
► Stop the engine.
► Allow the tiller to cool down.
► Place the front wheel in the transport position.
► Fasten blade spur at fifth bore.
► Fold down the upper handlebar.
► Store the tiller in accordance with the following conditions:
– The tiller is on a level surface resting on the front wheel,
hoes and blade spur.
– The tiller is out of reach of children.
– The tiller is clean and dry.
If the tiller is to be stored for more than three months:
