119MS 201, MS 201 C, MS 201 T, MS 201 TC
Installing

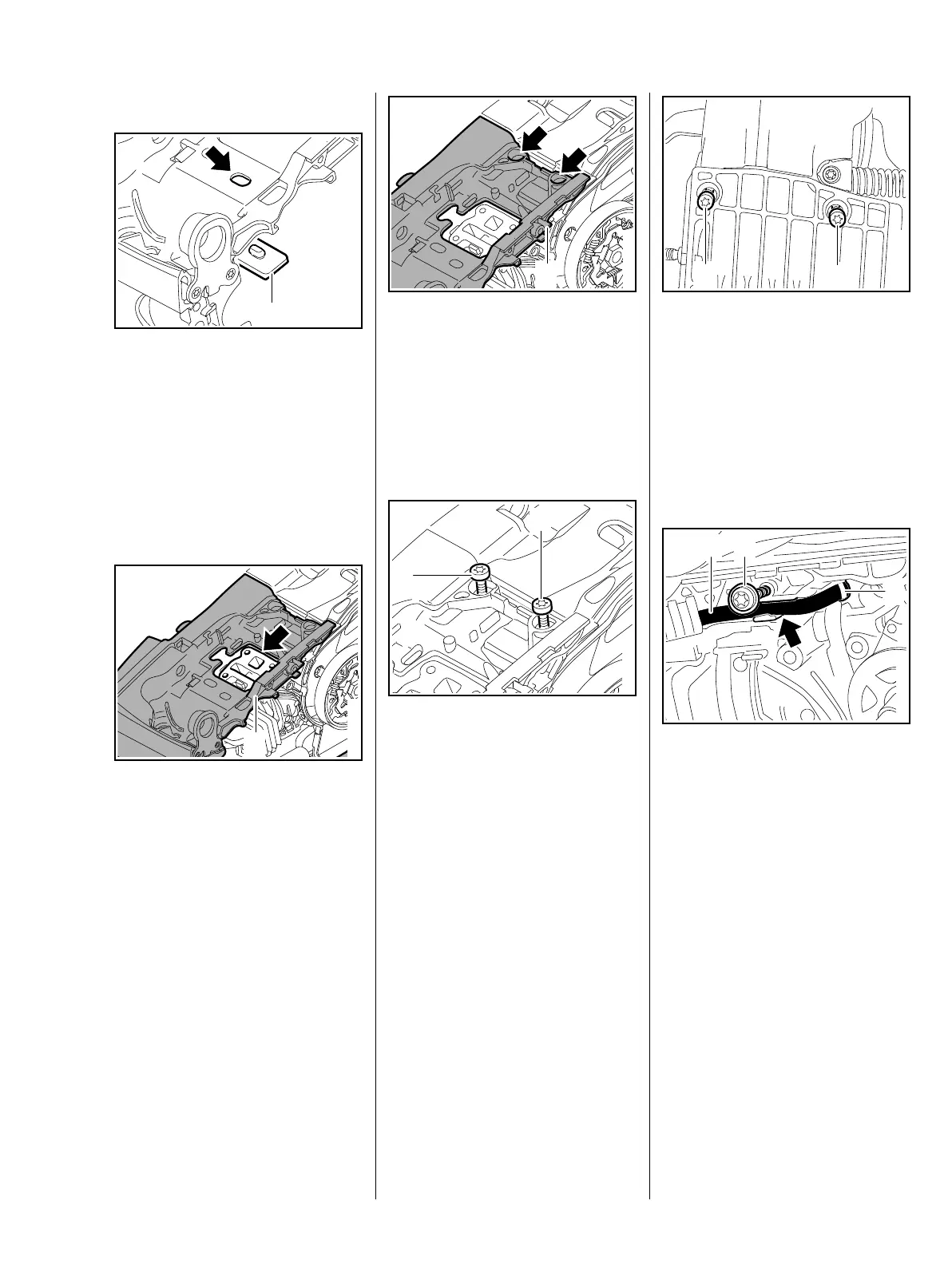

: Push the clamping block (1) out
of its seat (arrow), inspect it and
replace if necessary.
– Coat the clamping block with
STIHL press fluid, b 14
– Reassemble in the reverse
sequence.
: Line up the tank housing (1) so
that opening (arrow) is above the
intake port.
7013RA410 TG
1
7013RA411 TG
1
: Push the tank housing (1) into
position until it snaps into place
on both sides of the crankcase
and is in alignment at the bores
(arrows).
Make sure the clamping block is not
pushed out during this process.
: Fit the screws (1).
7013RA412 TG
1
7013RA413 TG
1
1
– Turn the machine over.
: Fit the screws (1).
– Check that tank housing is
properly seated, line it up if
necessary and then tighten down
the screws (top and underside)
firmly.
: Push the ignition lead (1) into the
guide (arrow) so that the mark (2)
is against the crankcase.
: Insert and tighten down the
screw (3) firmly.
– Reassemble all other parts in the
reverse sequence.
7013RA414 TG
1
1
7013RA475 TG
2
31
