21MS 201, MS 201 C, MS 201 T, MS 201 TC
Installing

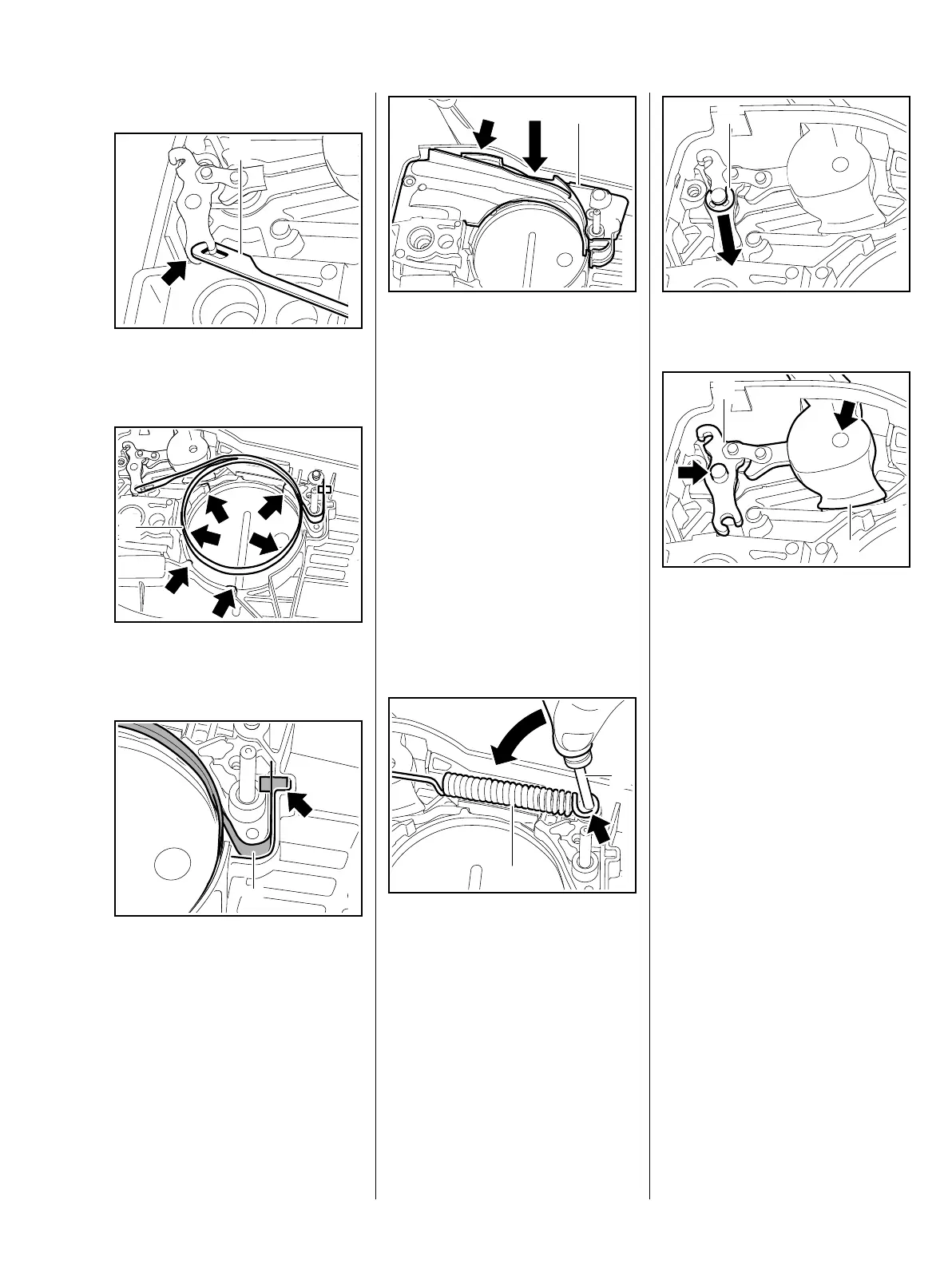

: Attach the brake band (1) to the
brake lever (arrow).
: Push the brake band (1) into its
guides (arrows).
: Push the brake band (1) into its
seat (arrow) as far as stop.
7013RA012 TG
1
7013RA013 TG
1
7013RA014 TG
1
: Push cover (1) into its seat until it
snaps into position (arrow).
– Fit the screws and tighten them
down firmly.
– Reassemble all other parts in the
reverse sequence.
– Check operation
5.3 Brake Lever
– Troubleshooting, b 3.2
– Remove the brake band, b 5.2
– Engage the chain brake.
The brake spring is now relaxed.
: Use the assembly tool
1117 890 0900 to disconnect the
brake spring (1) from the anchor
pin (arrow).
– Remove the brake spring from
the brake lever.
7013RA015 TG
1
7013RA016 TG
1
2
: Remove the retaining ring (1).
: Pull the hand guard (1) and brake
lever (2) off the pivot pins
(arrows) together.
7013RA017 TG
1
1
7013RA018 TG
2
