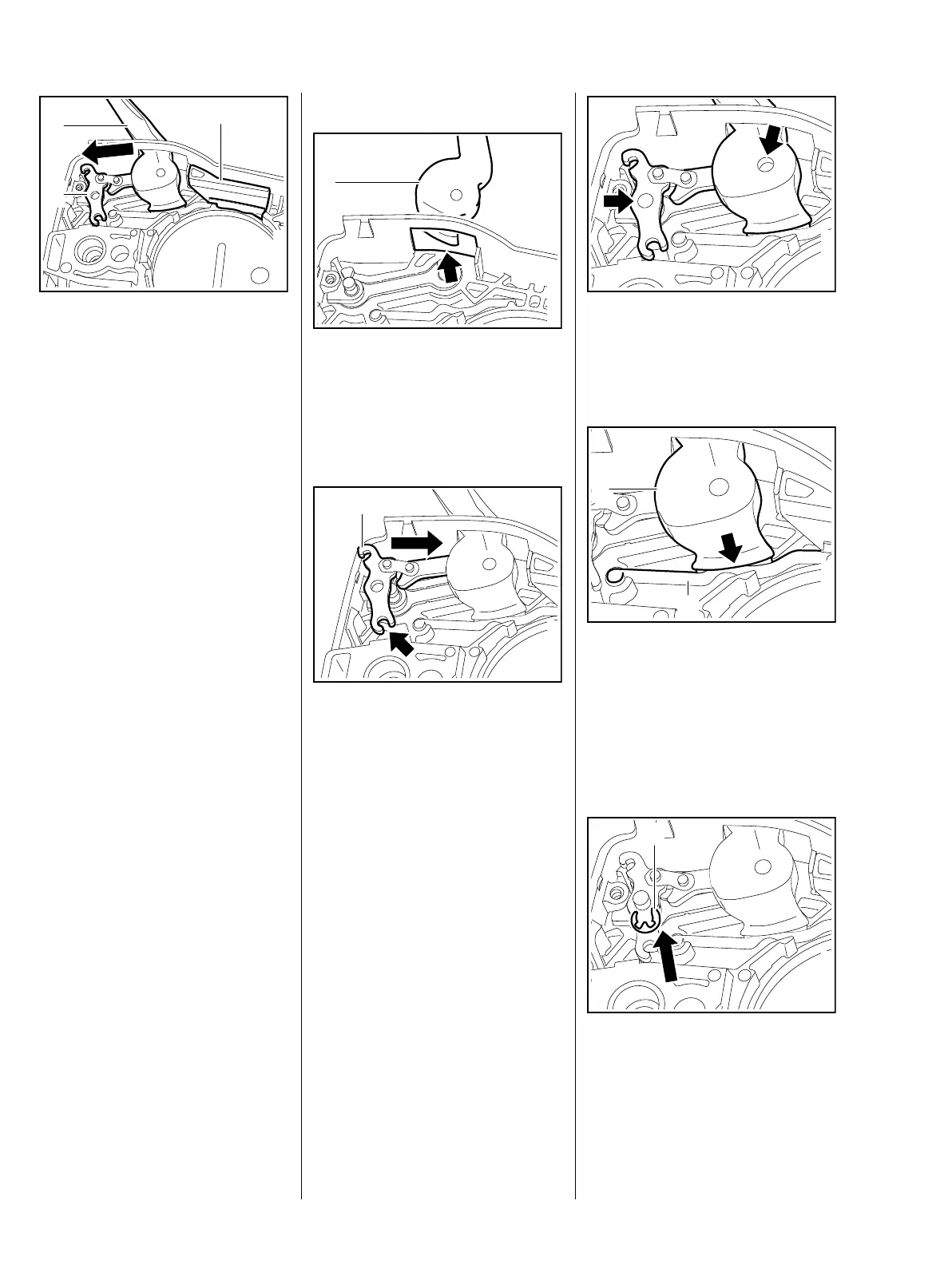

22 MS 201, MS 201 C, MS 201 T, MS 201 TC
: Pull the brake lever (2) out of the
hand guard (1).
Pull the hand guard out of the
opening.
: Check the stop (3) and replace if
necessary
Inspect the brake lever and hand
guard and replace if necessary.
When installing the stop, make sure
it is properly positioned in the
sprocket cover guide and lies flat.
Check the pivot pin, replace if
necessary, b 5.5
Inspect the flat spring and
replace if necessary, b 5.4
Clean all disassembled parts,
b 14
7013RA019 TG
2
1
3
Installing
Lubricate the pivot pins with
STIHL lubricant, b 14
: Push the hand guard (1) through
the opening (arrow).
Line up the brake lever
– the forked opening (arrow)
must face the brake band.
: Push the brake lever (1) into the
hand guard and line up the holes.
7013RA020 TG
1
7013RA021 TG
1
: Lift the bearing boss of the hand
guard and the brake lever a little
and position them over the pivot
pins (arrows).
: Ease the cam (arrow) of the hand
guard (1) past the flat spring (2).
Push the hand guard and brake
lever onto the pivot pins, moving
the hand guard to and fro at the
same time.
: Fit the E-clip (1).
7013RA022 TG7013RA023 TG
2
1
7013RA512 TG
1
