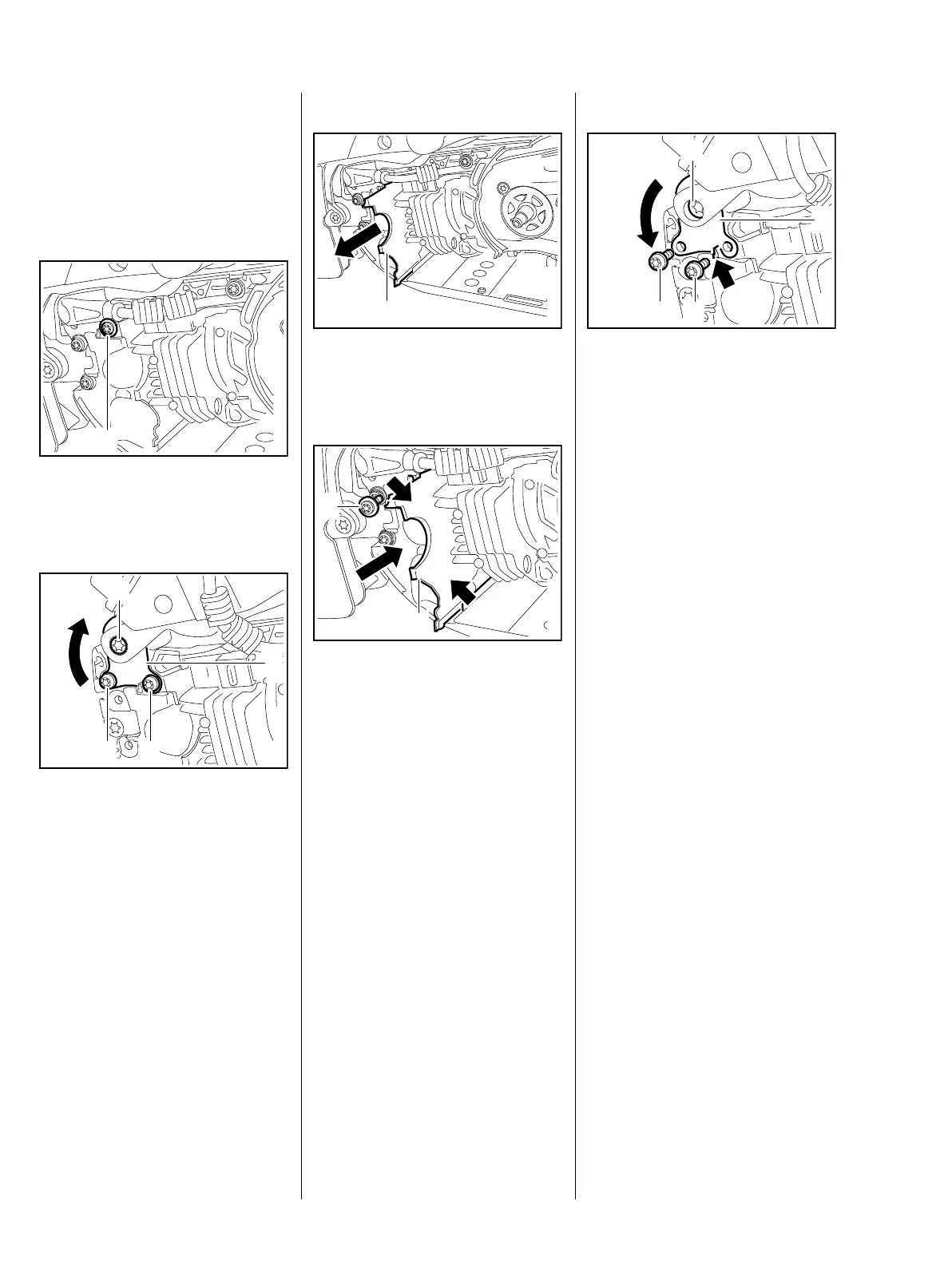

28 MS 201, MS 201 C, MS 201 T, MS 201 TC
6.1.1 Insulating Plate
Remove the muffler, b 6.1
Pull off the boot and unscrew the
spark plug.
: Take out the screw (1).
MS 201 T
: Take out the screws (1) and
loosen screw (2).
: Swing annular buffer (3)
clockwise out of the way.
7013RA049 TG
1
7013RA050 TG
11
2
3
All models
: Pull out the insulating plate (1).
Installing
Line up the insulating plate so
that the cutout for the spark plug
matches the recess in the tank
housing.
: Position the insulating plate (1) in
the guides (arrows) and push it
home as far as stop.
: Insert and tighten down the
screw (2) firmly.
7013RA051 TG
1
7013RA052 TG
1
2
MS 201 T
: Swing the annular buffer (1)
counterclockwise and position it
so that the lug (arrow) engages
the notch.
: Insert and tighten down the
screws (2) firmly.
: Tighten down the screw (3) firmly
Reassemble all other parts in the
reverse sequence.
