64 MS 201, MS 201 C, MS 201 T, MS 201 TC

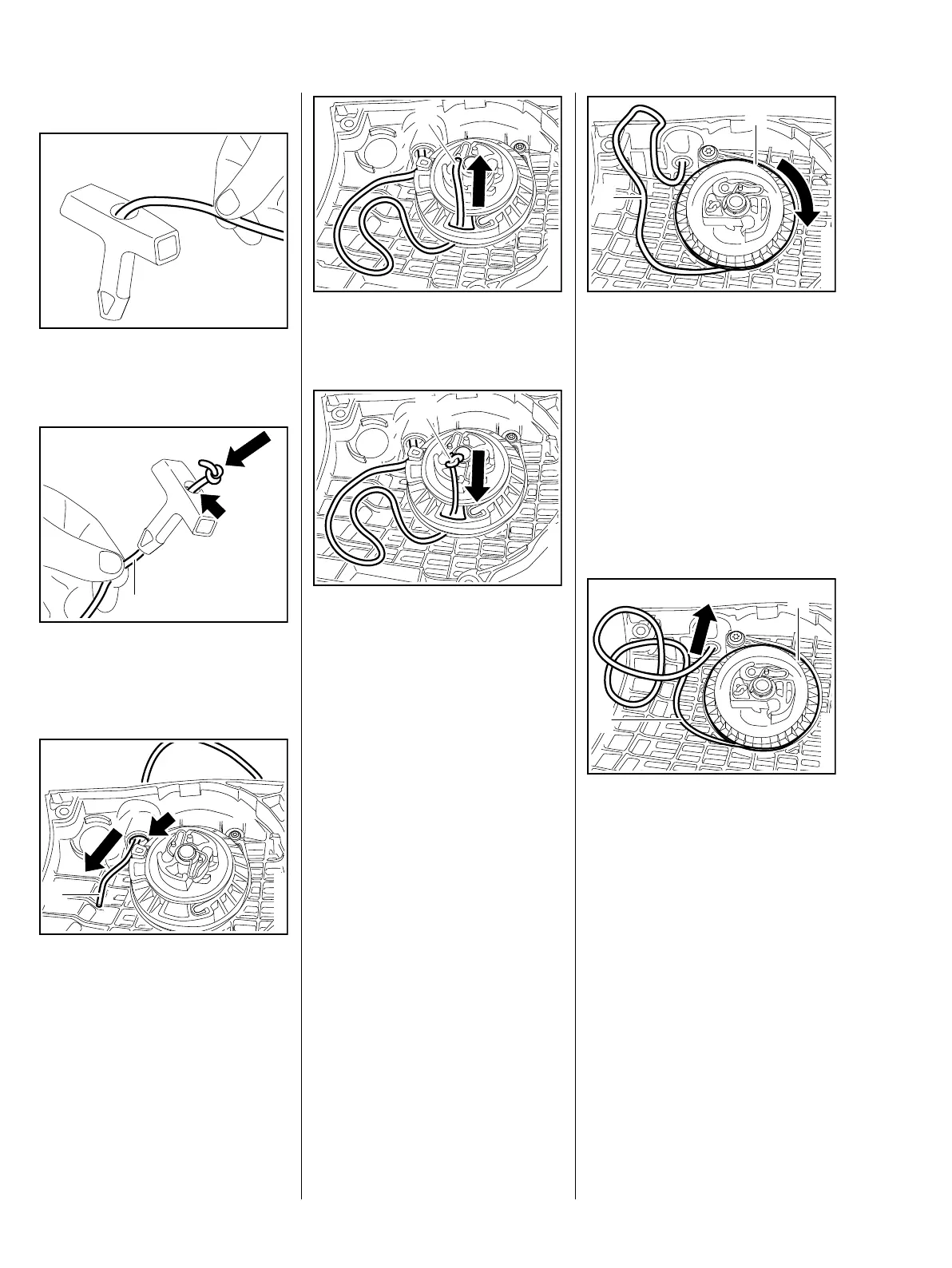

Machines with ErgoStart grip
: Thread the rope through the top
of the starter grip.
: Pull the rope (1) into the starter
grip until the knot is properly
seated in the grip (small arrow).
: Thread the starter rope (1)
through the guide bushing (small
arrow).
4903RA131 TG7013RA415 TG
1
7013RA524 TG
1
: Thread the starter rope (1)
through the side of the rope rotor.
: Secure end of starter rope (1)
with a simple overhand knot and
pull it into the rotor until the knot
is seated in the recess (arrow).
Tension the rewind spring, b 8.6
Reassemble all other parts in the
reverse sequence.
8.6 Tensioning the Rewind
Spring
Remove the fan housing and the
segment, b 8.2
The pawl(s) and spring clip must be
installed.
7013RA525 TG
1
7013RA526 TG
1
: Pull out a short length of starter
rope (1).
: Use the starter rope (1) to rotate
the rope rotor (2) six turns
clockwise.
The rewind spring is now tensioned.
Hold the rope rotor steady since it
will otherwise spin back and may
damage the rewind spring.
: Hold the rope rotor (1) steady.
: Pull out the twisted rope (2) with
the starter grip and straighten it
out.
7013RA171 TG
1
2
7013RA172 TG
2
1
