63MS 201, MS 201 C, MS 201 T, MS 201 TC
Installing

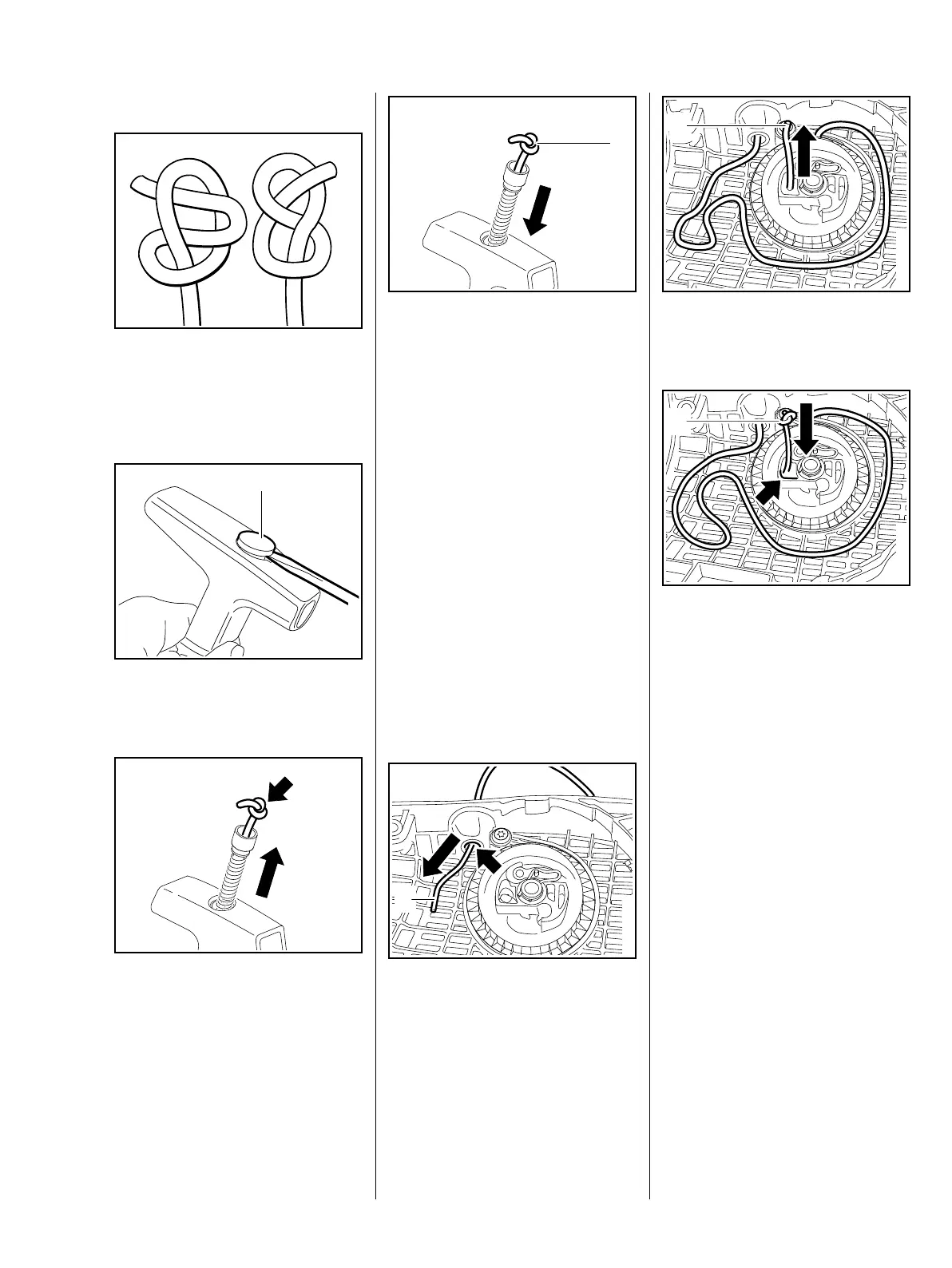

: Tie special knot shown in end of
rope.
Machines with ElastoStart grip
: Use a suitable tool to pry the cap
(1) out of the starter grip.
: Pull the sleeve, washers, spring
and remaining rope (arrow) out of
the grip.
– Check individual parts, replace if
necessary
Do not shorten the starter rope.
165RA227 TG
165RA230 TG
1
165RA231 TG
– Thread the new starter rope
through the sleeve.
– Tie a simple overhand knot in the
end of the new rope.
– Fit the washers and spring.
: Pull the starter rope with sleeve,
spring and washers into the
starter grip (1).
Make sure the washers and spring
remain on the sleeve while the rope
its being pulled into the grip.
– Position cap so that its lug
engages the slot in the starter
grip.
– Press the cap into the starter grip.
: Thread the starter rope (1)
through the guide bushing (small
arrow).
165RA233 TG
1
7013RA168 TG
1
: Thread the starter rope (1)
through the side of the rope rotor.
: Secure end of starter rope (1)
with a simple overhand knot and
pull it into the rotor until the knot
is seated in the recess (arrow).
– Tension the rewind spring, b 8.6
– Reassemble all other parts in the
reverse sequence.
7013RA169 TG
1
7013RA170 TG
1
