42 MS 201, MS 201 C, MS 201 T, MS 201 TC
7. Ignition System
Exercise extreme caution when
troubleshooting and carrying out
maintenance or repair work on the
ignition system. The high voltages
which occur can cause serious or
fatal accidents.
Troubleshooting on the ignition
system should always begin at the
spark plug, b 3.5
– Remove the fan housing, b 8.2
The electronic (breakerless) ignition
system basically consists of an
ignition module (1) and flywheel (2).
The ignition module accommodates
all the components required to
control ignition timing. There are
two electrical connections on the
coil body:
1. High voltage output with
fixed ignition lead.
2. Connector tag for the
short circuit wire.
Testing in the workshop is limited to
a spark test. A new ignition module
must be installed if no ignition spark
is obtained (after checking that the
wiring and switch shaft are in good
condition).

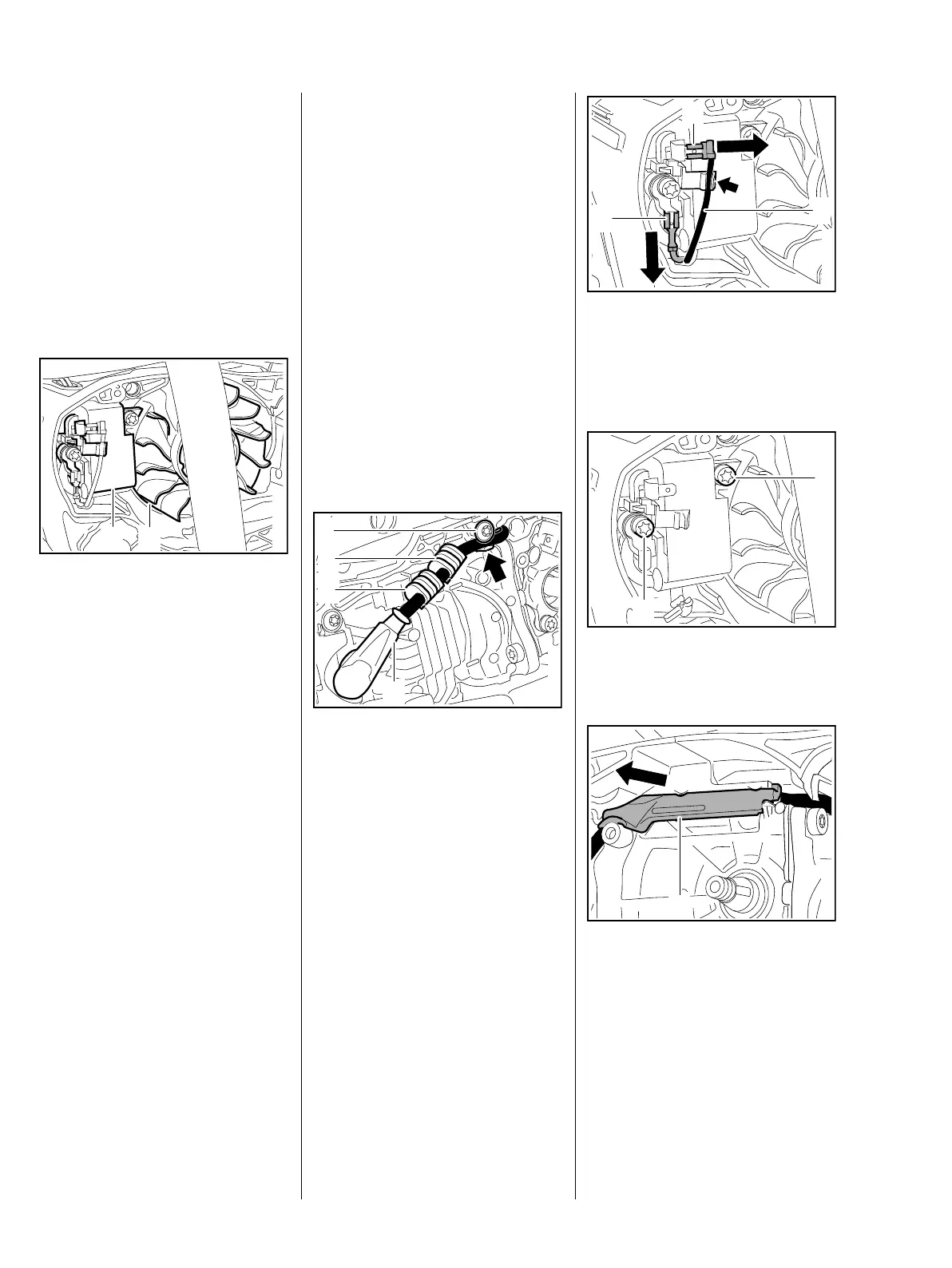

7013RA360 TG
2
1
7.1 Ignition Timing
Ignition timing is fixed and cannot
be adjusted during repair work.
Since there is no mechanical wear
in these systems, ignition timing
cannot get out of adjustment during
operation.
7.2 Ignition Module
– Remove the fan housing, b 8.2
– Remove the clutch drum, b 4.2
– Remove the oil pump cover,
b 11.4
: Take out the screw (1) and pull
the ignition lead out of the guide
(arrow).
: Remove the spark plug boot (2)
and retainers (3), b 7.4
– Remove the flywheel, b 7.5
7013RA361 TG
2
1
3
3
: Pull the short circuit wire (1) out
of the guide (arrow).
: Disconnect terminals (2) and (3).
: Take out the screws (1) with
washers.
: Remove the cover (1).
7013RA362 TG
1
2
3
7013RA363 TG
1
1
7013RA364 TG
1
